LED lights - Machine and bench lights
EM500122
| amount | price | discount |
|---|---|---|
| 1 | 471,80 € | – |
| 5 | 457,65 € | 3% / 14,15 € |
| 10 | 448,21 € | 5% / 23,59 € |
| 20 | 434,06 € | 8% / 37,74 € |
| 50 | 415,18 € | 12% / 56,62 € |
On demand

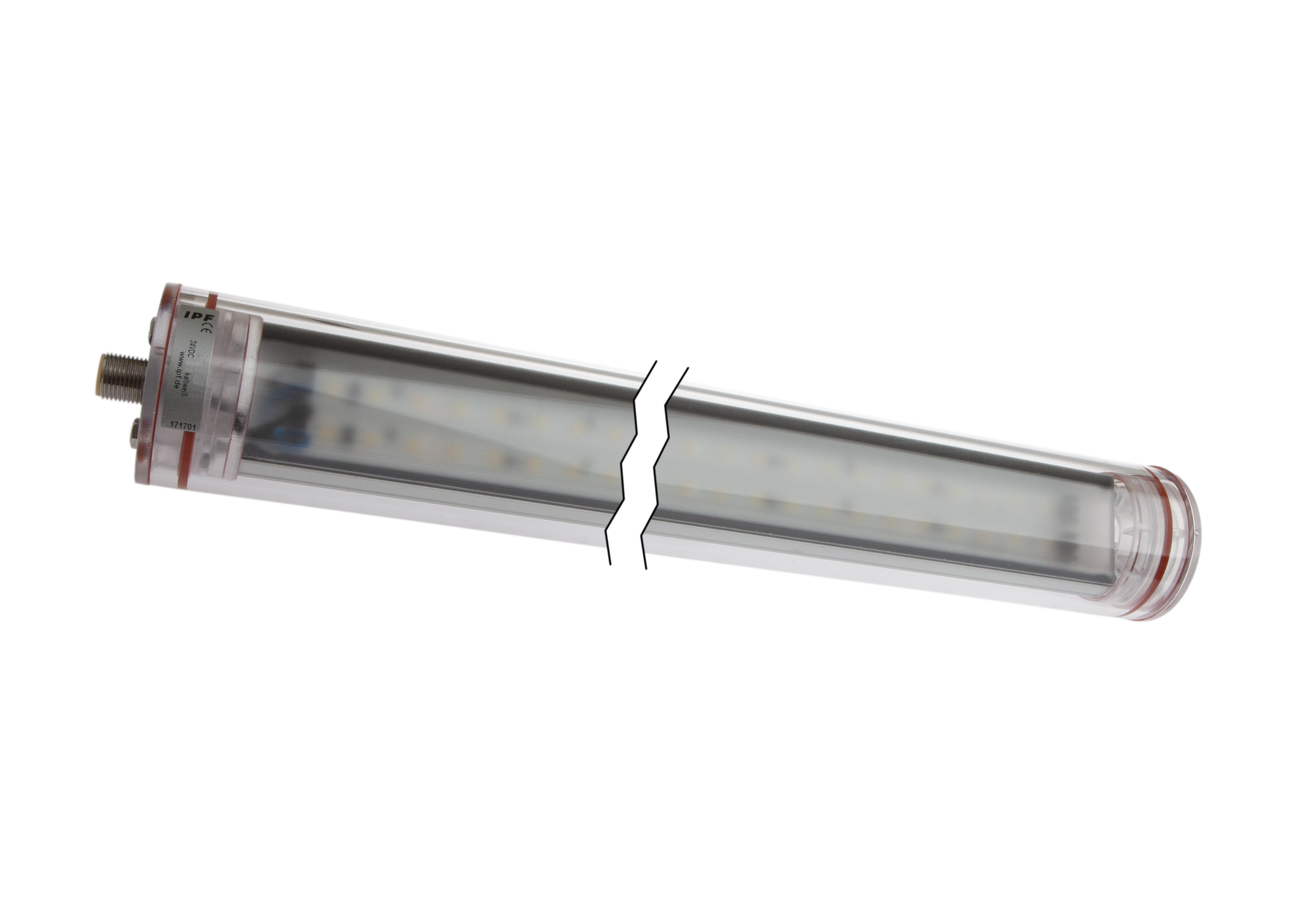

LED machine light, Ø50mm 1065long, white light, 48W, 5000lx, 5200K, 22-26V diagnostic coverage, -30-50°C, M12 connector 4-pin, IP67, aluminum+plastic PC
including 2x Cable strap
Compare
LED lights - Machine and bench lights
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 2,000mA
- Power
- 48W
- Luminous flux
- 4,400lm
- Number of pins
- 4
- Protection class
- III
- Operating voltage (DC)
- 21.6 - 26.4V
Mechanical properties
- Design
- Pipe
- Length
- 1,065mm
- Degree of protection (IP)
- IP67
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polycarbonate
- Diameter
- 50mm
Optical properties
- Illuminance at 500mm distance
- 5,000lx
- Illumination in the center (distance 1 m)
- 1,260lx
- Color temperature
- 5,200K
- Light source
- White light
- Angle of beam spread
- 120°
Other properties
- Risk group
- 0
- Ambient temperature
- -30 - 50°C
- Harsh environmental conditions
- Yes
You can find accessories for EM500122
in these product groups:
Cable sockets M12 3-wire
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Fixing material for lights Ø50
Brightness module
Power supply 24V DC / 2 – 10A
Connection cable IP69k M12 4-wire
Datasheets
-
pdfAutomatic individual data sheetPDF-file, 240 KB
-
pdfCatalog data sheetPDF-file, 6.3 MB
-
pdfAutomatic data sheetPDF-file, 409 KB
Drawings
-

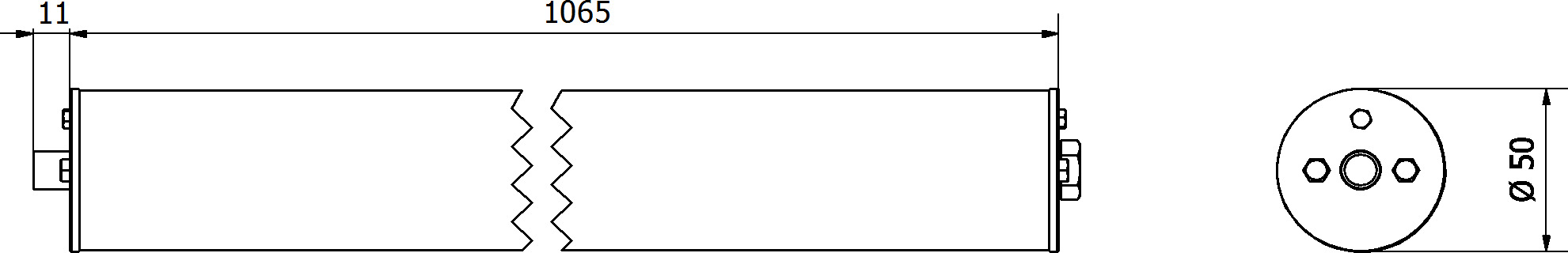

jpgBlueprintJPG-file, 62 KB
-
dwg2DDWG-file, 291 KB
-
stp3DSTP-file, 2.4 MB
-
pngWiring diagram - internetPNG-file, 5.6 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 80 x 80 x 1,175mm |
| gross weight | 1,859g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
