PWM modules - PWM module

VY000007

List price

129,80 €

amount	price	discount
1	129,80 €	–
5	125,91 €	3% / 3,89 €
10	123,31 €	5% / 6,49 €
20	119,42 €	8% / 10,38 €
50	114,22 €	12% / 15,58 €

Available

LED brightness module, 55x120x80mm, 4A, 24V DC, M12-connector, IP40, plastic

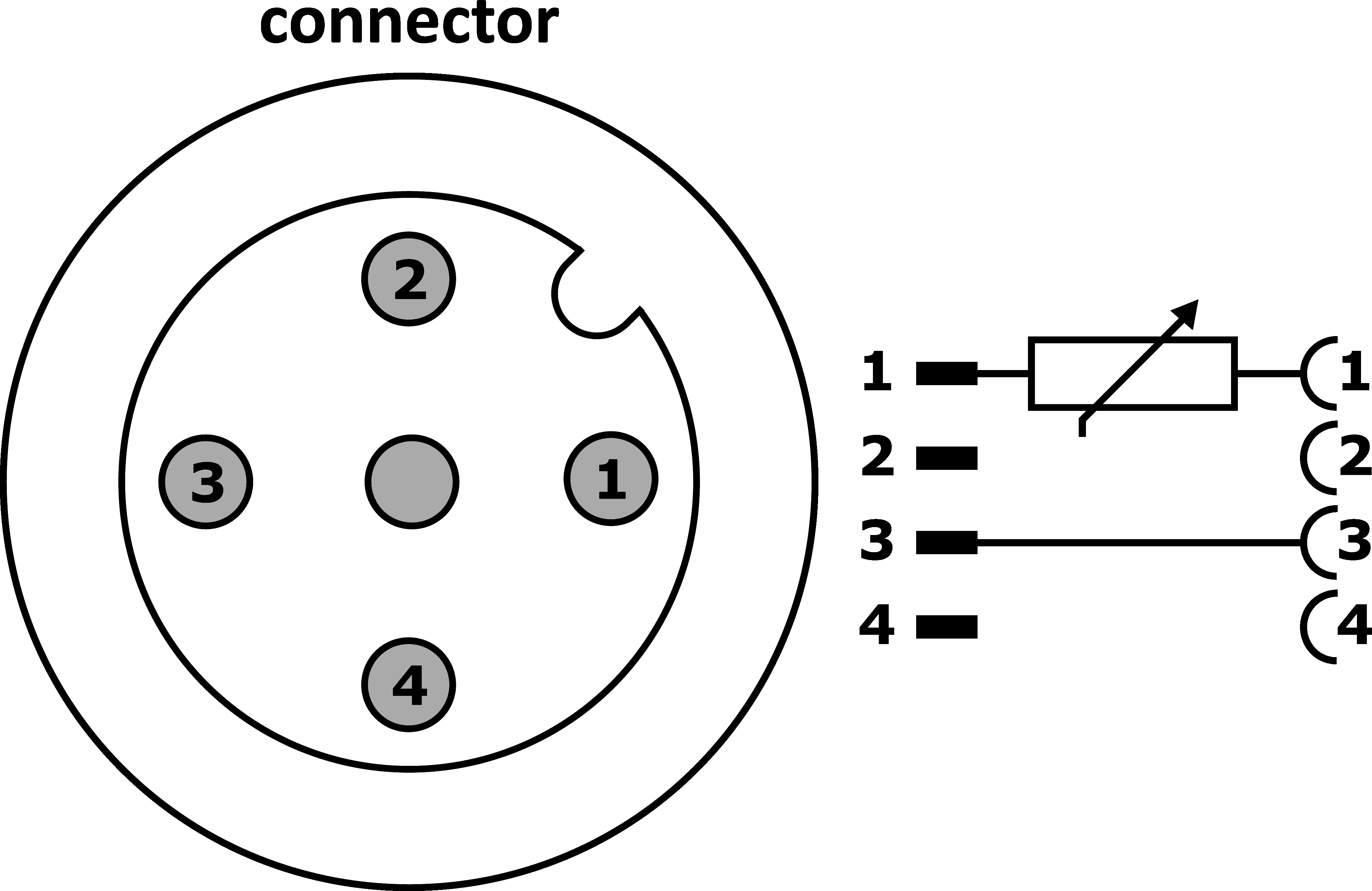

circuit diagram

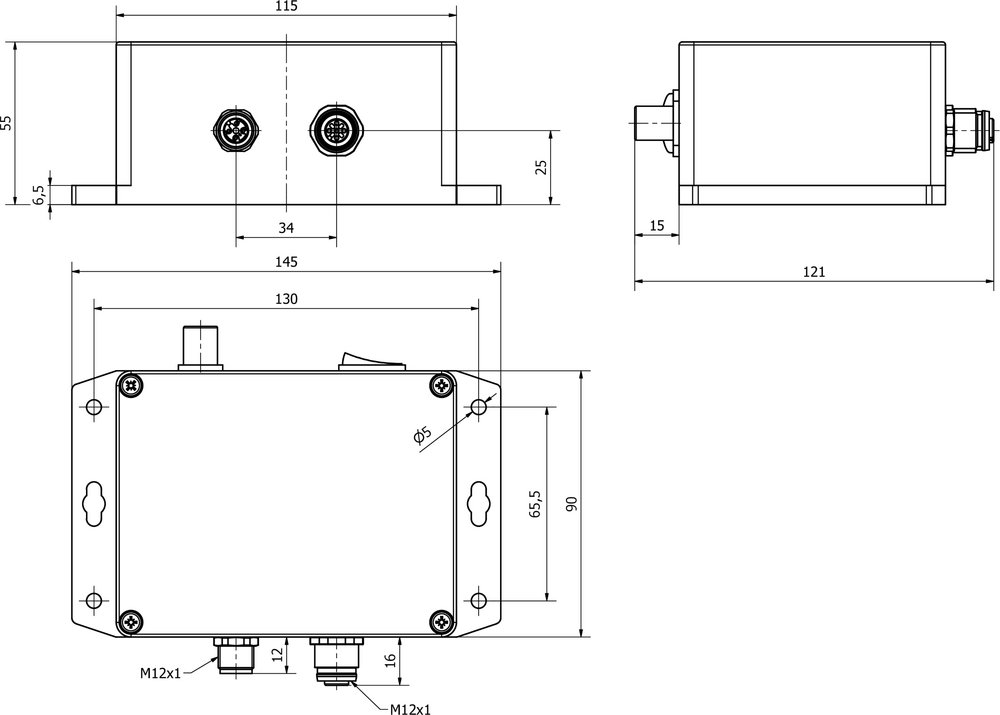

dimensional drawing

3D model

Compare

PWM modules - PWM module

The LED brightness module is used to limit the dazzling effect of particularly bright machine or workplace lights. Prerequisite for the use of the brightness module is the connection of the operating voltage via PIN 1 of the plug-in connector.

Electrical properties

Type of electrical connection: Connector M12

Rated switching current: 4,000mA

Short-circuit protection: No

No-load current: 10mA

Power: 96W

Voltage type for actuation: DC

Reverse polarity protection: Yes

Operating voltage (DC): 24V

Mechanical properties

Width: 120.8mm

Height: 55mm

Length: 145mm

Mounting method: Screw mounting

Degree of protection (IP): IP40

Housing material: Plastic PC

Other properties

Ambient temperature: 0 - 40°C

: LED brightness module

Print data
