LED lights - Signal lights

EZ180420

List price

92,40 €

amount	price	discount
1	92,40 €	–
5	89,63 €	3% / 2,77 €
10	87,78 €	5% / 4,62 €
20	85,01 €	8% / 7,39 €
50	81,31 €	12% / 11,09 €

Available

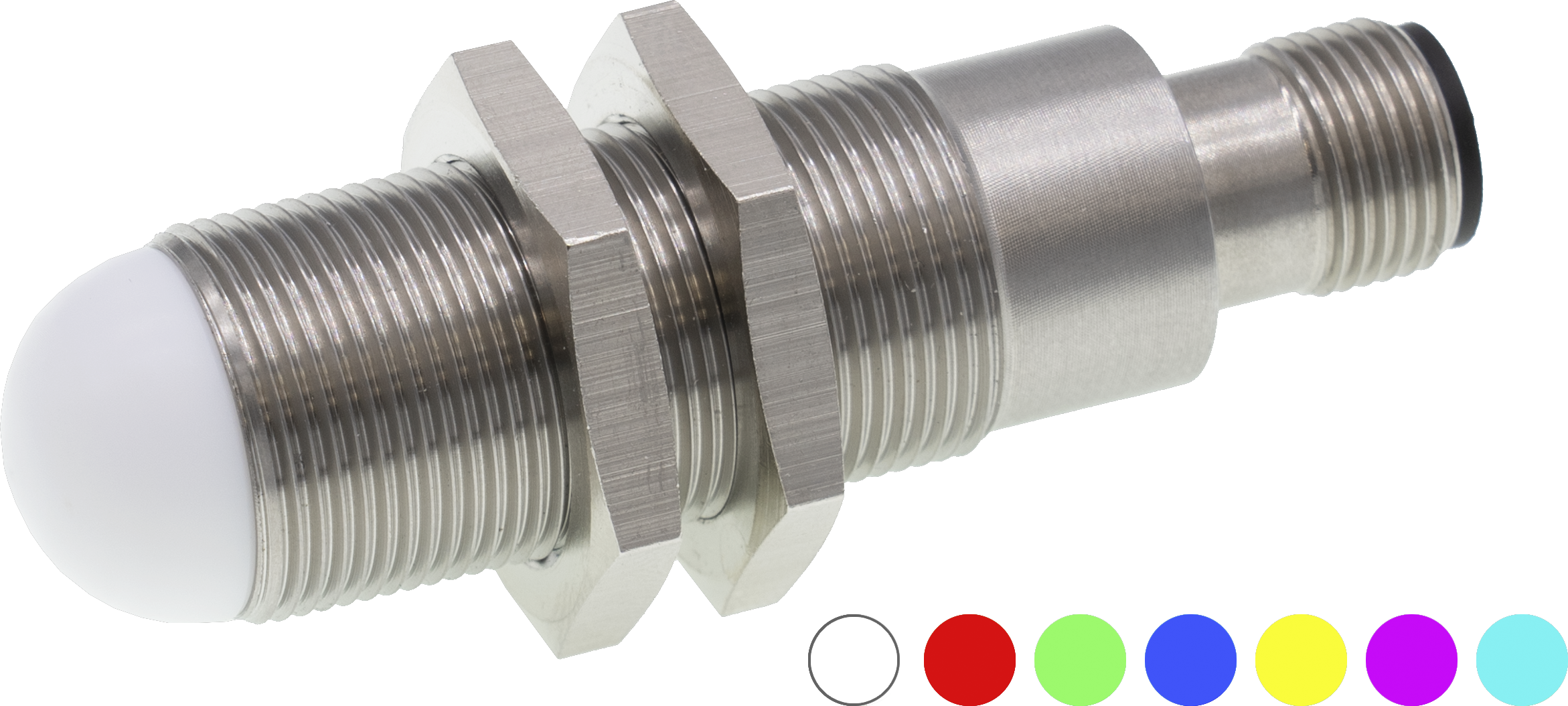

LED signal light, M18x1 69lang, multicolor LED, 12-30V DC, M12-connector 4-pin, IP65, stainl. steel

including Nut

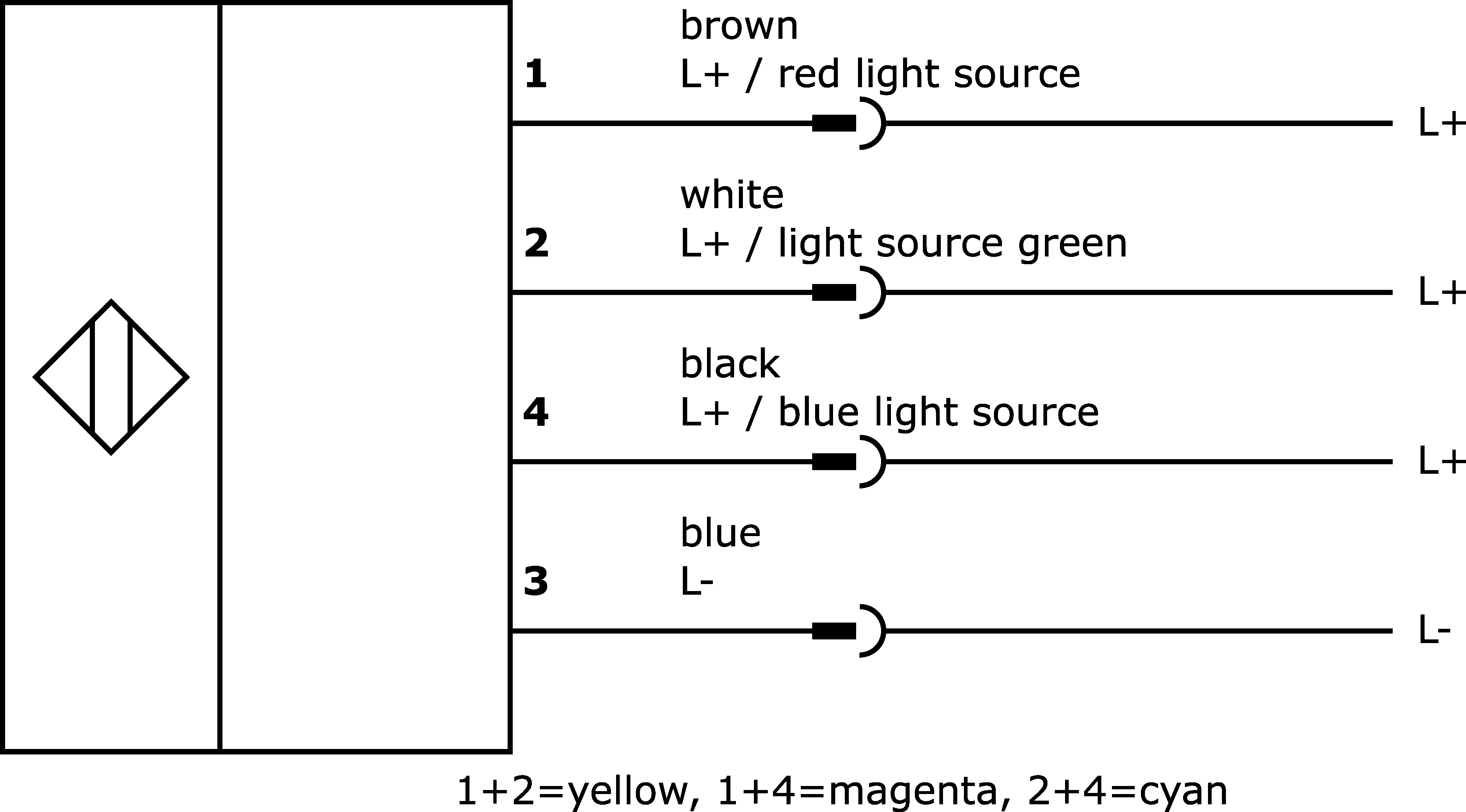

circuit diagram

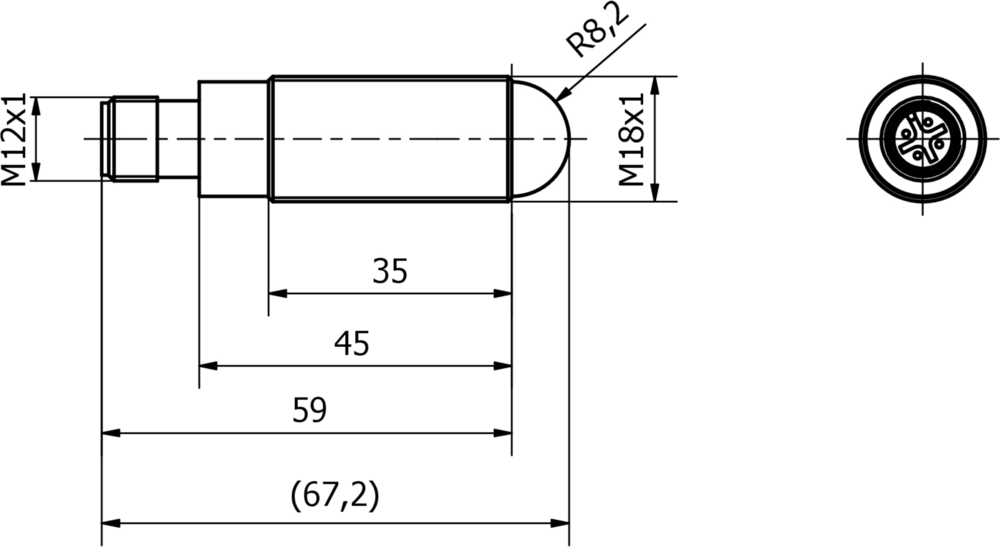

dimensional drawing

3D model

Compare

LED lights - Signal lights

Signal lights, also described as indicator lights, are visual indicators that convey information via the status of devices or systems. They can signal certain messages or warnings using different colors and patterns such as flashing or lighting up. A high degree of protection and stainless steel housing ensure safe signal transducers.

Electrical properties

Type of electrical connection: Connector M12

Number of pins: 4

Protection class: III

Operating voltage

Electrical connection

Mechanical properties

Design: Cylinder, screw-thread

Thread pitch: 1mm

Length: 69mm

Degree of protection (IP): IP65

Front screen scattering behavior: diffuse

Housing material: Stainless steel 1.4305

Front screen material: Polymethyl methacrylate

Thread dimension: M18

Diameter: 18mm

dimensions

Optical properties

Risk group: 0

Number of LEDs: 3

Lamp: LED

Light source: Multi-colored LED

Signal color: Blue, Cyan, Yellow, Green, Magenta, Red, White

Other properties

Ambient temperature: -20 - 50°C
