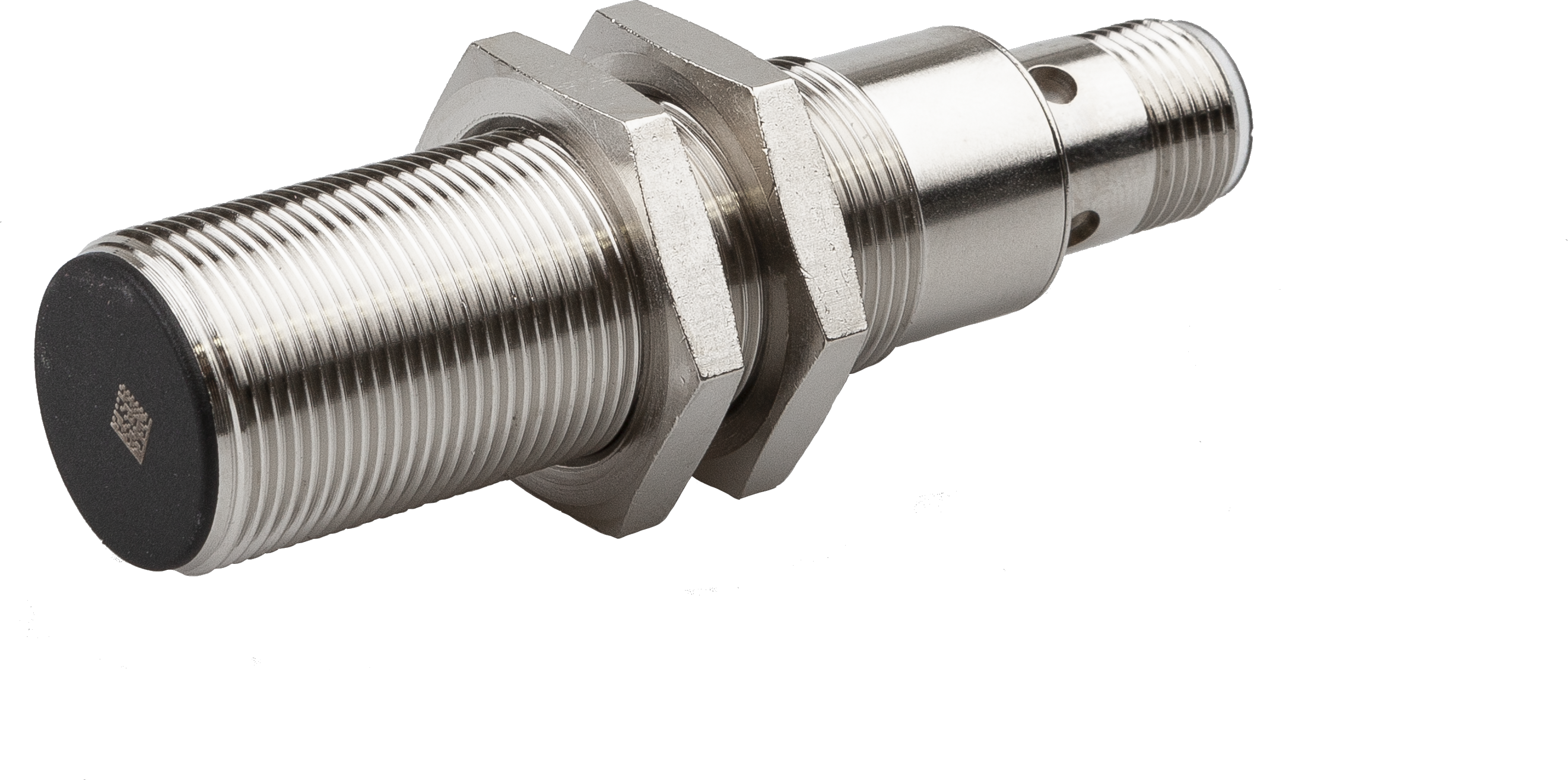

sensor inductive, M18x1 72long, Flush, Sn: 5, 10-30V DC, PNP NO, Connector M12 3pin, IP67, Brass Nickel-plated
including Nut
Compare
Inductive sensors - Norm switching distance
The IB180121 inductive sensor is manufactured in accordance with EN 60947-5-2 and is suitable for standard applications. It recognizes conductive metals at short distances and is not affected by other materials, making it ideal for use in soiling and harsh environments. The sensor is set at the factory with a norm measuring plate whose edge length corresponds to the diameter of the sensor surface.
In accordance with the standard, the IB180121 flush sensor has a switching distance of 5mm. The housing of the sensor is made of brass and has an M18x1mm thread. The electrical connection is made via a 3-pin M12 plug connector.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Relative hysteresis
- 15%
- Correction factor (aluminum)
- 0.3
- Correction factor (copper)
- 0.2
- Correction factor (brass)
- 0.4
- Correction factor (St37)
- 1
- Correction factor (stainl. steel)
- 0.7
- No-load current
- 15mA
- Number of pins
- 3
- Relative repeat accuracy
- 10%
- Switching distance
- 5mm
- Switching frequency
- 500Hz
- Voltage drop
- 2V
- Display
- LED display
- Short circuit protection, Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Thread length
- 45mm
- Thread pitch
- 1mm
- Cable infeed
- axial
- Length
- 71.5mm
- Mechanical mounting condition for sensor
- flush
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PA6.6)
- Housing material
- Brass
- Thread dimension
- M18

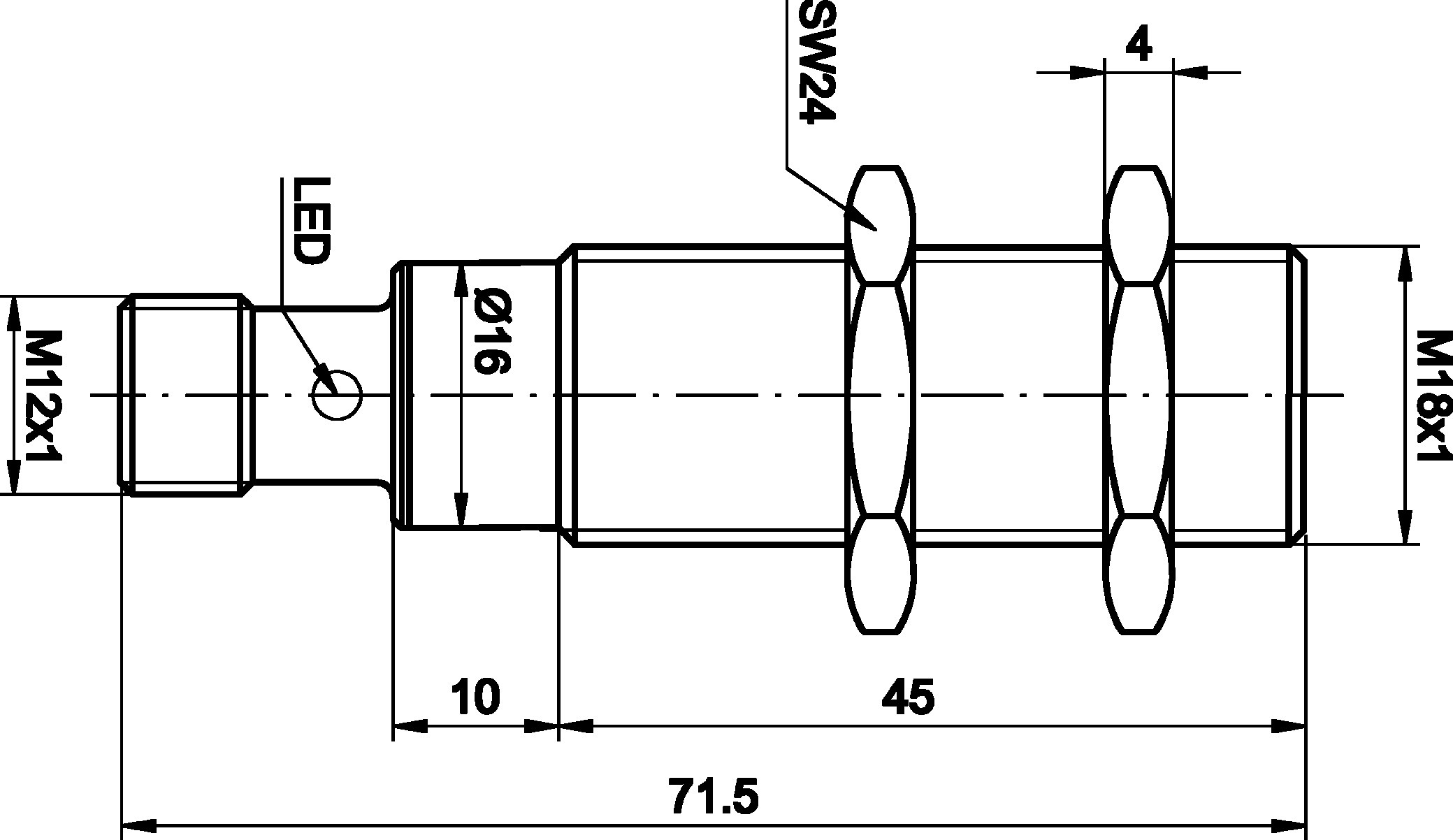

- dimensions
Other properties
- Ambient temperature
- -25 - 70°C
- Reference medium / object
- Standard measuring plate FE360 18x18x1mm
