Inductive sensors - Chip resistant
IO30012F
| amount | price | discount |
|---|---|---|
| 1 | 136,70 € | – |
| 5 | 132,60 € | 3% / 4,10 € |
| 10 | 129,87 € | 5% / 6,84 € |
| 20 | 125,76 € | 8% / 10,94 € |
| 50 | 120,30 € | 12% / 16,40 € |
Scarce

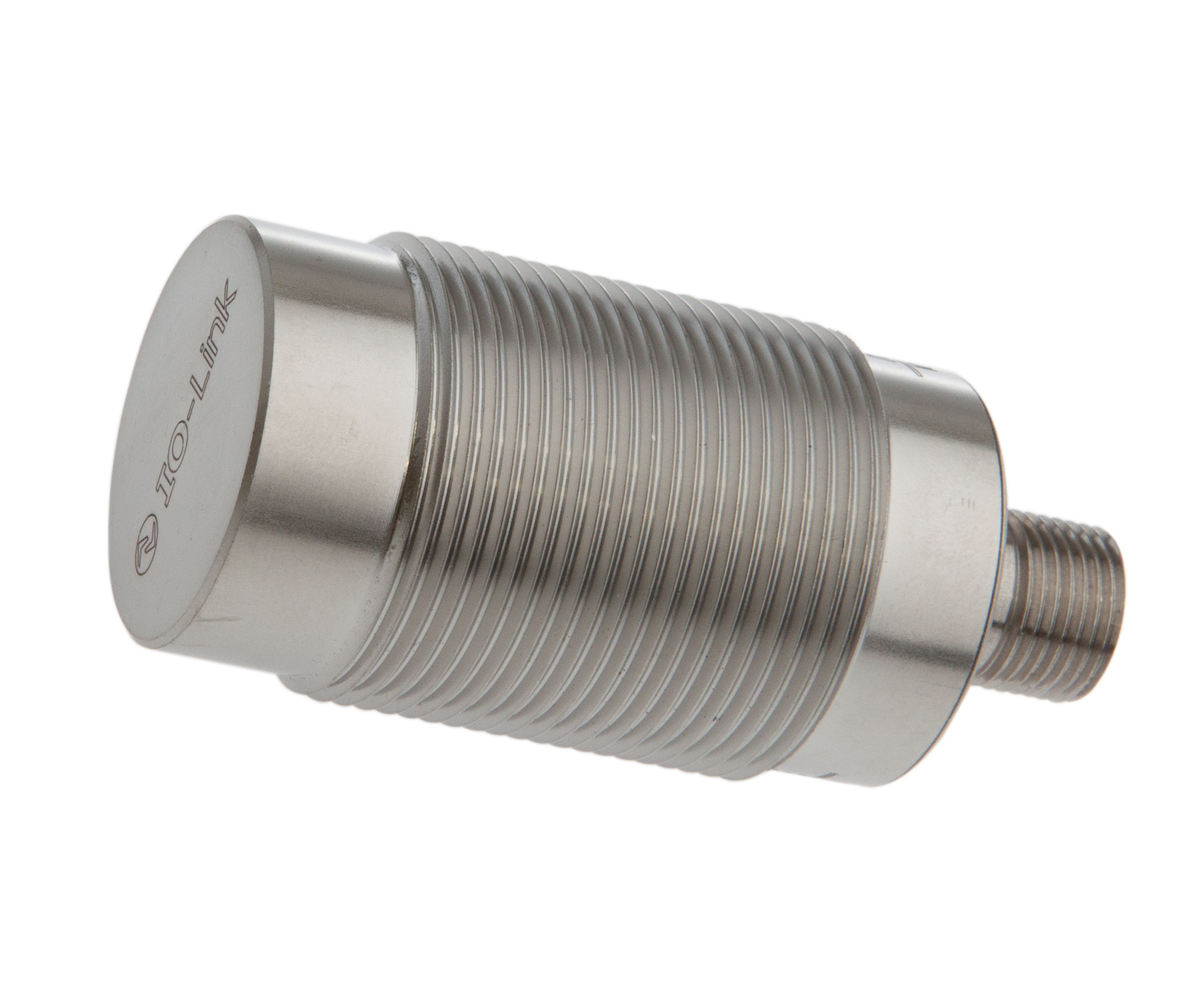

Sensor inductive, all-steel, M30x1.5 64long, non-flush, Sn: 12, 10-30V DC, -25-85°C, PNP NO, IO-Link, M12 plug connector 4-pin, IP67, stainl. steel, static
including Nut, Toothed washer
Compare
Inductive sensors - Chip resistant
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Relative hysteresis
- 15%
- Correction factor (aluminum)
- 1.65
- Correction factor (copper)
- 1.65
- Correction factor (brass)
- 1.2
- Correction factor (St37)
- 1
- Correction factor (stainless steel V2A: 1mm)
- 0
- Correction factor (stainless steel V2A: 2mm)
- 0
- Correction factor (stainl. steel)
- 0
- No-load current
- 10mA
- Max. line length
- 300m
- Number of pins
- 4
- Relative repeat accuracy
- 7%
- Residual ripple
- 20%
- Switching distance
- 12mm
- Switching frequency
- 90Hz
- Switching behavior of the output
- Static
- Voltage drop
- 2V
- Supported communication interface
- IO-Link
- Display
- LED display
- Short circuit protection, Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Pressure resistance
- 40bar
- Thread length
- 32mm
- Thread pitch
- 1.5mm
- Cable infeed
- axial
- Length
- 63.5mm
- Material thickness
- 1mm
- Maximum tightening torque
- 150Nm
- Mechanical mounting condition for sensor
- non-flush
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Stainless steel 1.4305
- Housing material
- Stainless steel 1.4305
- Thread dimension
- M30

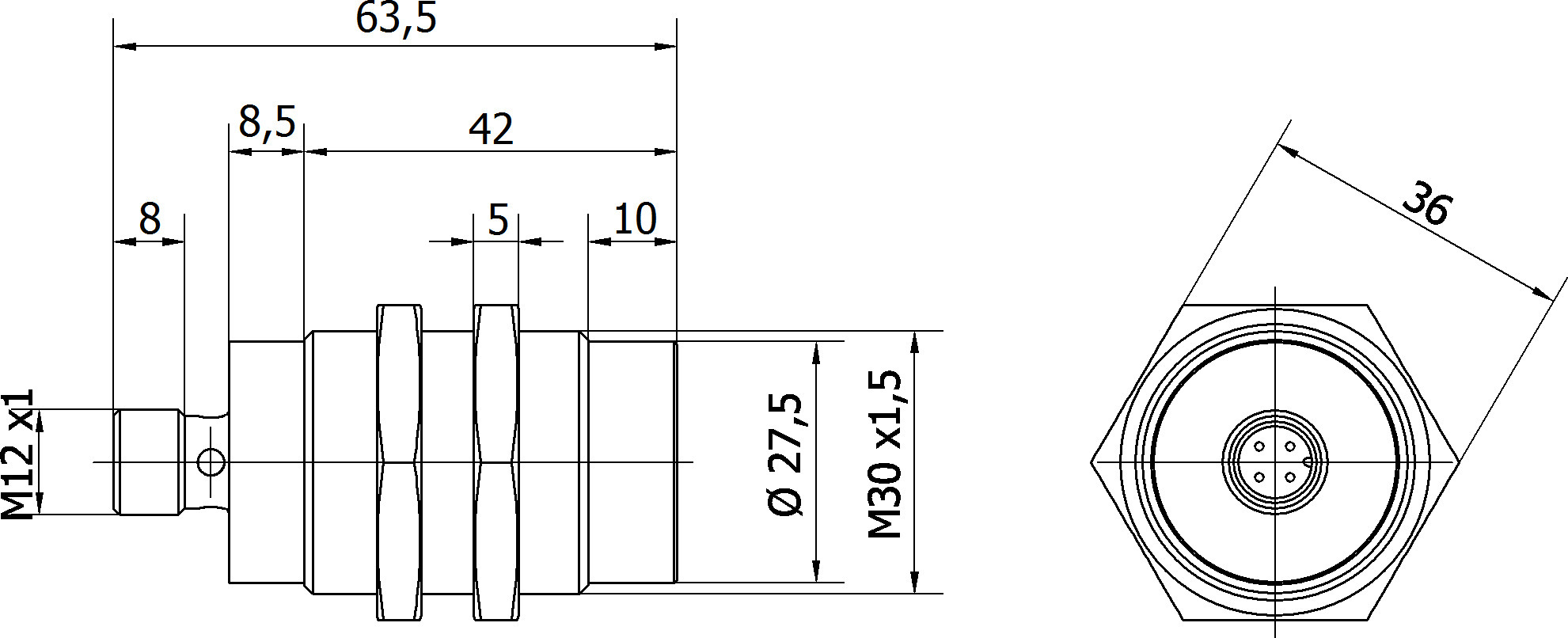

- dimensions
Other properties
- Ambient temperature
- -25 - 85°C
- Reference medium / object
- Standard measuring plate FE360 36x36x1mm
- IO-Link version
- V1.0.1
- Harsh environmental conditions
- Yes
