OC299720

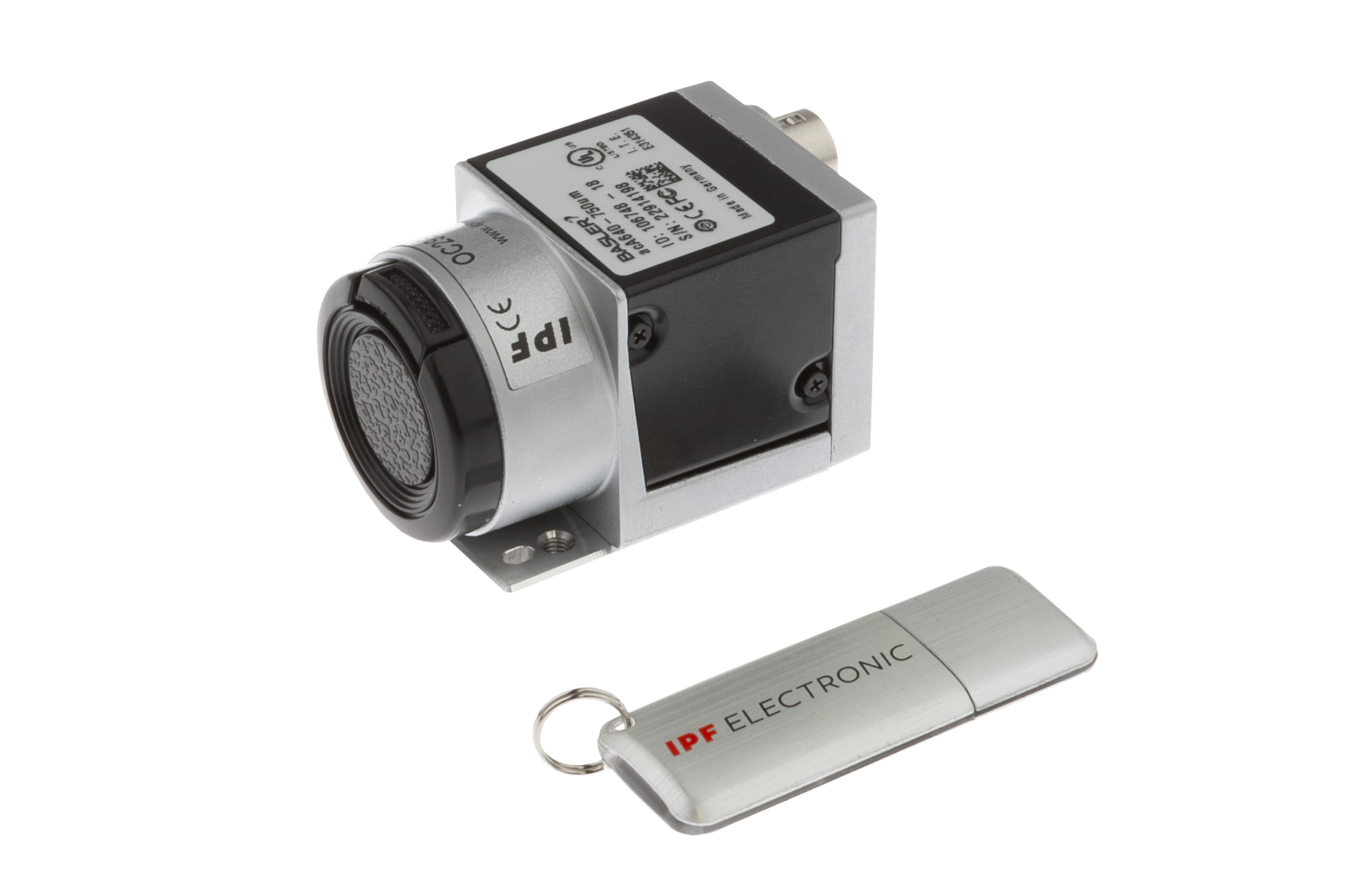

High-speed camera, black/white, 29x29x29mm, 750fps, CMOS(1/4"), 640x480, variable focal distance, 1x optocoupler programmable/configurable, USB-3.0-Micro-B 10pin, aluminum powder-coated, C-mount
Compare
Camera systems - High-speed
Electrical properties
- Number of digital outputs
- 1
- Number of digital inputs
- 1
- Number of switching outputs
- 1
- Type of switching function
- Programmable/configurable
- Type of switching output
- Optocoupler
- Property picture system
- Setting procedure
- Application software
- No-load current
- 300mA
- Power consumption
- 3VA
- Measuring time for high speed
- 720fps
- Number of pins
- 10
- Type of plug-in contact, communication interface
- Male (connector)
- Type of plug-in connection, communication interface

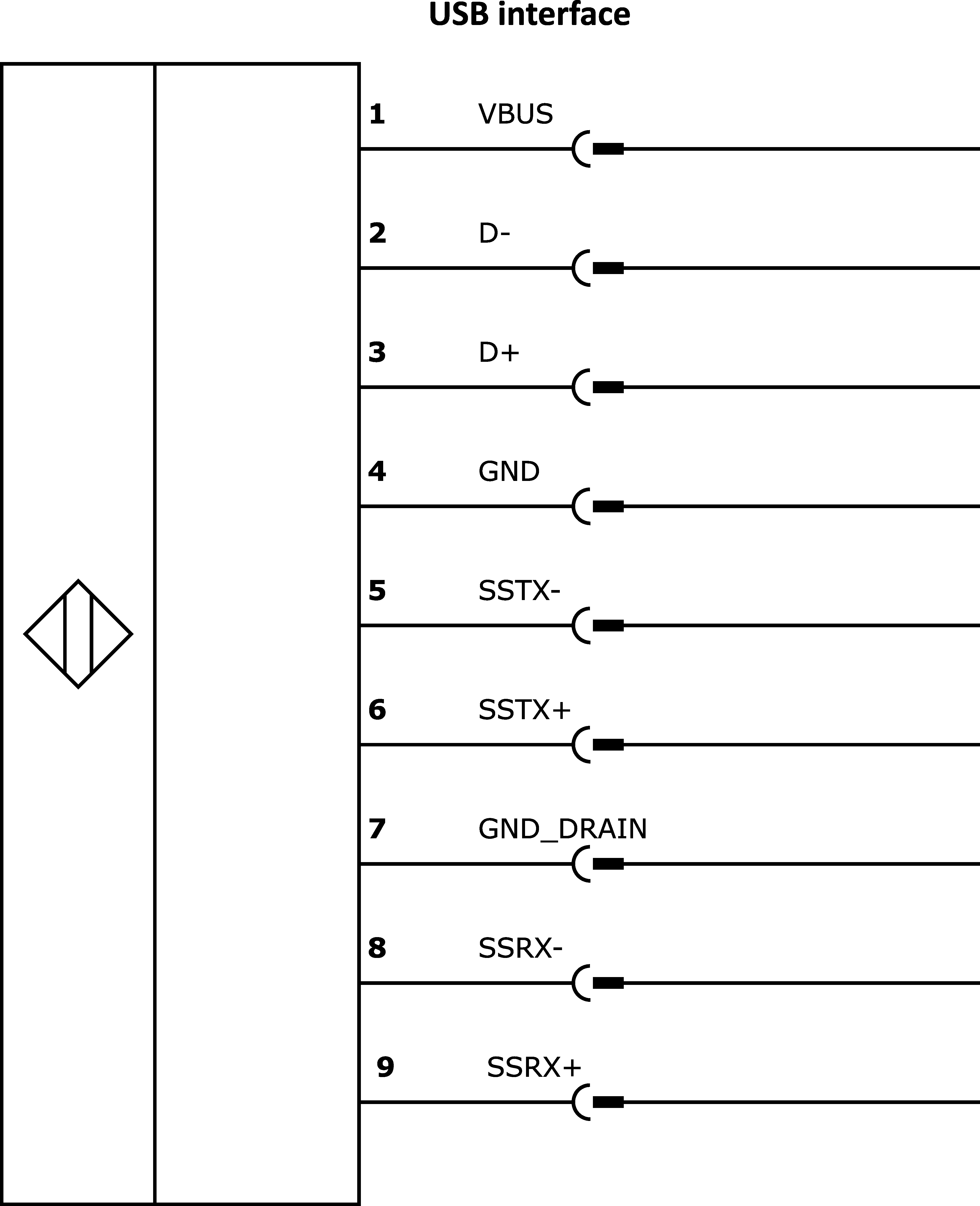

- USB 3.0 Micro-B, Powered
- Number of pins of interface connection
- 6
- Operating voltage
- Electrical connection
Mechanical properties
- Width
- 29mm
- Height
- 29mm
- Length
- 48.2mm
- Surface
- With powder coating
- Lens connection
- C-mount (1-32 UN 2A)
- Housing material
- Aluminum

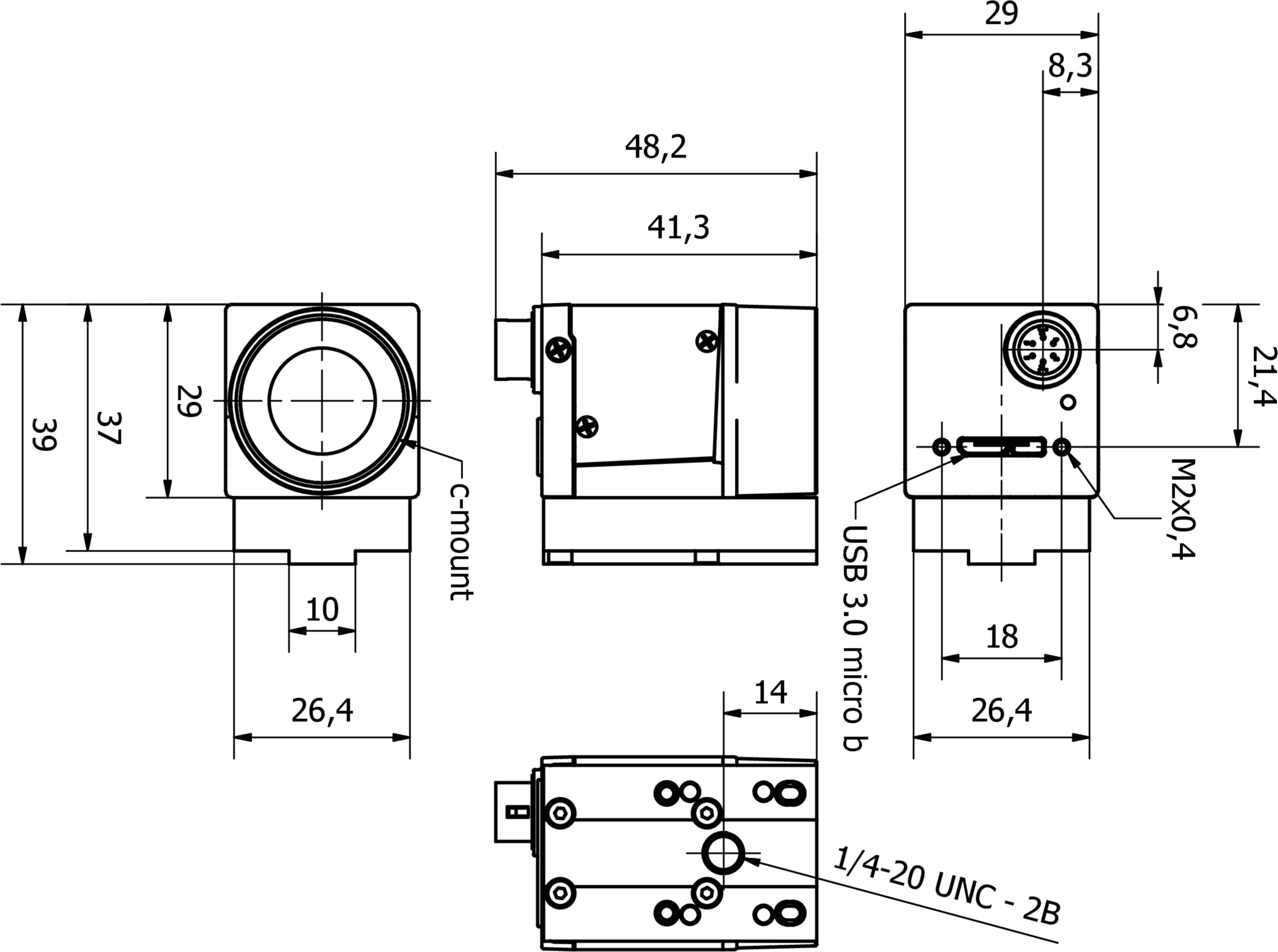

- dimensions
Optical properties
- Resolution of image recorder
- 640x480
- Image recorder
- CMOS(1/4")
Other properties
- Relative air humidity (non-condensing)
- 20 - 80%
- Ambient temperature
- 50°C
- Software version
- V4.0
You can find accessories for OC299720
in these product groups:
Assembly
Accessories for high-speed camera
On demand
Connection technology
Hirose cable sockets
USB 3.0 cable sockets
Image processing
Empty case
Available
Lenses up to 2 MP
Liquid lens
Spotlight illumination for high-speed camera
Datasheets
Manuals
Drawings
Software
Software older versions
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfEU declaration of conformityPDF-file, 403 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27310201 |
| eClass-7.1 | 27310201 |
| eClass-8.0 | 27310201 |
| eClass-9.0 | 27310201 |
| eClass-9.1 | 27310201 |
| ETIM-6.0 | EC001511 |
| ETIM-7.0 | EC001511 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 715 camera sensors |
| packaging dimensions | 99 x 60 x 160mm |
| gross weight | 160g |
| Customs tariff number | 90314990 |
| WEEE number | 40951076 |
