Optical sensors - Diffuse reflection sensors with background suppression
OT230320
| amount | price | discount |
|---|---|---|
| 1 | 197,20 € | – |
| 5 | 191,28 € | 3% / 5,92 € |
| 10 | 187,34 € | 5% / 9,86 € |
| 20 | 181,42 € | 8% / 15,78 € |
| 50 | 173,54 € | 12% / 23,66 € |
Scarce

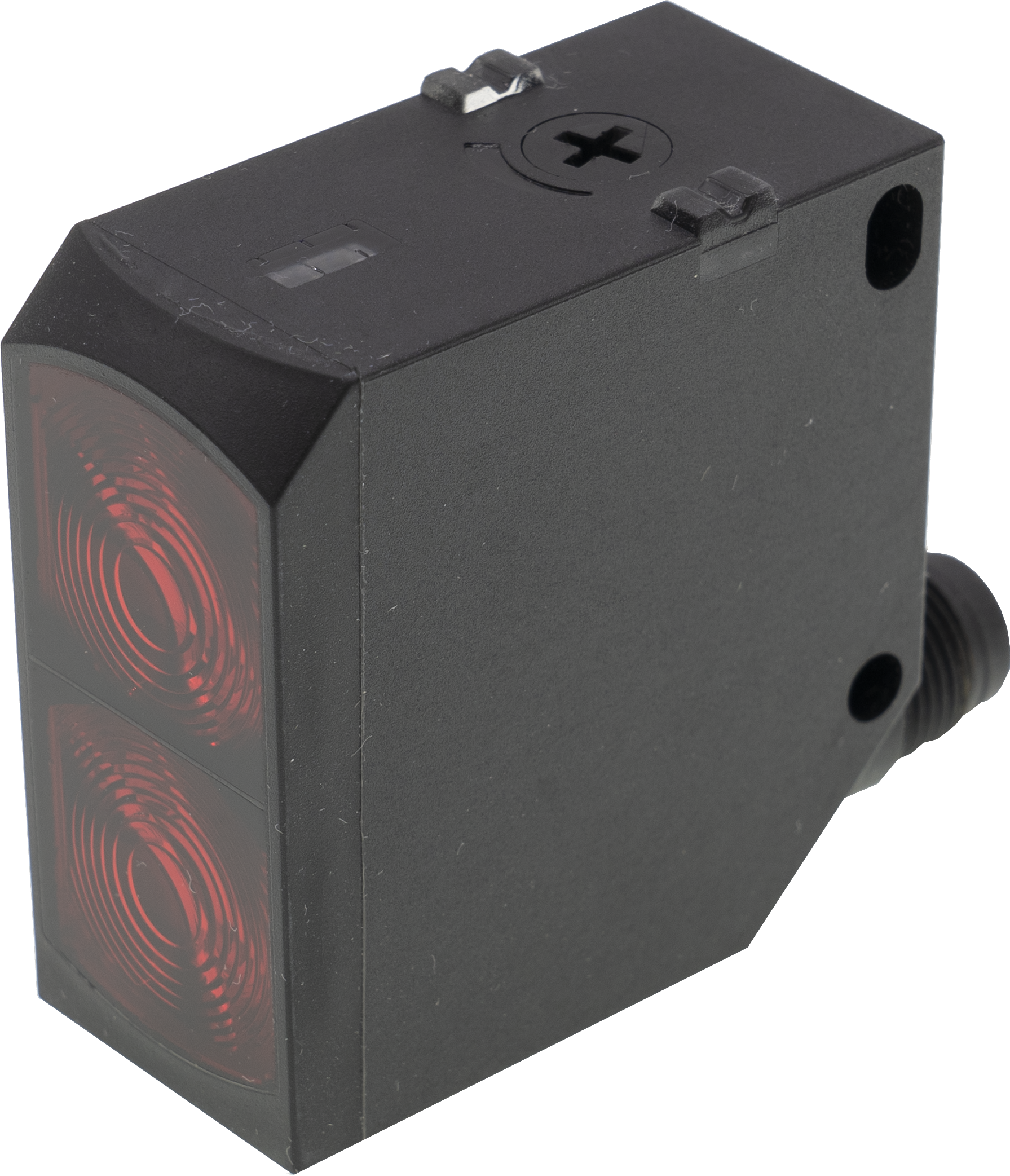

Optical Sensor, Diffuse Reflection Sensor, 50x50x23 mm, Sn: 3–1200, 10–30 V DC, PNP, NC/NO, 4-pin M12 connector, IP67, ABS plastic + PMMA plastic, red light, spot, manual setting
Compare
Optical sensors - Diffuse reflection sensors with background suppression
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic operating principle is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 0.83ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed contact/normally open contact
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Readiness delay
- 300ms
- Setting procedure
- Manual adjustment
- Operating principle
- background suppression
- No-load current
- 30mA
- Number of pins
- 4
- Switching distance
- 3 - 1,200mm
- Switching frequency
- 600Hz
- Protection class
- II
- Scanning function
- Light-/dark-on mode
- Dead zone
- 0 - 3mm
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cuboid
- Width
- 23mm
- Height
- 50mm
- Length
- 50mm
- Storage temperature
- -20 - 80°C
- Degree of protection (IP)
- IP67 / IP69k
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- plastic (ABS)
optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Triangulation
- Background suppression
- Wavelength of the sensor
- 640nm
other properties
- Ambient temperature
- -20 - 60°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for OT230320
in these product groups:
Assembly
Fixing material design 19 / 23
Available
Mounting for OT/PT23
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable connectors M12 4-pin field-attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire with LED
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Other sensors
Power supply 24V DC / 100mA switching amplifier
Power supply 24V DC / 2 – 10A
Protection cap, teflon M12
Tool
Sensor tester
Datasheets
Manuals

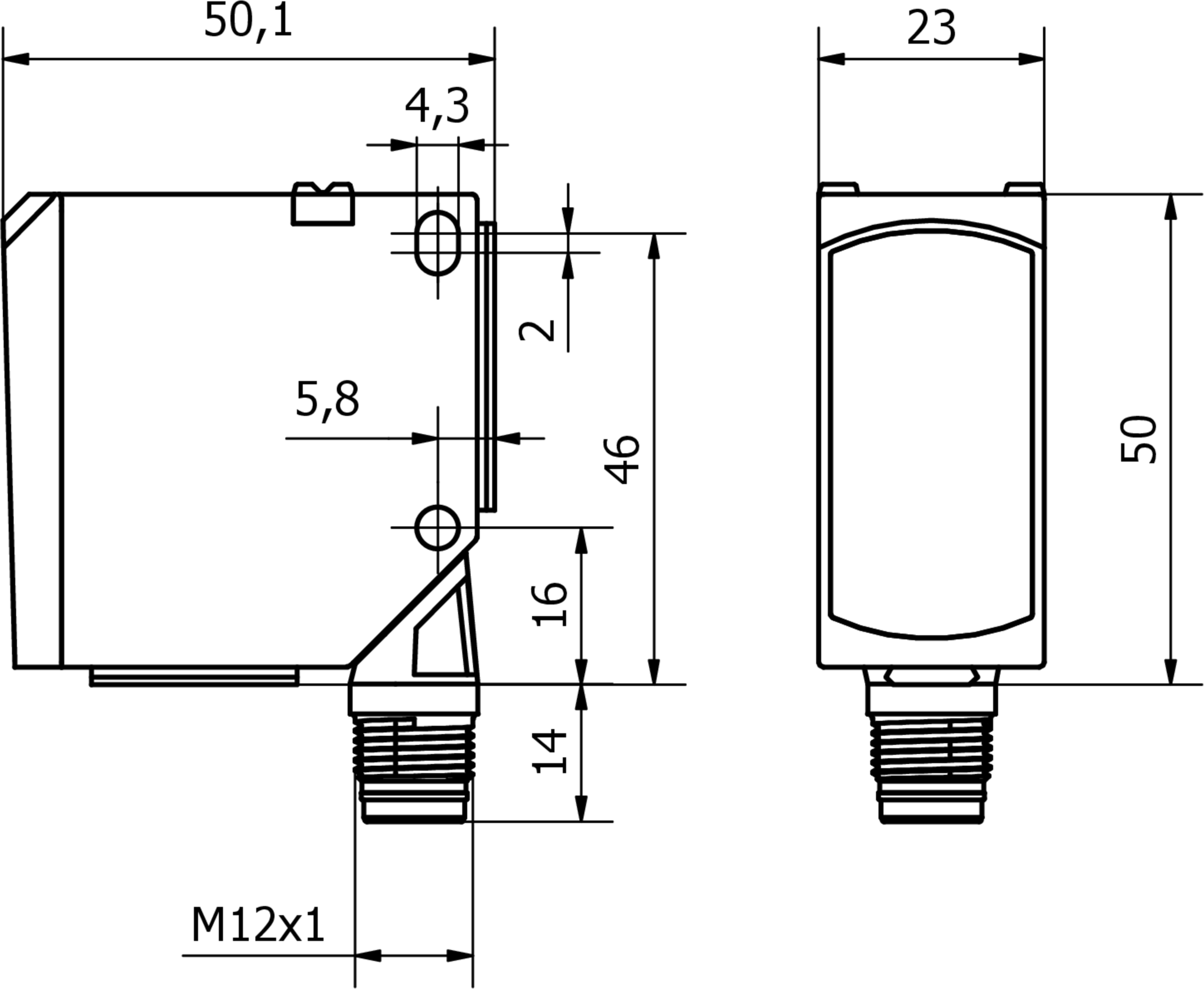

Drawings
Product Compliance
-
