AY000138
accessories sensor, Fixture kit, Metal, ball joint
Scarce
Optical sensors - Distance measurement
OT450021
| amount | price | discount |
|---|---|---|
| 1 | 308,70 € | – |
| 5 | 299,44 € | 3% / 9,26 € |
| 10 | 293,27 € | 5% / 15,44 € |
| 20 | 284,00 € | 8% / 24,70 € |
| 50 | 271,66 € | 12% / 37,04 € |
Available

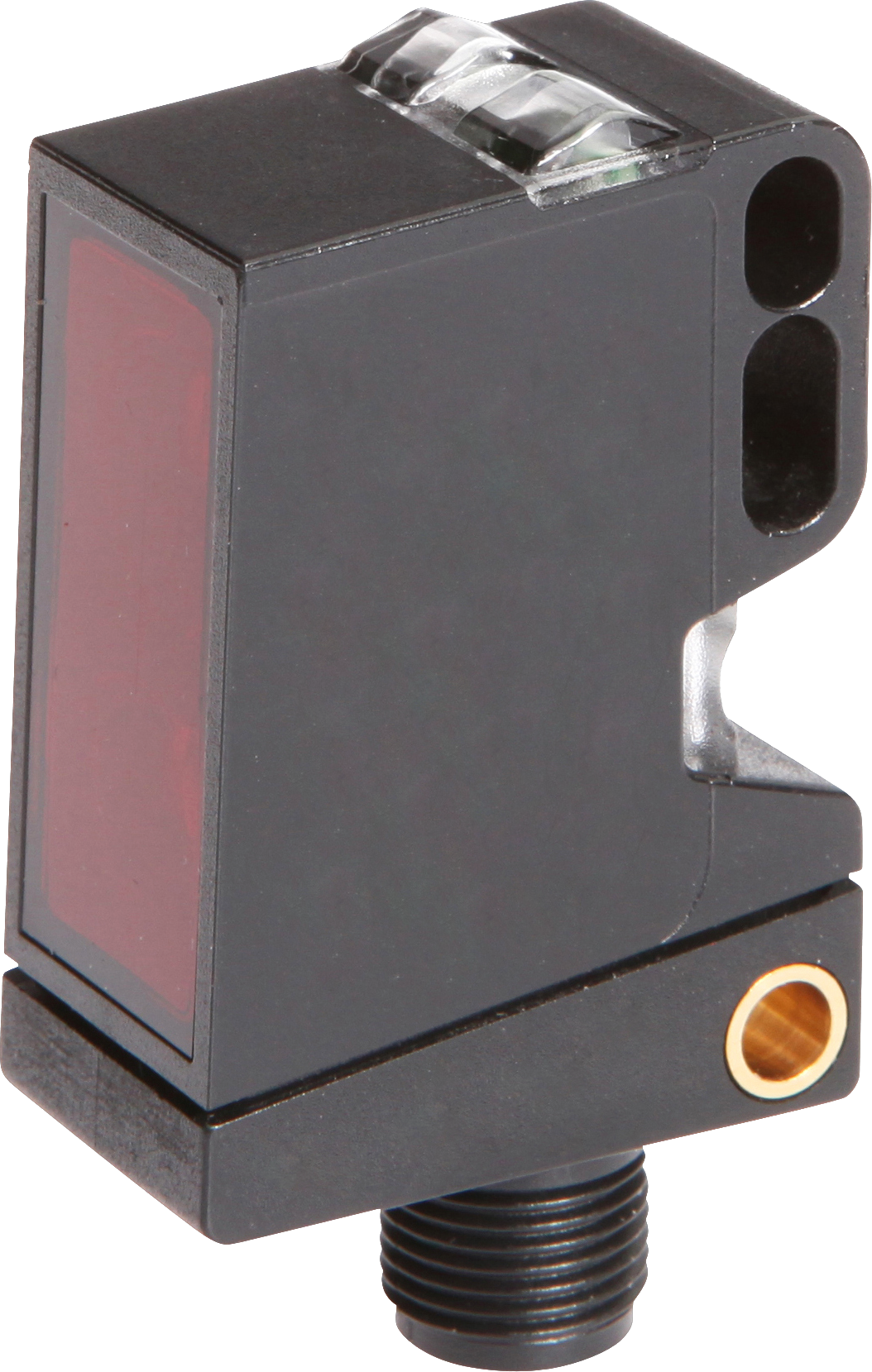

Sensor Optical, Push-button, 56x32x18mm, Sn:60-550mm, Triangulation, 12-30V DC, 4-20mA, 1xPNP/NPN push-pull, IO-Link, M12 connector 5pin, IP67, plastic ASA+plastic, red light non-polarized, dot, Parameterization / Teach-In
Compare
Optical sensors - Distance measurement
Optical sensors operate without contact. They detect objects, regardless of their nature (e.g. shape, color, surface structure, material). The basic mode of operation is based on the transmission and reception of light. Three variants are distinguished: 1. the through-beam sensor consists of two separate devices, a transmitter and a receiver, which are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. in the case of the reflex light barrier, the transmitter and receiver are located in one device. The transmitted light beam is reflected onto the receiver by a reflector to be mounted opposite. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. With the diffuse reflection sensor, the transmitter and receiver are located in one device. The transmitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.49ms
- Resolution
- 1mm
- Type of switching function
- Normally closed contact/normally open contact
- Type of analog output
- 4 - 20mA
- Type of electrical connection
- Connector M12
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- Setting procedure
- Parameterization, Teach-In
- No-load current
- 40mA
- Number of pins
- 5
- Voltage drop
- 3V
- Scanning function
- Light-/dark-on mode
- Measurement principle
- triangulation
- Supported communication interface
- IO-Link
- Dead zone
- 0 - 60
- Measuring range
- 60 - 550mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection

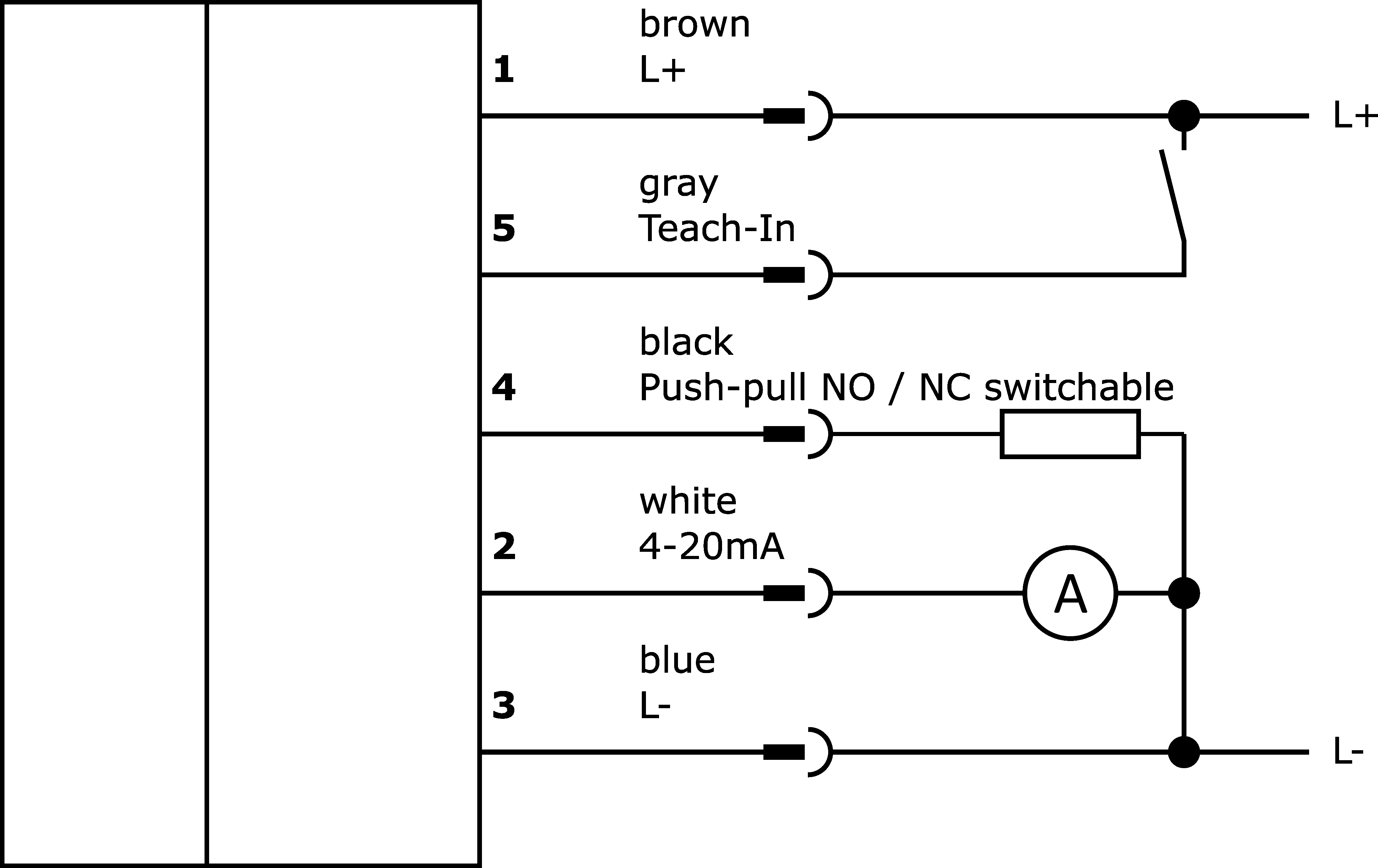

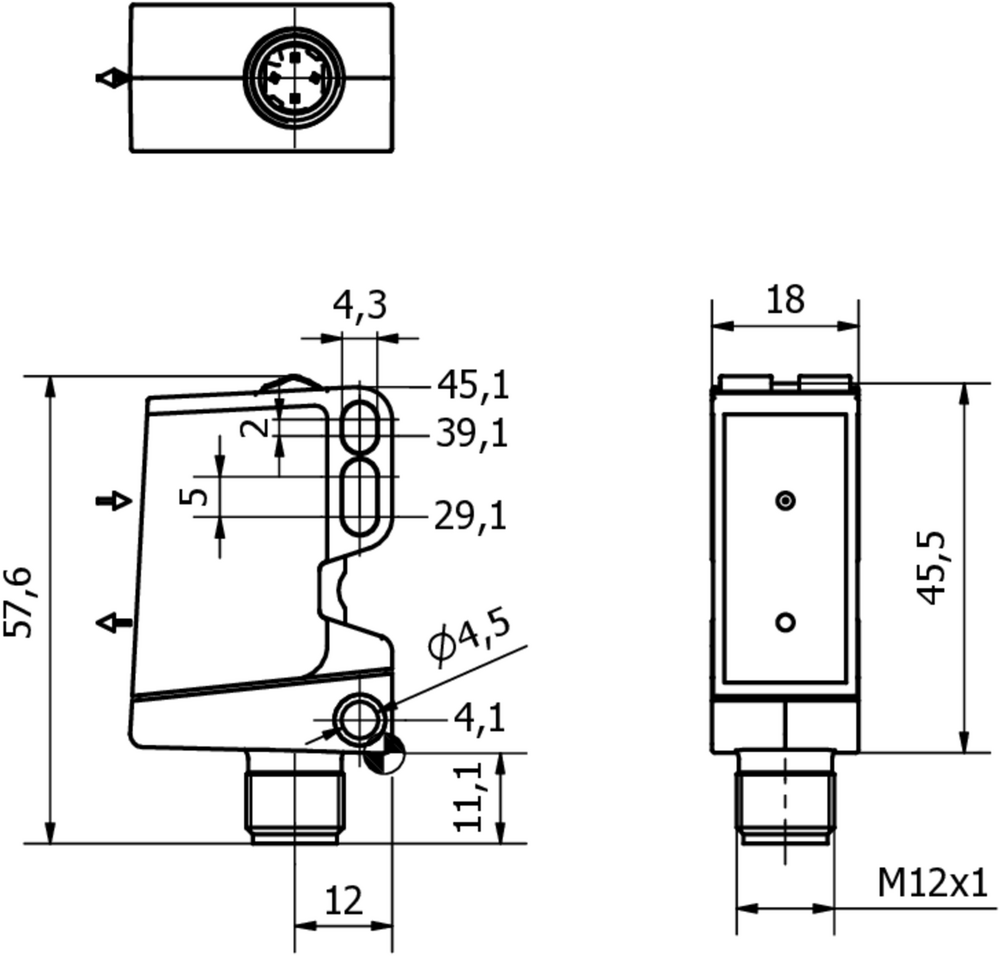

Mechanical properties
- Design
- Cuboid
- Width
- 18mm
- Height
- 56.2mm
- Length
- 32.2mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic ASA
Optical properties
- Light source
- Polarity free red light
- Light exit
- Lateral
- Light beam form
- Point
- Triangulation
- Background suppression
- Wavelength of the sensor
- 630nm
- Light spot diameter at focal point
- 9mm
Other properties
- Ambient temperature
- -25 - 60°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1.2
You can find accessories for OT450021
in these product groups:
Assembly
Accessories design 45
Mounting system for AY000138
Connection technology
Cable sockets M12 5-pin field attachable
Cable sockets M12 5-wire shielded
Logic modules M12
Timer stages M12
Other sensors
Power supply 24V DC / 100mA switching amplifier
Protection cap, teflon M12
Programming / parameterization
IO-Link master
Teach adapter AV000114
Tool
Sensor tester
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 404 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270801 |
| eClass-7.1 | 27270801 |
| eClass-8.0 | 27270801 |
| eClass-9.0 | 27270801 |
| eClass-9.1 | 27270801 |
| ETIM-6.0 | EC001825 |
| ETIM-7.0 | EC001825 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 109 optical sensors (analog) |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 40g |
| 0,13kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
