Laser sensors - Diffuse reflection sensors with background suppression
PT230320
| amount | price | discount |
|---|---|---|
| 1 | 372,00 € | – |
| 5 | 360,84 € | 3% / 11,16 € |
| 10 | 353,40 € | 5% / 18,60 € |
| 20 | 342,24 € | 8% / 29,76 € |
| 50 | 327,36 € | 12% / 44,64 € |
Available

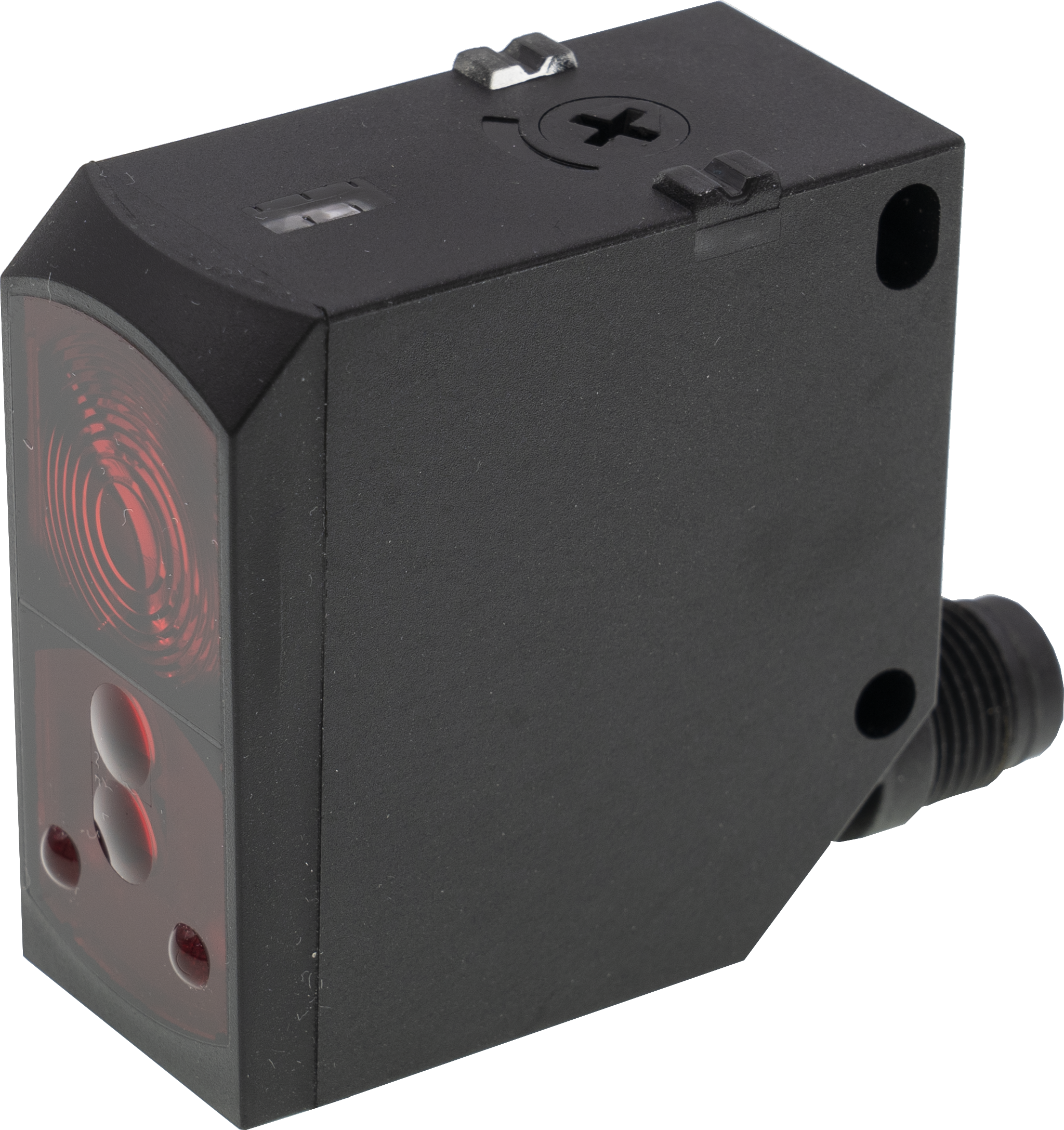

Sensor laser, diffuse reflection sensor, 50x50x23mm, Sn: 5-1000, 12-30V DC, PNP, NC/NO, M12 plug-in connector 4-pin, IP67, plastic ABS+plastic PMMA, red light, dot, manual setting
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors work contactless. They detect objects, regardless of their properties (e.g. shape, color, surface structure, material). The basic mode of operation is based on the transmitter and receiver of light. There are three different versions: 1. the through-beam sensor consists of two separate devices, a transmitter and a receiver, which are aligned with each other. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. in the reflex light barrier, the transmitter and receiver are located in one device. The transmitted light beam is reflected onto the receiver by a reflector to be mounted opposite. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. the diffuse reflection sensor has a transmitter and receiver in one device. The transmitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.5ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed contact/normally open contact
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Readiness delay
- 300ms
- Setting procedure
- Manual adjustment
- Relative hysteresis
- 12%
- No-load current
- 30mA
- Number of pins
- 4
- Switching distance
- 5 - 1,000mm
- Switching frequency
- 1,000Hz
- Protection class
- II
- Scanning function
- Light-/dark-on mode
- Dead zone
- 0 - 5
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 23mm
- Height
- 50mm
- Length
- 50mm
- Storage temperature
- -20 - 80°C
- Degree of protection (IP)
- IP67 / IP69k
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic (ABS)
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Triangulation
- Background suppression
- Wavelength of the sensor
- 655nm
Other properties
- Ambient temperature
- -20 - 60°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for PT230320
in these product groups:
Assembly
Fixing material design 19 / 23
Available
Mounting for OT/PT23
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable connectors M12 4-pin field-attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire with LED
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Other sensors
Power supply 24V DC / 100mA switching amplifier
Power supply 24V DC / 2 – 10A
Protection cap, teflon M12
Tool
Sensor tester
Datasheets
Manuals

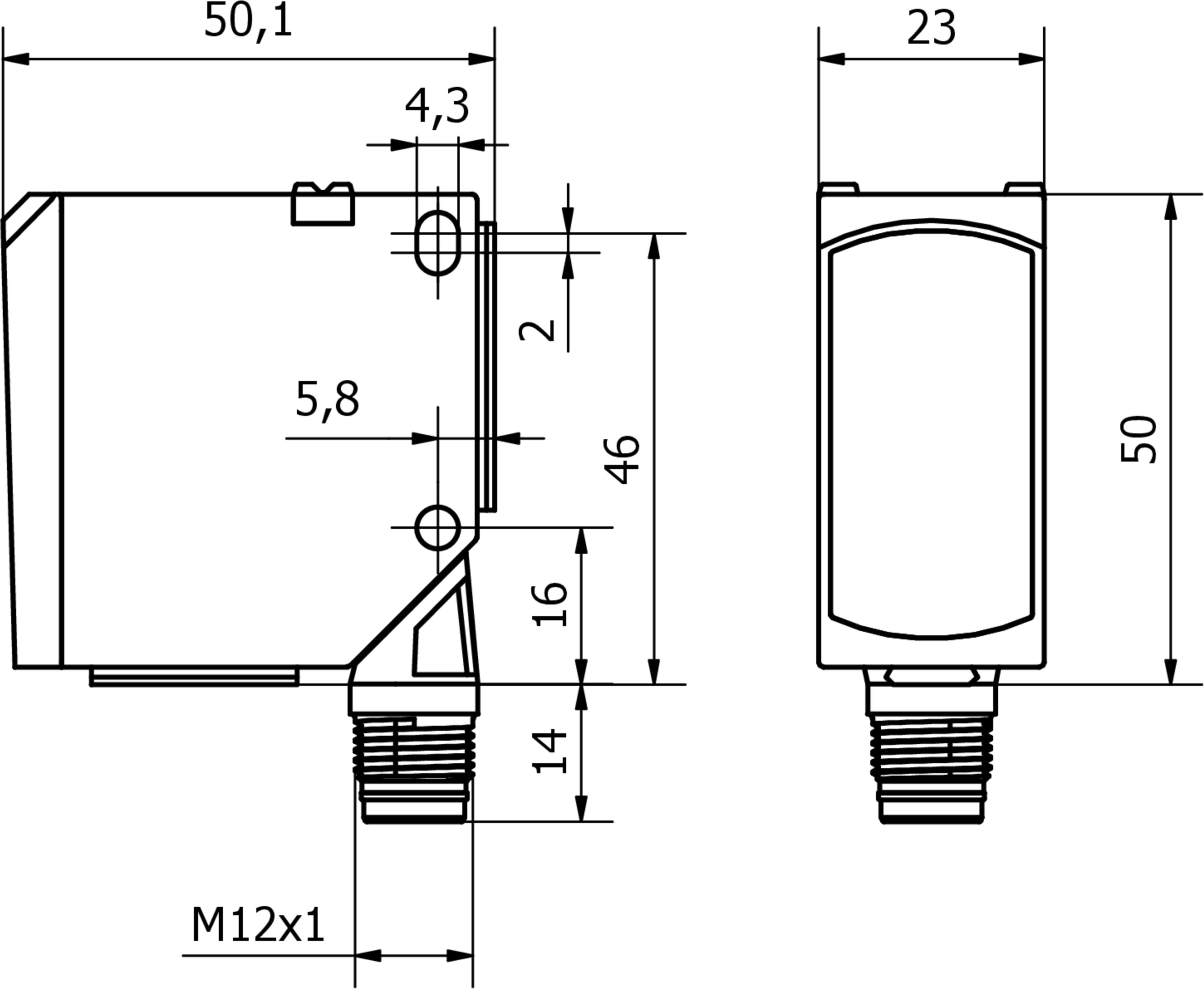

Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
-
pdfWhitepaper food productionPDF-file, 901 KB
-
pdfWhitepaper optical sensorsPDF-file, 658 KB
-
pdfLaser sensorsPDF-file, 3.5 MB
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| ATEX-compliant | No |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 160 laser sensor |
| packaging dimensions | 60 x 30 x 91mm |
| gross weight | 53g |
| 0,42kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
