accessories sensor, Reduction sleeve, M30, Plastic
Scarce
Ultrasonic sensors - Distance measurement
UT309023
| amount | price | discount |
|---|---|---|
| 1 | 456,30 € | – |
| 5 | 442,61 € | 3% / 13,69 € |
| 10 | 433,49 € | 5% / 22,82 € |
| 20 | 419,80 € | 8% / 36,50 € |
| 50 | 401,54 € | 12% / 54,76 € |
Scarce

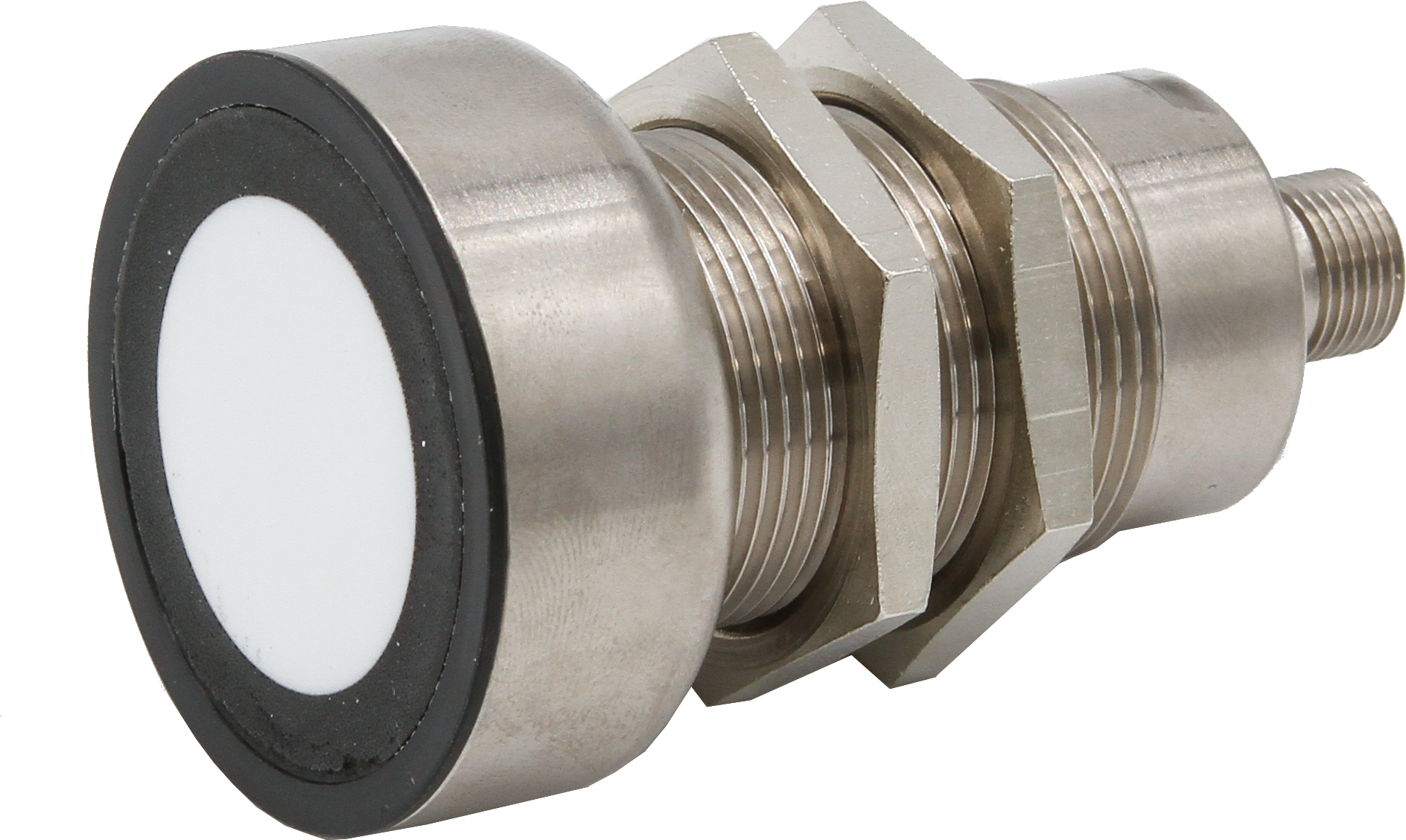

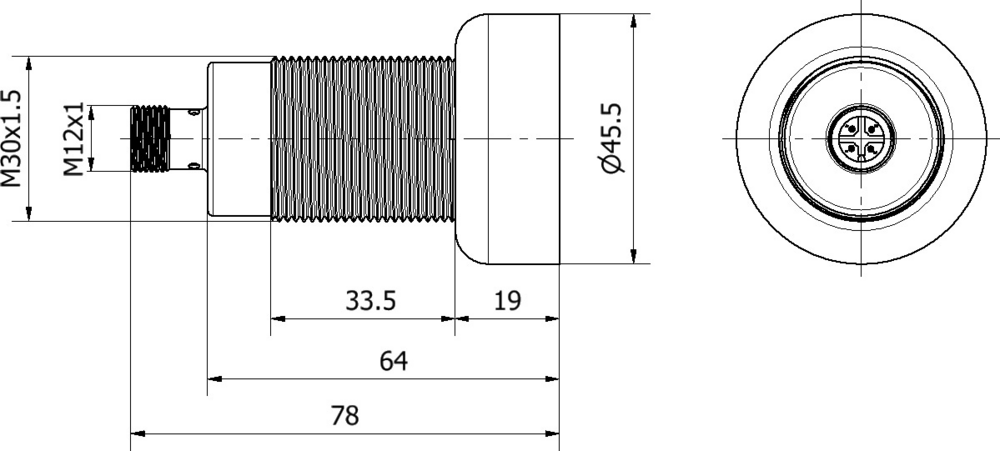

sensor ultrasonic, diffuse-reflection sensor, M30x1.5 79long, Sn: 600-6000, 18-30V DC, 0-10V/4-20mA, IO-Link, Connector M12 4pin, IP67, Brass Nickel-plated, Teach-In, With LED display, ultrasonic cone Axial
including Nut
Compare
Ultrasonic sensors - Distance measurement
Ultrasonic sensors are non-contact and wear-free position switches which can also be used under rough environmental conditions. A key advantage of these devices lies in the fact that the material and the surface characteristics of the objects to be detected can be almost anything. Solids, liquids, grainy materials and powdery materials can be identified without the shape or the color of the object having any influence to the measured result. In addition, the ability to detect transparent materials such as films and fluids is of particular importance. The shape and color of the objects do not influence the result of the detection. The capability to detect transparent films or liquids is also of special importance. Ultrasonic sensors are used for distance measurement (e.g. detection of diameters, loop control), for fill level detection (e.g. silo detection), for positioning and presence detection (e.g. glass pane positioning, film tear check, glass bottle detection)
Electrical properties
- Resolution
- 1mm
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of electrical connection
- Connector M12
- Rated switching current
- 100mA
- Readiness delay
- 300ms
- Setting procedure
- Teach-In
- Load resistance (voltage output)
- 10kOhm
- Load resistance (current output)
- 0.4kOhm
- No-load current
- 45mA
- Number of pins
- 4
- Relative linearity deviation
- 0.5%
- Sound outlet
- axial
- Switching frequency
- 2Hz
- Protection class
- III
- Temperature drift over entire measuring range
- 0.2%
- Carrier frequency
- 80kHz
- Absolute repeat accuracy
- 4mm
- Supported communication interface
- IO-Link
- Measuring range
- 600 - 6,000mm
- Display
- LED display
- Multiplex connection (switchover by means of IO-Link)
- Yes
- Switching output (switchover by means of IO-Link)
- Yes
- Synchronization connection (switchover by means of IO-Link)
- Yes
- Teach input (switchover by means of IO-Link)
- Yes
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 33.5mm
- Thread pitch
- 1.5mm
- Length
- 79mm
- Mounting distance
- 1,400mm
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Housing material
- Brass
- Thread dimension
- M30
- Diameter
- 45.5mm
Other properties
- Operating frequency
- 80kHz
- Ambient temperature
- -25 - 70°C
- Reference medium / object
- Measuring plate 200x200mm
- Level sensing
You can find accessories for UT309023
in these product groups:
Assembly
Adapter sleeve M30 to Ø34
Deflection bracket design 30
On demand
Fixing material for UT30
Mounting system, cylindrical, M30
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire shielded
Cable sockets M12-socket M12-connector 4-wire
Other sensors
Power supply 24V DC / 100mA switching amplifier
Datasheets
Manuals

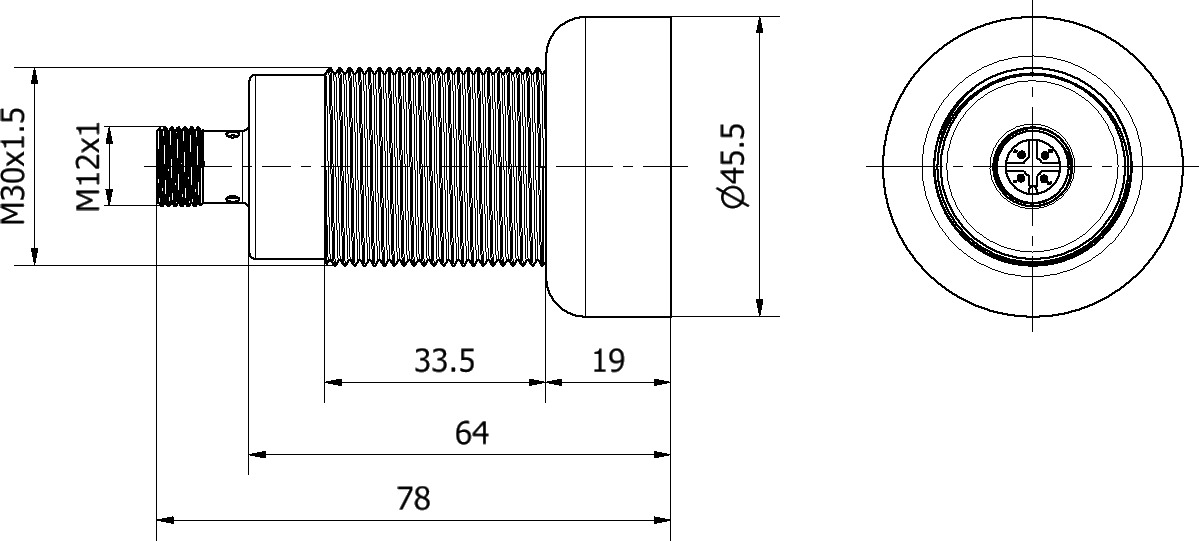

Drawings
Interfaces
Product Compliance
-
pdfUL declaration of conformityPDF-file, 433 KB
-
pdfCSA declaration of conformityPDF-file, 433 KB
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
Product flyers
-
pdfFlyer IO-LinkPDF-file, 8.2 MB
-
pdfFlyer fluid technologyPDF-file, 3.5 MB
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfFlyer ultrasonic sensors with IO-LinkPDF-file, 1.8 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270804 |
| eClass-7.1 | 27270804 |
| eClass-8.0 | 27270804 |
| eClass-9.0 | 27270804 |
| eClass-9.1 | 27270804 |
| ETIM-6.0 | EC001846 |
| ETIM-7.0 | EC001846 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E486083 |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 259 ultrasonic sensors (analog) |
| packaging dimensions | 175 x 48 x 155mm |
| gross weight | 188g |
| 0,71kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
