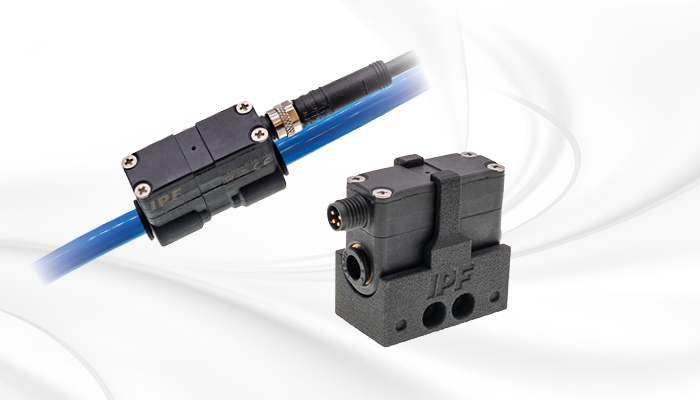

Inline pressure and vacuum sensors

In addition to our switching inline pressure and vacuum sensors for hose assembly, four analog devices with 4...20mA output are now available for hose diameters of 6mm and 8mm. The sensors cover a pressure range from -1 to 10 bar.

Art. No. | Pressure range

DT064100 / DT084100 -1bar - 0 bar

DT06410D / DT08410D 0bar - 10 bar

DT06410J / DT08410J -1bar - 1 bar

DT06410K / DT08410K -1bar - 10 bar

AD000023 (4 and 6mm) and AD000024 (8mm) stackable holders are now available for both the inline sensors with switching and analog output.
