It doesn't always have to be round

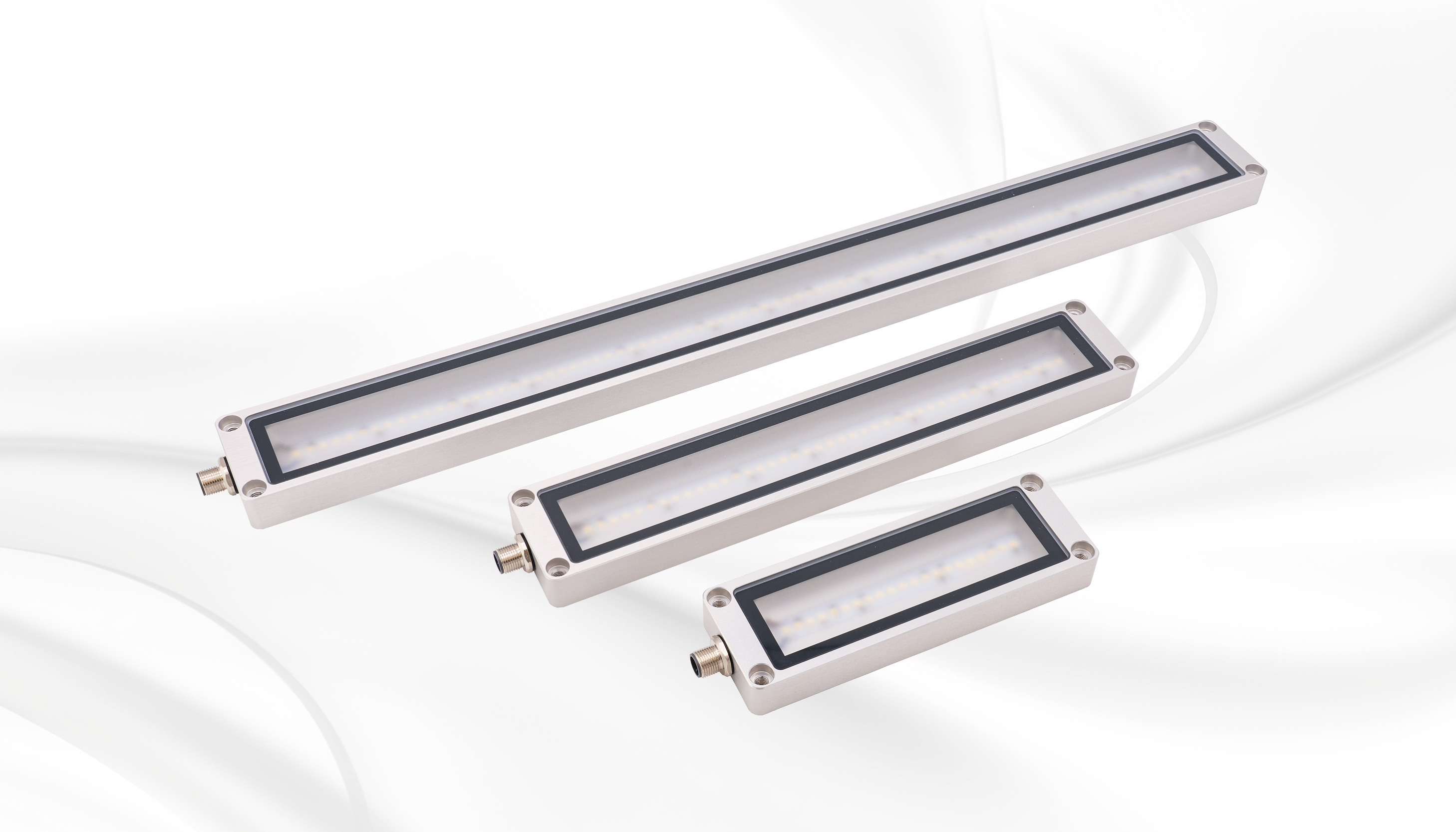

The product range of cuboid LED machine lights from ipf electronic has been supplemented with the three new lights from the EM55 series.

The lights up EM550120, EM550121 and EM550122 have very effective thermal management, are also versatile and are suitable for use in harsh working environments such as CNC, milling, injection molding or eroding machines.

The lights are made of anodized aluminum housing with a coverage of tempered float glass (flat glass) and are available in lengths of 165mm, 300mm and 550mm with outputs of 7W, 13W and 25W. The color temperature is 5,000K (neutral white).

The light from these machine lights is emitted at a bracket of 120°, is free from UV and IR components and ensures that the operating range is illuminated over a large area. The brightness of the lights up can be adjusted using the module VY000007 module. Four M6 threaded bores are provided for mounting the lights up. The connection to 24V diagnostic coverage is made via an M12-connector.
