Process Data Analysis - Accessories

AB000010

AB000010
List price
1.215,00 €
Scarce
Accessories IoT gateway, expansion module, 25x139x110mm, 2x IEPE vibration sensors, 2x digital inputs/triggers, terminal, IP20

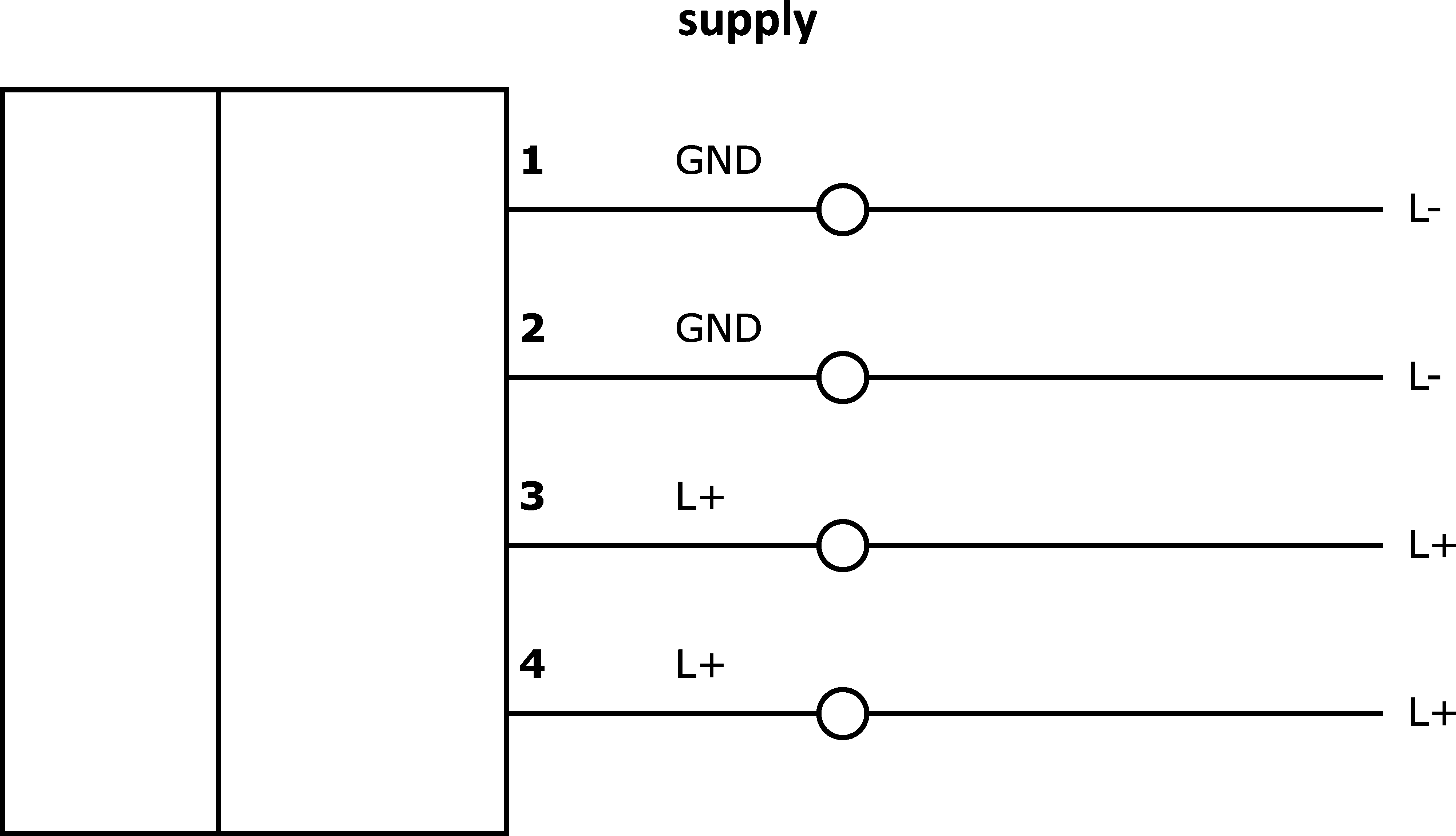

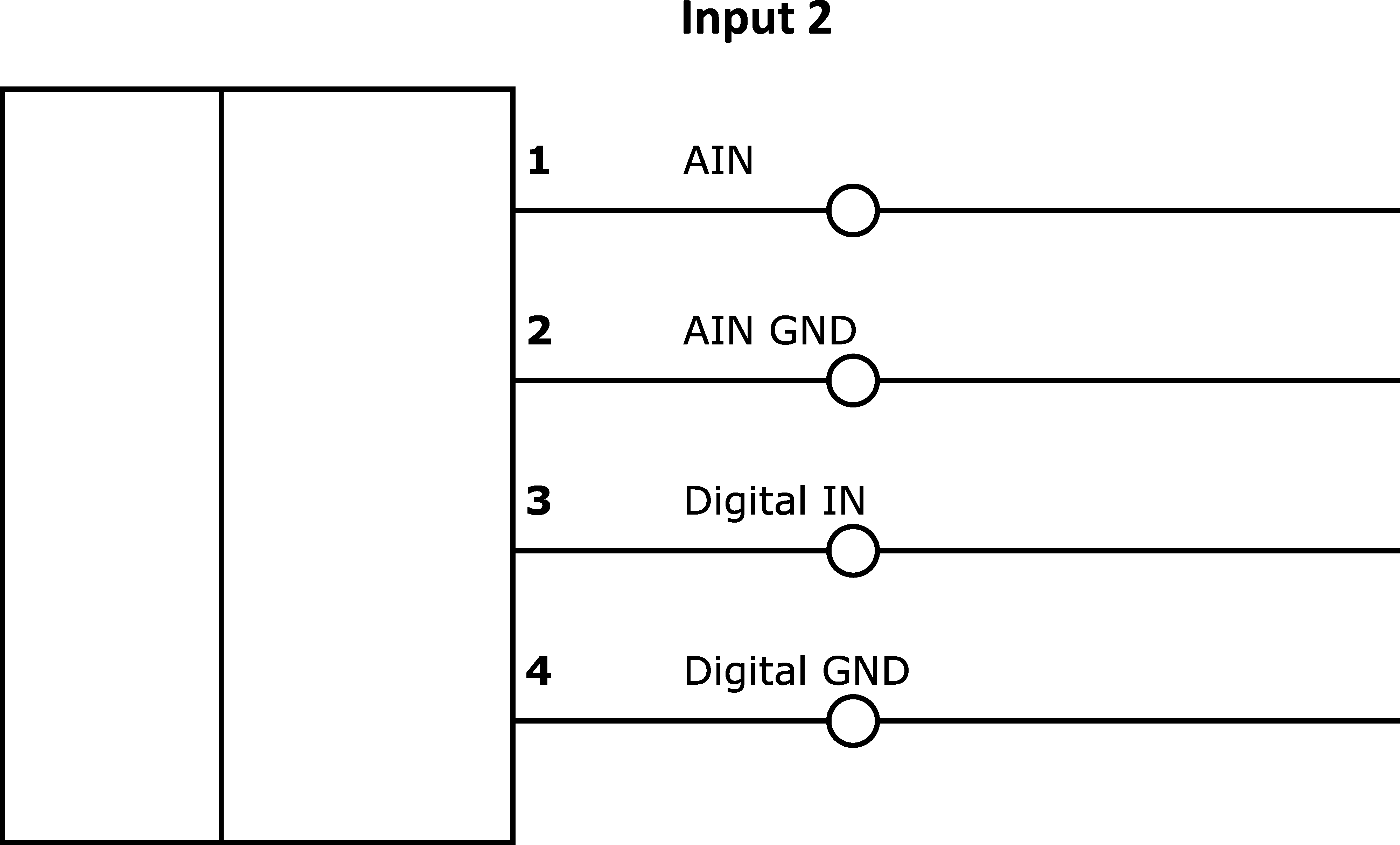

circuit diagram
dimensional drawing
Compare

Process Data Analysis - Accessories

The AB000010 is used to connect vibration/acoustic sensors to an IoT gateway. The module is capable of evaluating 2 sensors with a sampling frequency of up to 48 kHz and a resolution of 24 bits.

Electrical properties

Number of channels
2
Type of analog input
IEPE 0.5 to 10,000Hz
Type of electrical connection
Clamped terminal connection
Digital resolution
24Bit
Max. line length
100m
RAM
358kB & 128kB fast RAM, 2x 512kB Dualflash
Processor
ARM Cortex-M7 CPU ARM®
Supported communication interface
Modbus TCP, MQTT
Display
LED display
Measurement frequency
48,000,000Hz
Operating voltage
22-26VDC
Electrical connection
Terminal connection

Mechanical properties

Width
25mm
Height
139mm
Length
109mm
Storage temperature
-40 - 85°C
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Nylon 6 with 30% glass fibers
dimensions
109x25x139mm

Other properties

Ambient temperature
0 - 50°C
Important note
External working memory open-ended to 16MB
Classification Class
eClass-7.0 27143190
eClass-7.1 27143190
eClass-8.0 27143190
eClass-9.0 27143154
eClass-9.1 27143154
ETIM-6.0 EC001099
ETIM-7.0 EC001099
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 735 Gateway and accessories
packaging dimensions 175 x 42 x 223mm
gross weight 232g
1,59kg CO₂e
Customs tariff number 85437090
WEEE number 40951076
