Connection technology - Cable sockets / connectors for self-assembly
AV000021
On demand
accessories rotary encoder, Cable socket, Straight, Suitable for self-assembly, Soldering connection, Ø5.8-6.2mm, 30A, -40-105°C, M23 Female (socket) 12pin
Compare
Connection technology - Cable sockets / connectors for self-assembly
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of A electrical connection
- M23
- Type of B electrical connection
- Soldering connection

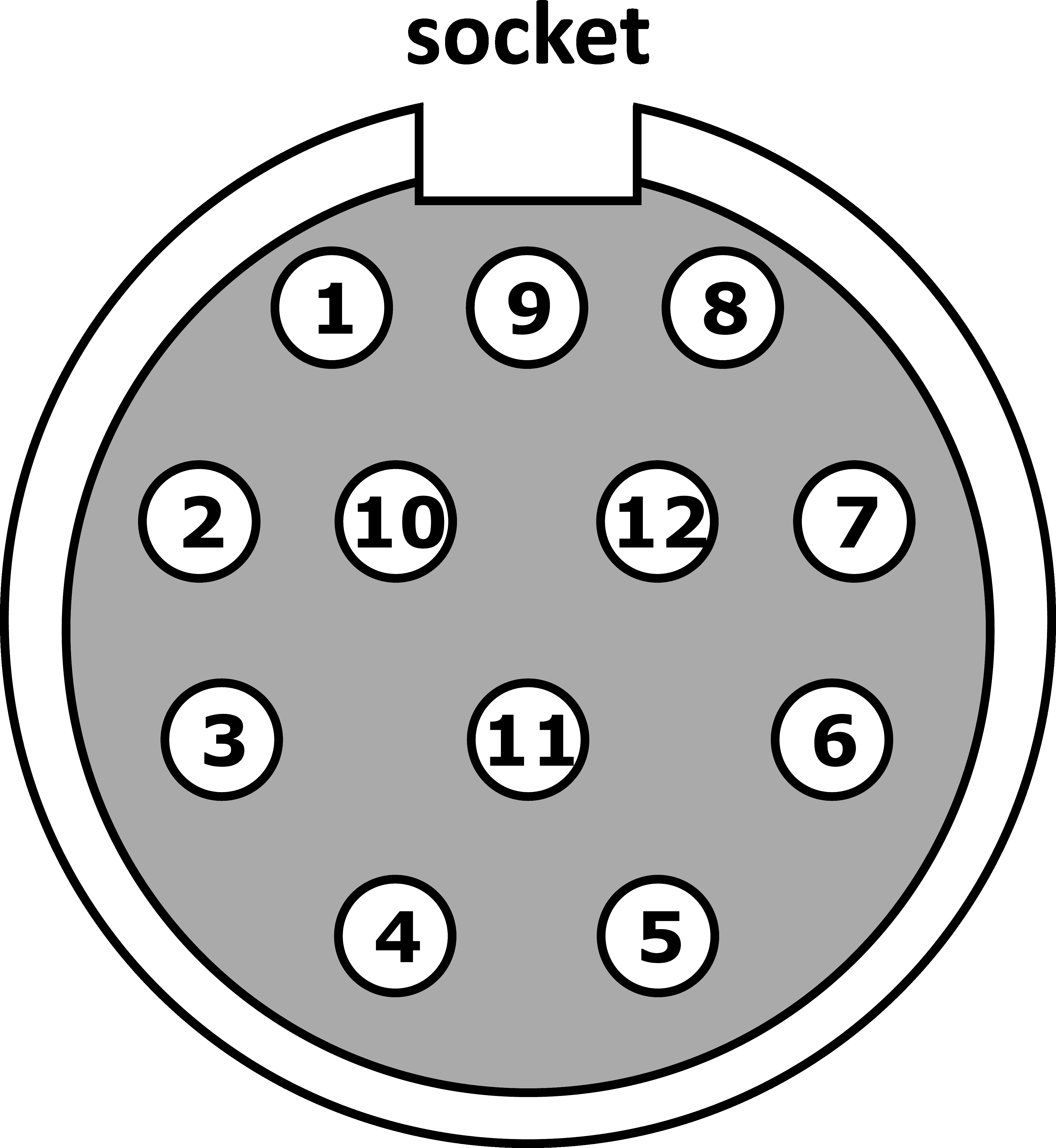

- Number of pins of A connection
- 12
- Ampacity
- 30A
Mechanical properties
- Wire cross section
- 1mm²
- Cable infeed
- straight
- Cable infeed of A connection
- straight
- Permitted cable diameter
- 5.8 - 6.2mm
Other properties
- Ambient temperature
- -40 - 105°C
| Classification | Class |
|---|---|
| eClass-7.0 | 27440102 |
| eClass-7.1 | 27440102 |
| eClass-8.0 | 27440102 |
| eClass-9.0 | 27440102 |
| eClass-9.1 | 27440102 |
| ETIM-6.0 | EC002062 |
| ETIM-7.0 | EC002062 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 26 x 120mm |
| gross weight | 80g |
| 0,2kg CO₂e | |
| Customs tariff number | 85369010 |
| WEEE number | 40951076 |
