Measuring transducer - Display
BA09A227
| amount | price | discount |
|---|---|---|
| 1 | 235,60 € | – |
| 5 | 228,53 € | 3% / 7,07 € |
| 10 | 223,82 € | 5% / 11,78 € |
| 20 | 216,75 € | 8% / 18,85 € |
| 50 | 207,33 € | 12% / 28,27 € |
On demand
Measuring transducer, Display, 24x48mm, 0-10V/4-20mA / 0 … 20 mA, 5 Digits, 10-30V DC, Clamp, IP20, LED
Compare
Measuring transducer - Display
Electrical properties
- Response/decay time
- 500ms
- Number of decades
- 5
- Type of analog input
- 0 - 20mA, 0 - 10V, 4 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Digital resolution
- 14Bit
- Setting procedure
- Parameterization
- Relative linearity deviation
- 0.01%
- Relative measurement accuracy
- 0.03%
- Temperature drift over entire measuring range
- 0.1%
- Resistance of current input
- 100Ohm
- Resistance of voltage input
- 1,000kOhm
- Display
- LED display, TFT display
- Operating voltage

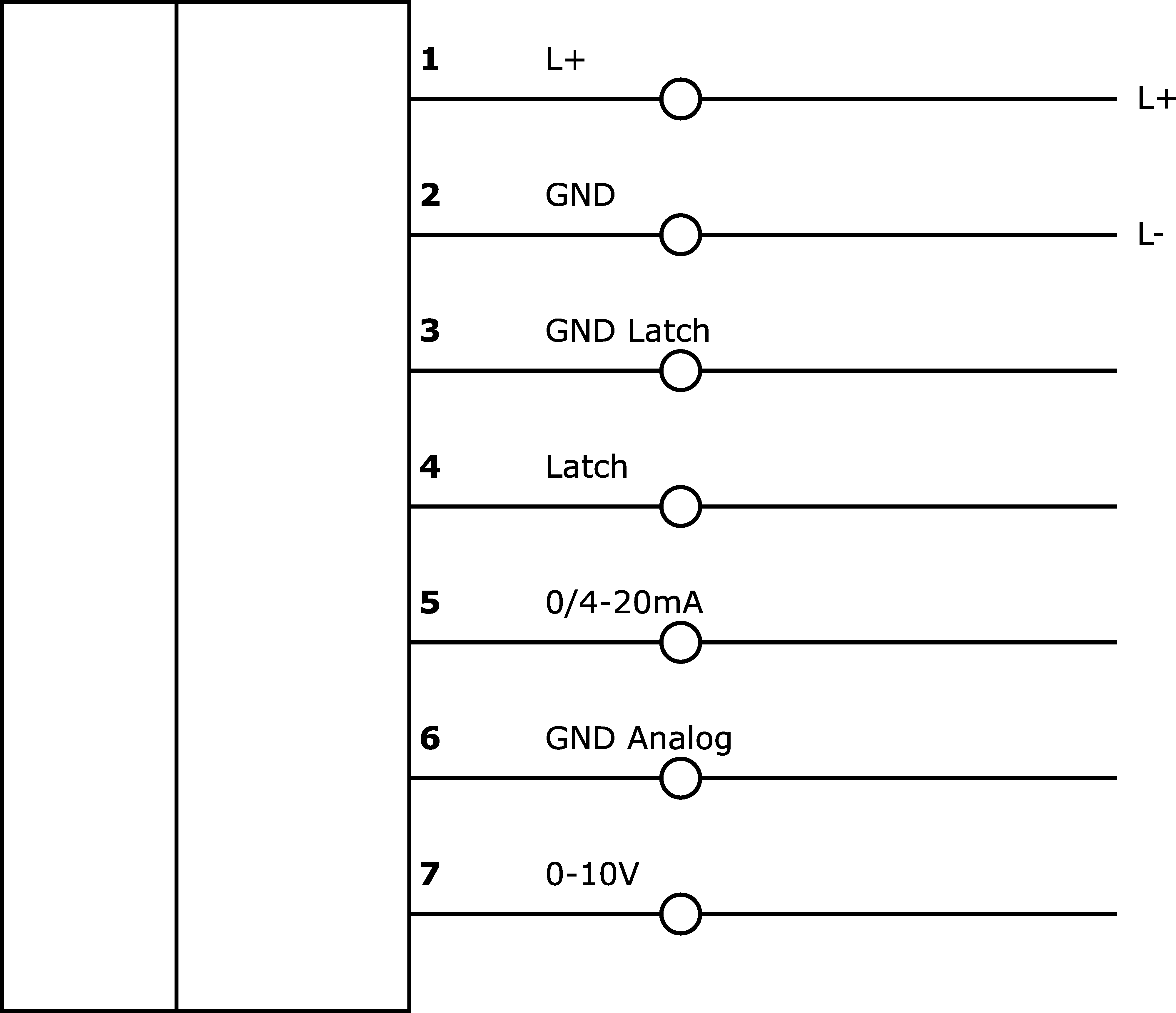

- Electrical connection
Mechanical properties
- Width
- 24mm
- Height
- 48mm
- Storage temperature
- -25 - 70°C
- Mounting method
- Panel mounting
- Degree of protection (IP)
- IP20
- Degree of protection (IP), front side
- IP65
- dimensions
Other properties
- Ambient temperature
- -10 - 50°C
Datasheets
Manuals
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 550 measuring transducer |
| packaging dimensions | 70 x 40 x 125mm |
| gross weight | 90g |
| 0,19kg CO₂e | |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
