Measuring transducer - Electricity meter
CS720002
On demand
Active energy meter, 90x72x64mm, 400V AC, 3-phase, direct, 80A, pulse output, Ethernet communication, MID, screw connection, IP20
Compare
Measuring transducer - Electricity meter
The CS720002 active energy meter is a modular energy meter that displays the energy (kWh, kVArh and kVA) and other measured values directly on a backlit LCD. The devices are designed for three-phase networks and can be connected directly up to 80 A. For easy recording of your consumption, the devices have an integrated Ethernet Modbus TCP communication output.
Electrical properties
- Number of outputs
- 1
- Type of electrical connection
- Clamped terminal connection
- Operating frequency
- 45 - 65Hz
- Setting procedure
- Parameterization
- Power consumption
- 7.5VA
- Max. continuous current
- 80A
- Max. switching current
- 0.02A
- Min. current load
- 250mA
- Supported communication interface
- Ethernet
- Display
- LCD display, LED display
- Accuracy
- Active energy (EN 50470) class B, Reactive energy (according to IEC 62053-22) Class 2
- Pulse output 27mA at 5-27VDC
- 30 x Imax 10ms
- Operating voltage

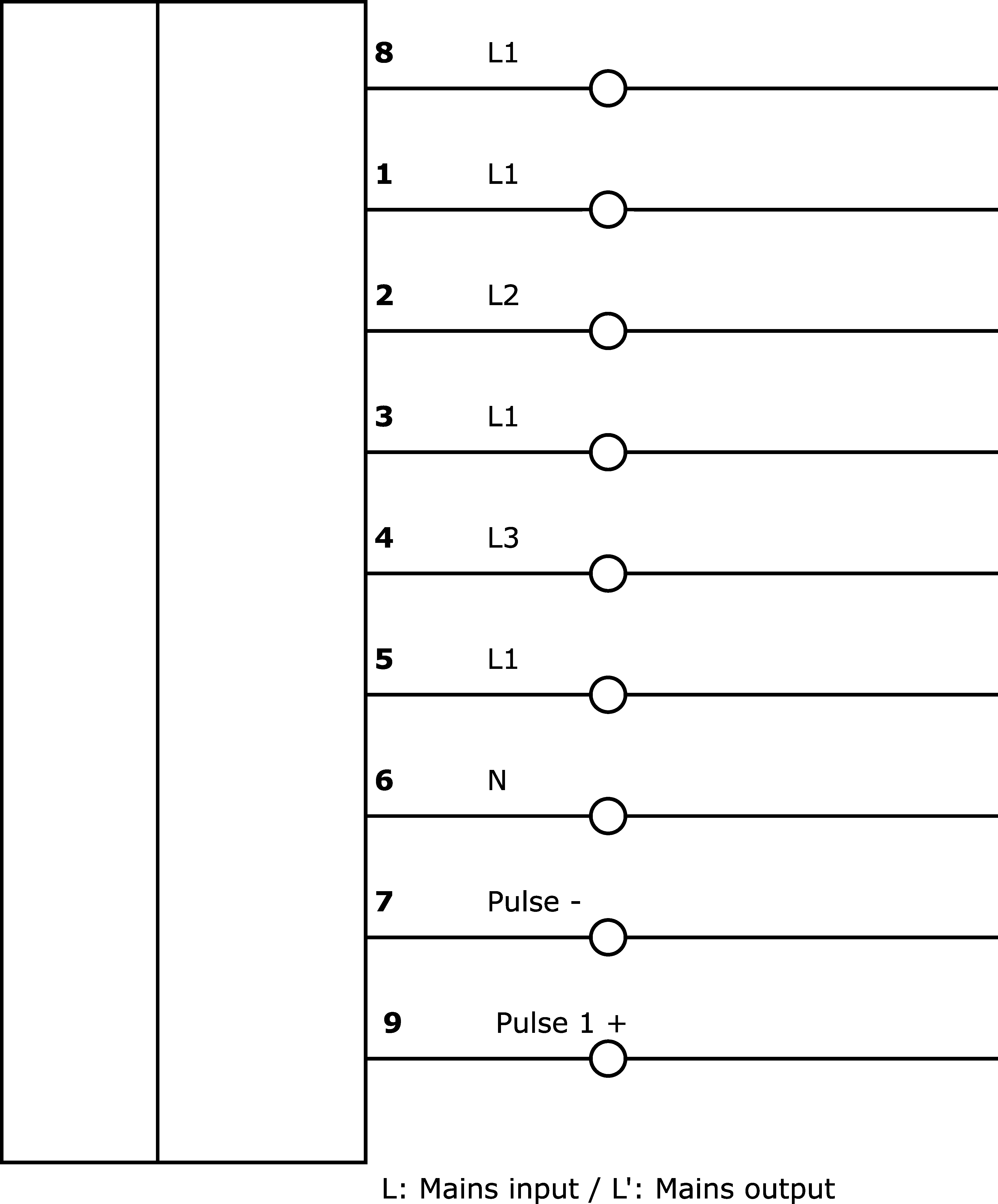

- Electrical connection
Mechanical properties
- Width
- 72mm
- Height
- 64mm
- Length
- 90mm
- Storage temperature
- -25 - 75°C
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic
- 1.5 - 35mm²
- dimensions
Other properties
- Relative air humidity (non-condensing)
- 0 - 80%
- Ambient temperature
- -25 - 55°C
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 730 special devices (diverse) |
| packaging dimensions | |
| 1,6kg CO₂e | |
| Customs tariff number | 90283019 |
| WEEE number | 40951076 |
