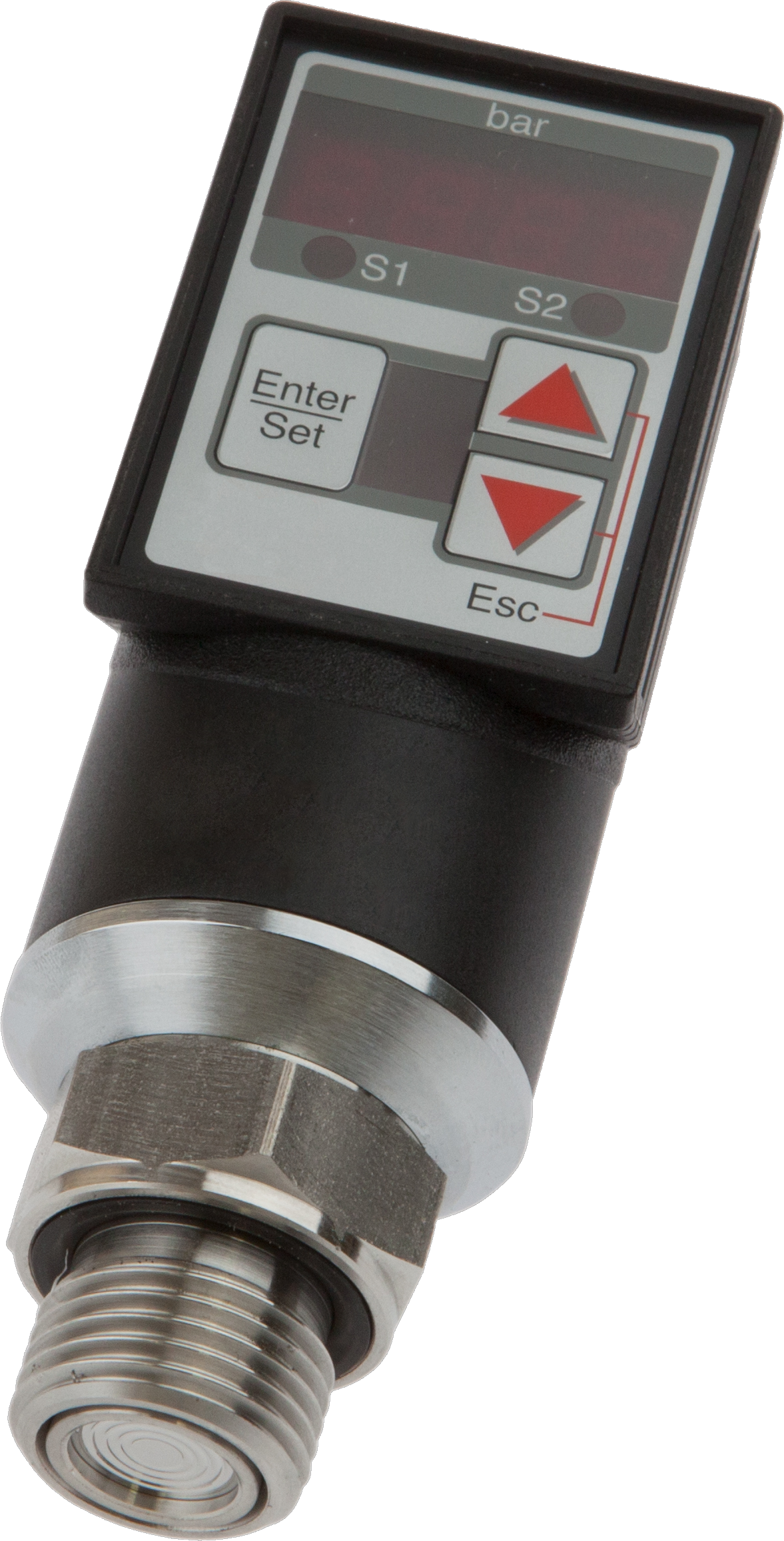

pressure sensor, Ø38mm 122long, -1-10bar, 12-32V DC, G1/2 inch A, 2x PNP NC/NO, 0-10V/4-20mA / 0 … 20 mA, Plug-in connection M12 8pin, IP65, PA 6.6 (synthetic), With display, Front-flush membrane
circuit diagram

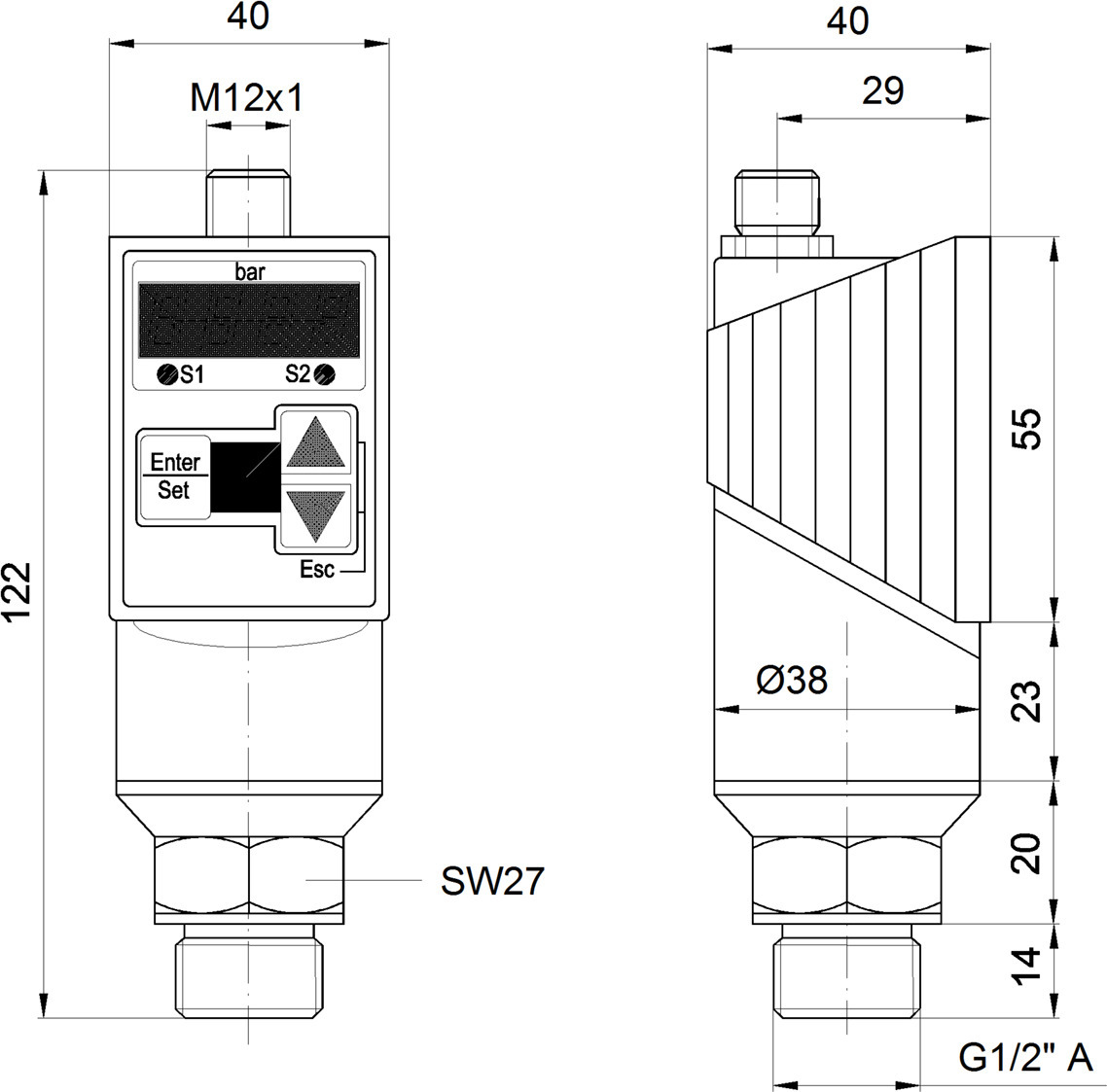

dimensional drawing
3D model
Compare

Pressure sensors - Pressure monitor

Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications.

Electrical properties

Initial setting
-1,000 - 1,200hPa
Response/decay time
5ms
Number of switching outputs
2
Type of switching function
Normally closed contact/normally open contact
Type of alarm output
PNP
Type of analog output
0 - 10V, 0 - 20mA, 4 - 20mA
Type of electrical connection
Connector M12
Type of switching output
PNP
Turn-off delay
0 - 20s
Rated switching current
250mA
Readiness delay
2,000ms
Turn-on delay
0 - 20s
Setting procedure
Application software, Parameterization
End setting
8,800 - 10,000hPa
Relative hysteresis
1%
No-load current
60mA
Measuring range pressure
-1 - 10bar
Measurement method
Absolute
Number of pins
8
Relative linearity deviation
0.25%
Relative repeat accuracy
0.1%
Switching frequency
125Hz
Voltage drop
2V
Temperature drift over entire measuring range
0.2%
Decay time
5ms
Damping (analog output)
20s
Damping (displayed value)
20s
Output functions
Window function, Switching point, Hysteresis
Display
LED display
Suitable as limiter
Yes
Suitable as monitor
Yes
Short circuit protection, Reverse polarity protection
Operating voltage
12-32VDC
Electrical connection
M12 8-pin plug connector

Mechanical properties

Type of process connection
G1/2 inch A
Design
Cylinder plain
Bursting pressure
600bar
Thread length
12mm
Thread pitch
1.81mm
Length
122mm
Max. operating pressure
15bar
Medium temperature
-20 - 80°C
Nominal pressure
10bar
Degree of protection (IP)
IP65
Housing material
PA 6.6 (synthetic)
Sensing element material
Stainless steel 1.4435
Diameter
38mm
Front-flush membrane
Yes
dimensions
Ø38mm, 122mm long

Other properties

Range of functions
Suitable for
Measuring display
Relative
Ambient temperature
-20 - 80°C
Hydraulic applications, Pneumatic applications
