DISCONTINUED PRODUCT

EL107170

EL107170
Successor model?
We would be pleased to advise you!

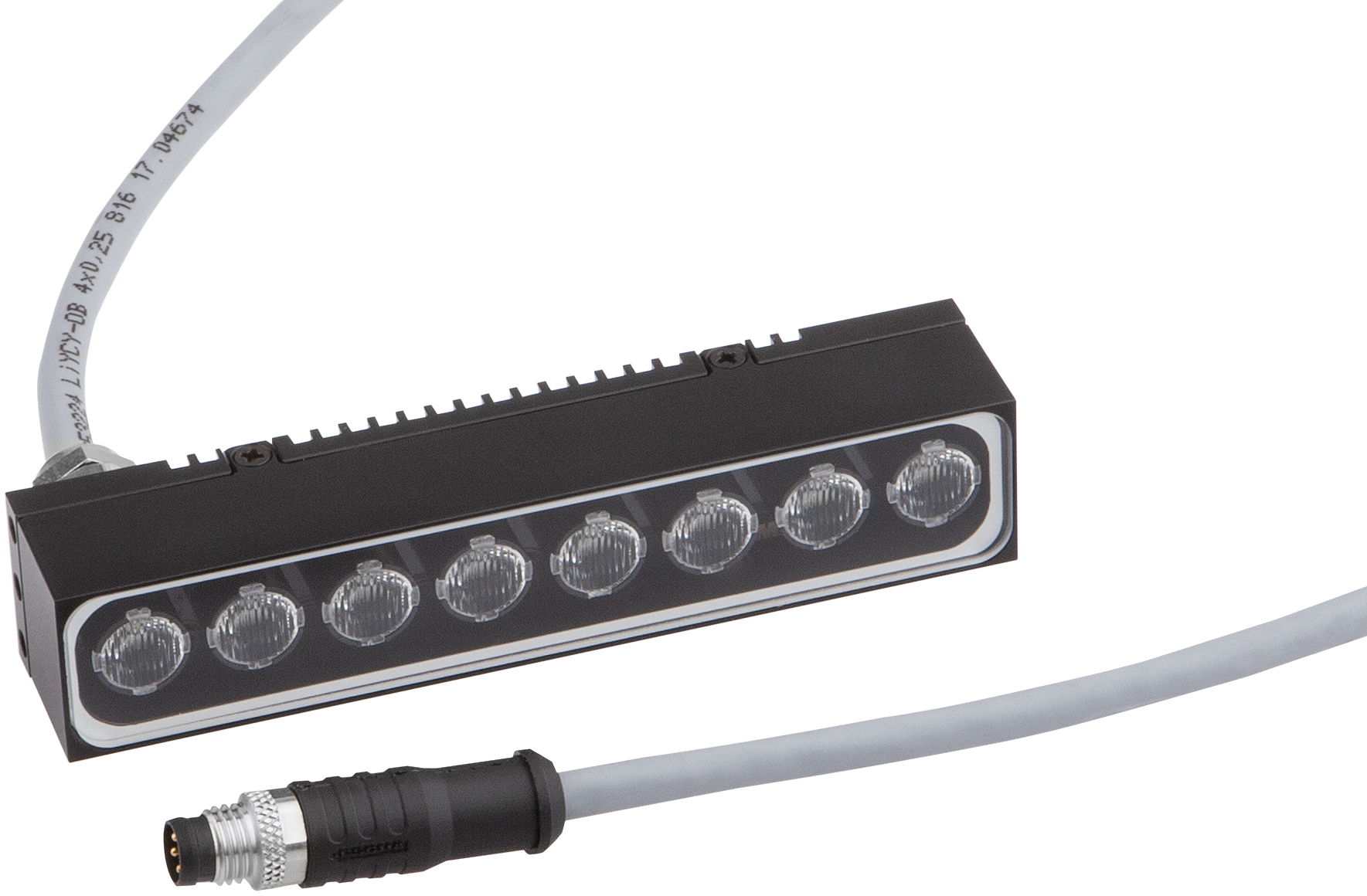

LED line light, camera, 20x100x20mm, white light, 25W, 6000K, 19-30V diagnostic coverage, M8 connector 4-pin, IP64, aluminum+PMMA
circuit diagram

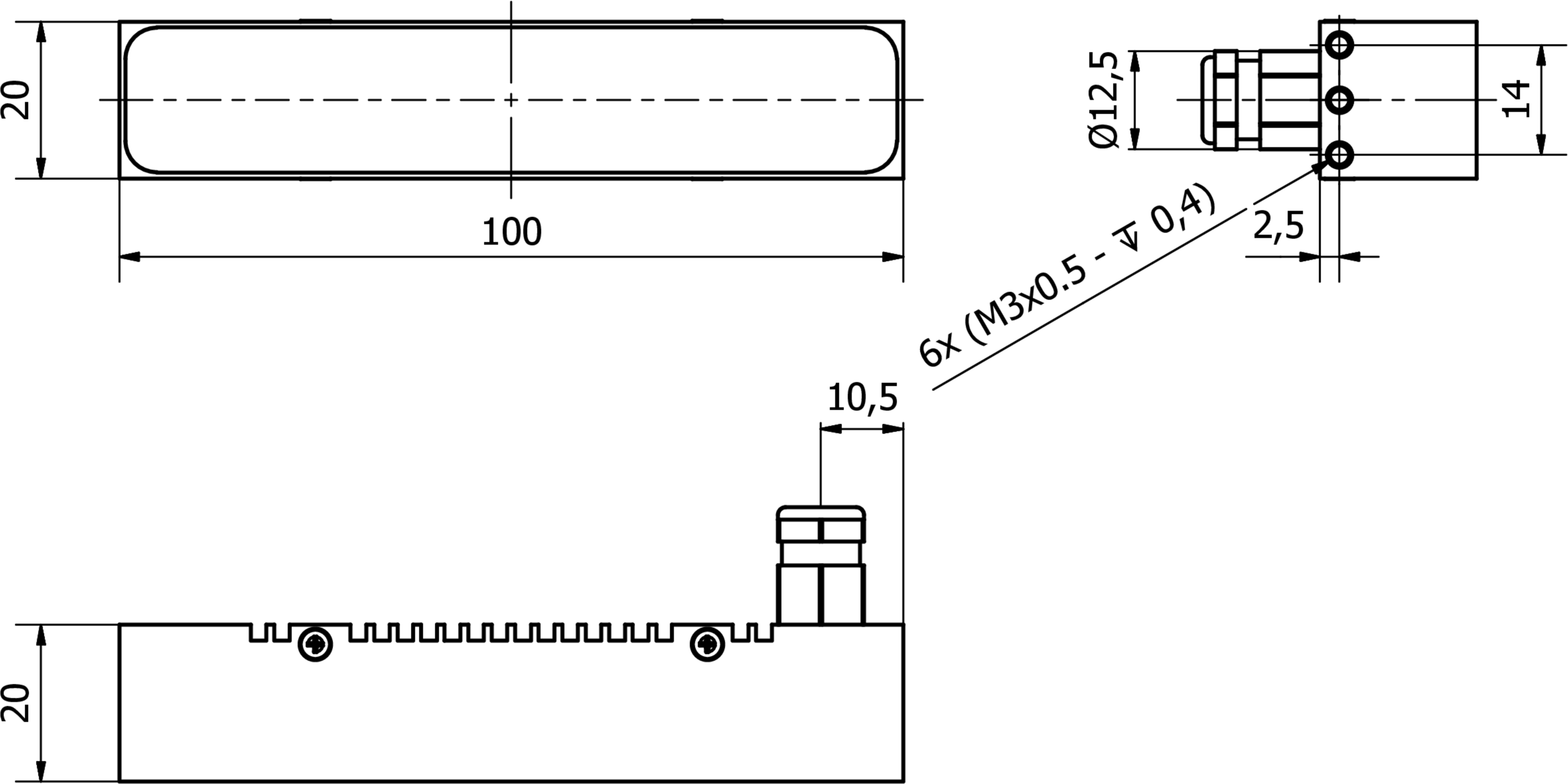

dimensional drawing
3D model
Compare

camera additional lighting - Line lights

For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.

Electrical properties

Type of electrical connection
Connector M8
Rated operating current
130mA
Flash controller
Required
Power
25W
Number of pins
4
Protection class
III

Mechanical properties

Design
Cuboid
Width
20mm
Height
20mm
Length
100mm
Degree of protection (IP)
IP64
Front screen scattering behavior
clear
Housing material
Aluminum
Front screen material
Polymethyl methacrylate

Optical properties

Number of LEDs
8
Color temperature
6,000K
Lamp
LED
Light source
White light
Angle of beam spread
80°

Other properties

Ambient temperature
5 - 45°C
You can find accessories for EL107170 in these product groups:

Connection technology

Cable sockets M8 4-wire

VK200371
VK200371
Connection cable, 2m, M8 socket 4-pin angular, free cable end, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C,…
14,80 €
Your price
Available
VK200375
VK200375
Connection cable, 2m, M8 socket 4-pin straight, free cable end, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C,…
14,80 €
Your price
Available
VK300375
VK300375
Connection cable, 3m, M8 4-pin, free cable end 4-pin, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C, IP67,…
16,60 €
Your price
Available
VK500371
VK500371
Connection cable, 5m, M8 socket 4-pin angular, free cable end 4-pin, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V,…
18,70 €
Your price
Available
VK500375
VK500375
Connection cable, 5m, M8 Female (socket) 4pin Straight, Free conductor end 4pin, 4x0.34mm², PUR (Polyurethane), Ø4.7mm,…
18,70 €
Your price
Available
VK50V371
VK50V371
Connection cable, 5m, M8 socket 4-pin angular, free cable end, 4x0.25mm², PUR/PVC, Ø4.2mm, 60V, -25-70°C, IP67
12,60 €
Your price
Available
VK50V375
VK50V375
Connection cable, 5m, M8 socket 4-pin straight, free cable end, 4x0.25mm², PUR/PVC, Ø4.2mm, 60V, -25-70°C, IP67
12,60 €
Your price
Available
VKA00371
VKA00371
Connection cable, 10m, M8 socket 4-pin angular, free cable end, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C,…
27,30 €
Your price
Available
VKA00375
VKA00375
Connection cable, 10m, M8 socket 4-pin straight, free cable end, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C,…
27,30 €
Your price
Available
VKAE0371
VKAE0371
Connection cable, 15m, M8 socket 4-pin angular, free cable end, 4x0.34mm², PUR (polyurethane), suitable for trailing…
34,00 €
Your price
Available
VKAE0375
VKAE0375
Connection cable, 15m, M8 socket 4-pin straight, free cable end, 4x0.34mm², PUR (polyurethane), suitable for trailing…
34,00 €
Your price
Available

Cable sockets M8 5-wire

VK505675
VK505675
Connection cable, 5m, M8 Female (socket) 5pin Straight, Free conductor end, 5x0.34mm², PUR (Polyurethane) Black, Ø5.6mm,…
101,10 €
Your price
Scarce

Cable sockets M8-socket M8-connector 4-wire

VK030F71
VK030F71
Connection cable, 0.3m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
15,90 €
Your price
Available
VK030F75
VK030F75
Connection cable, 0.3m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
13,90 €
Your price
Available
VK060F71
VK060F71
Connection cable, 0.6m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
16,20 €
Your price
Available
VK060F75
VK060F75
Connection cable, 0.6m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
14,30 €
Your price
Available
VK100F71
VK100F71
Connection cable, 1m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
16,50 €
Your price
Available
VK100F75
VK100F75
Connection cable, 1m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
15,30 €
Your price
Available
VK150F71
VK150F71
Connection cable, 1.5m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
16,90 €
Your price
Scarce
VK150F75
VK150F75
Connection cable, 1.5m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
16,60 €
Your price
Scarce
VK200F71
VK200F71
Connection cable, 2m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
18,70 €
Your price
Available
VK200F75
VK200F75
Connection cable, 2m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
18,10 €
Your price
Available
VK300F75
VK300F75
Connection cable, 3m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
19,20 €
Your price
Available
VK500F71
VK500F71
Connection cable, 5m, M8 socket 4-pin angular, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
23,00 €
Your price
On demand
VK500F75
VK500F75
Connection cable, 5m, M8 socket 4-pin straight, M8 connector 4-pin straight, 4-core, PUR (polyurethane), suitable for…
22,20 €
Your price
Available
Classification Class
eClass-7.0 27310204
eClass-7.1 27310204
eClass-8.0 27310204
eClass-9.0 27310204
eClass-9.1 27310204
ETIM-6.0 EC000348
ETIM-7.0 EC000348
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 915 camera illumination
packaging dimensions
Customs tariff number 94054239
WEEE number 40951076
