| amount | price | discount |
|---|---|---|
| 1 | 206,00 € | – |
| 5 | 199,82 € | 3% / 6,18 € |
| 10 | 195,70 € | 5% / 10,30 € |
| 20 | 189,52 € | 8% / 16,48 € |
| 50 | 181,28 € | 12% / 24,72 € |

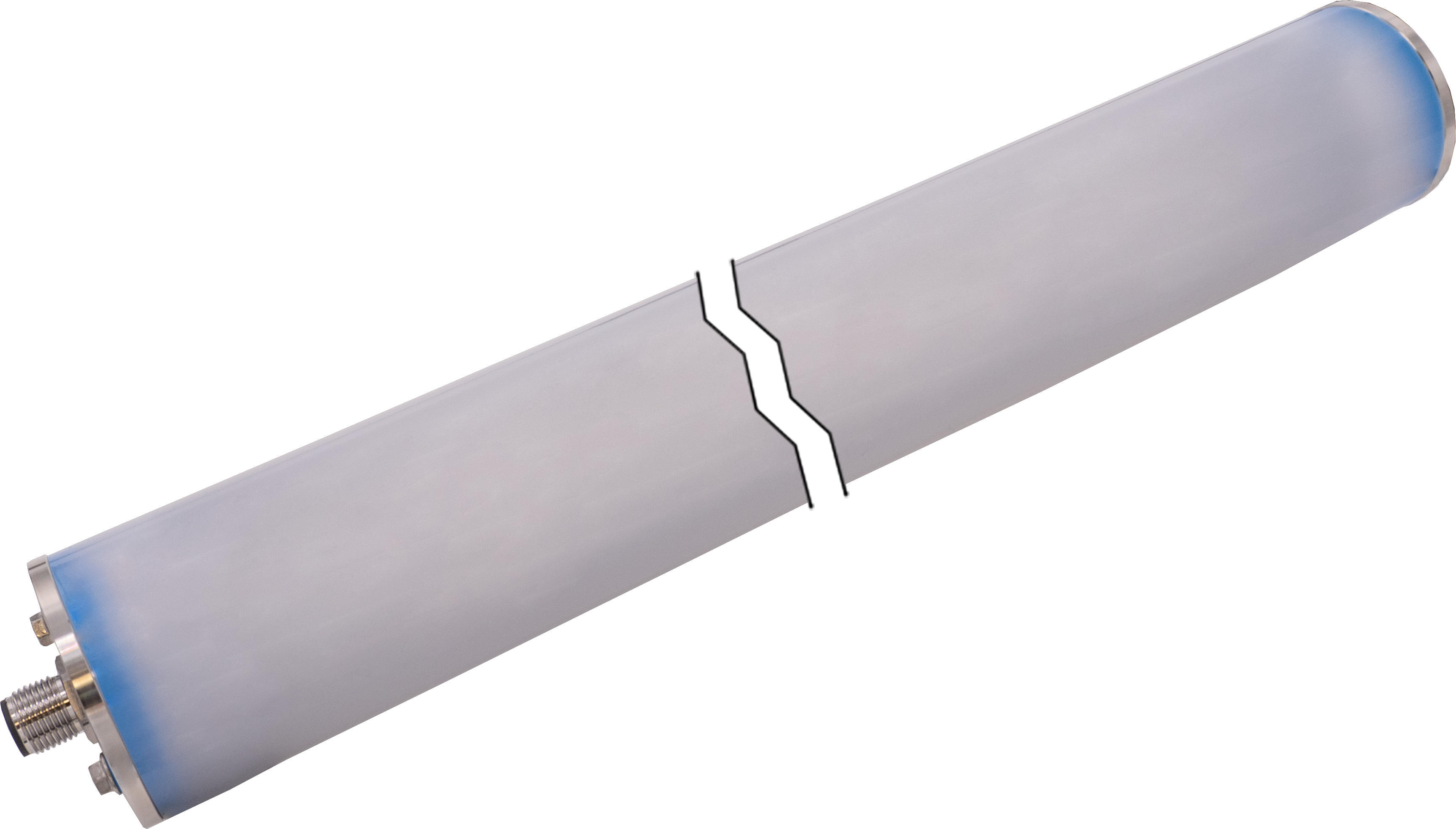

These rugged and compact high-power LED surface-mounted lights impress with their high performance.
Thanks to their polycarbonate housing, the luminaires are suitable for use in production environments in the food and pharmaceutical industries.

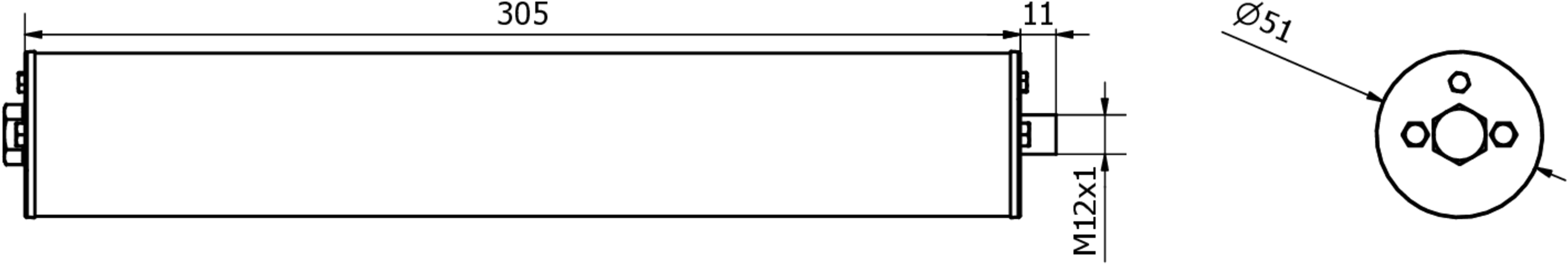

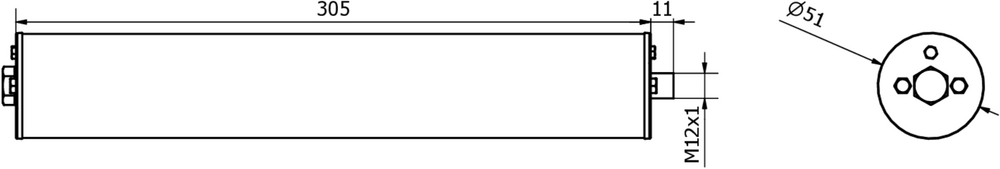

The luminaire diameter is 50 mm. The special stainless steel end caps also serve to dissipate heat. The luminaires can be used at ambient temperatures up to 50 °C.
The 100° angle of emitted beam ensures that a large area is evenly illuminated.
The color temperature is 5,700 K. The use of SMD LEDs produces uniform, flicker-free light.
Holders made of PP/V4A (AO000562) are available for the lights. Alternatively, the AE000048 and AE000049 holders are also available for mounting.
The connection is via an M12-connector made of V4A. The positive terminal of the voltage supply can be connected via PIN 1 (brown) or PIN 4 (black).
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 82 x 80 x 400mm |
| gross weight | 710g |
| 2,21kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
