ES460720
On demand
LED incident light, 56x46x46mm, red light, 6W, 525nm, 13° angle of emitted beam, 24V DC, M12 connector 5pin, IP54, aluminum+PMMA
Compare
camera additional lighting - Spotlights
For inspection tasks of any kind with a camera sensor, the selection of the right illumination is essential, since only high-contrast images can be reproducibly evaluated. And here the illumination has the decisive influence. The selection depends on various factors such as the distance to the test object, its size, the component criterion to be tested or the expected environmental conditions.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 600mA
- Flash controller
- internal
- Power
- 6W
- Max. peak current
- 1,500mA
- Number of pins
- 5
- Protection class
- III
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 22.8 - 25.2V
- Integrated flash controller for external illumination
- Yes
Mechanical properties
- Width
- 46mm
- Height
- 56mm
- Length
- 46mm
- Degree of protection (IP)
- IP54
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polycarbonate
- Working distance range
- 100 - 700mm
Optical properties
- Number of LEDs
- 1
- Lamp
- LED
- Light source
- Polarity free red light
- Angle of beam spread
- 13°
- Wavelength of the sensor
- 617nm
Other properties
- Relative air humidity (non-condensing)
- 30 - 70%
- Risk group
- 2
- Ambient temperature
- 10 - 30°C
- Operational mode
- Permanent operation, Switching operation, Flash operation
- spotlight
You can find accessories for ES460720
in these product groups:
Direct connection cable for OC53 with flash controller
Mounting for ES46
Scarce
Cable sockets M12 4-wire
Datasheets
Drawings
-
jpgBlueprintJPG-file, 348 KB
-
dwg2DDWG-file, 367 KB
-
stp3DSTP-file, 2.7 MB
-

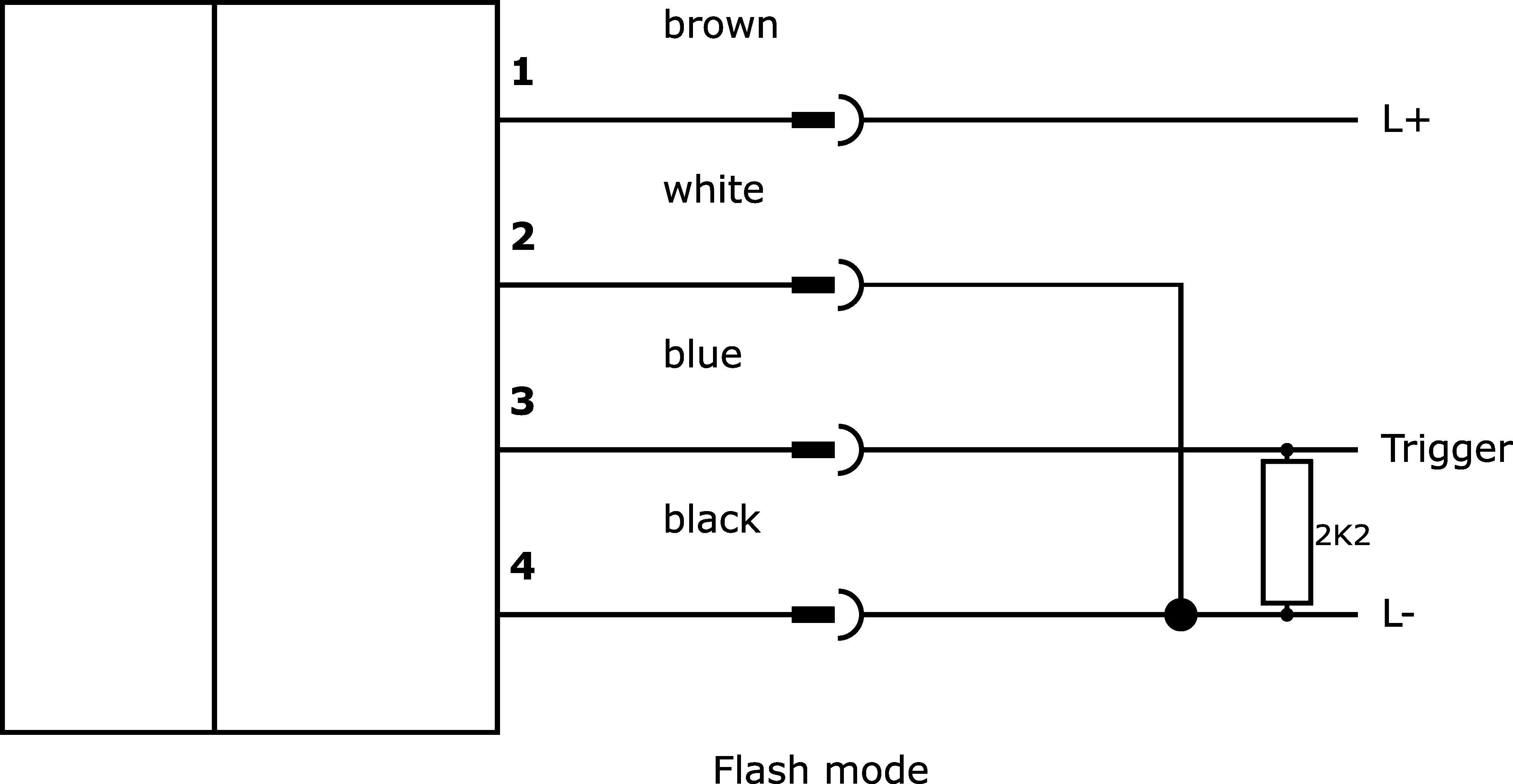

pngWiring diagram - internetPNG-file, 14 KB
