Connection technology - Cable sockets / connectors pre-assembled on two sides

VK06F004

VK06F004
List price
50,00 €
Available
Line for camera illumination in flash mode to OC53 with internal flash controller, 0.6m, M8 male 4pin straight, M12 female 4pin straight, 4 wires
circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on two sides

ipf cable boxes are mainly used to establish the electrical connection of sensors. Their characteristics are characterized by the robust version, in highest protection classes (IP67 | IP68 | IP69K) and on request with 360° shielding. With the features: bus-compatible, drag chain and robot-compatible, oil-, chemical-, welding spark-resistant, their detergent-resistant or resistance to high-pressure and steam jet cleaning, the extended temperature range up to +230°C, the rapid interconnection (technology) or special data transmission properties, the cable boxes meet all requirements of automation technology.

Electrical properties

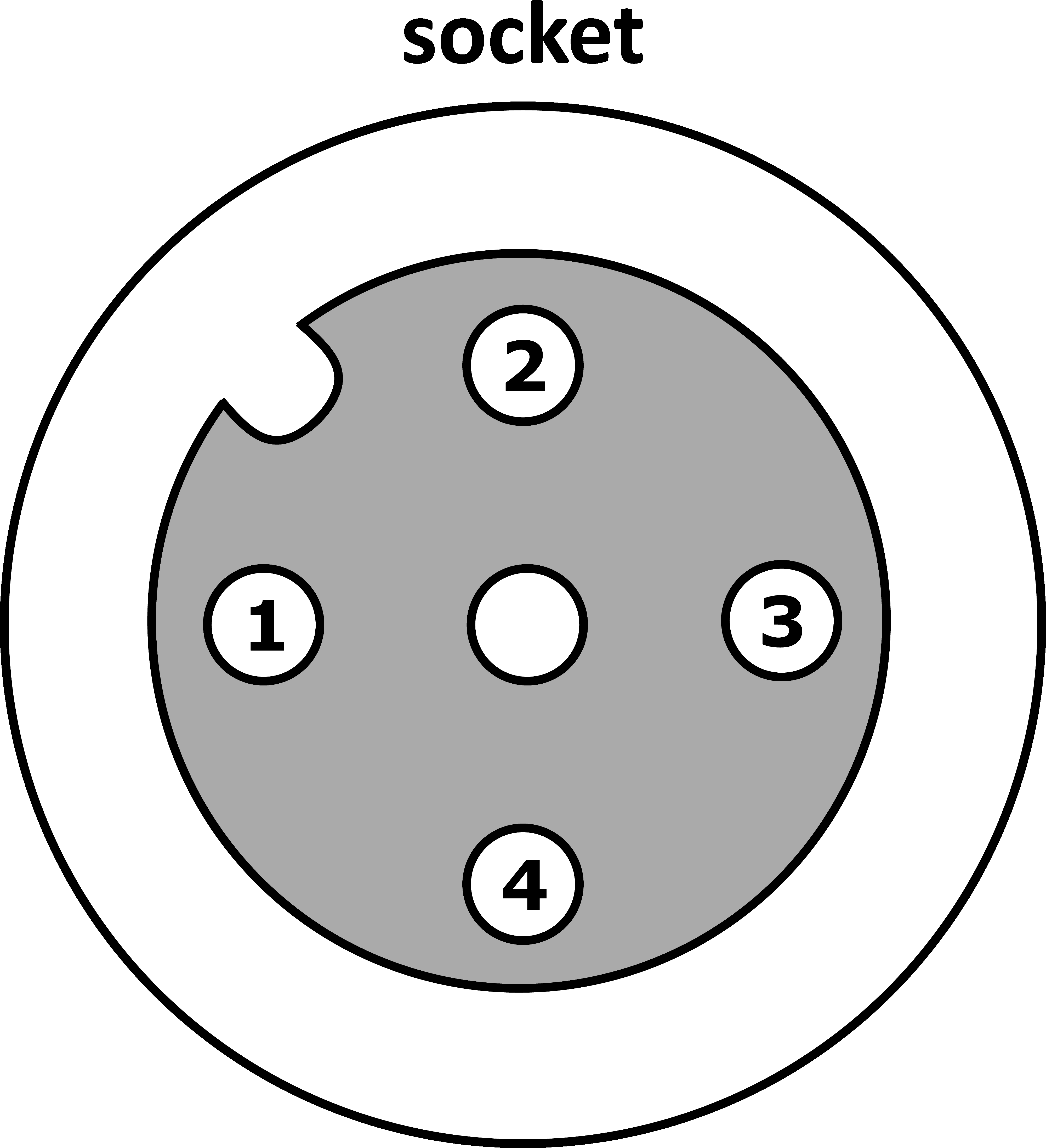

Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
M8
Number of pins of A connection
4
Number of pins of B connection
4

Mechanical properties

Wire assembly
42 x 0.1mm
Number of cores
4
Cable length
0.6m
Cable infeed of A connection
straight
Cable infeed of B connection
straight

Other properties

Connection cable
Print data
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 914 accessories camera sensors
packaging dimensions 16.2 x 6 x 24.2mm
gross weight 43g
Customs tariff number 85444290
WEEE number 40951076
