Filling level sensors - guided microwave
FM910323
| amount | price | discount |
|---|---|---|
| 1 | 528,40 € | – |
| 5 | 512,55 € | 3% / 15,85 € |
| 10 | 501,98 € | 5% / 26,42 € |
| 20 | 486,13 € | 8% / 42,27 € |
| 50 | 464,99 € | 12% / 63,41 € |
On demand
Filling level sensor, microwave, 3/4" 425long, G3/4", 20-27V DC, PNP programmable/configurable, M12 plug connector 4-pin, aluminum+stainless steel 1.4571, IP67, probe 2x Ø4mm 300long, parameterization
Compare
Filling level sensors - guided microwave
Filling level and level sensors operate according to different measuring principles. The selection of the sensor depends on the medium to be detected and the ambient conditions. The material flow in a vibratory bowl can be excellently queried with inductive filling level sensors whose pendulum is moved by the material in the pot. The detection of liquid or solid media is, for instance, possible with capacitive filling level sensor technology. These work according to the principle of the condensator, the medium changes the dielectricity between two electrodes. The resulting change is converted into a digital output signal. A further alternative for the detection of filling levels of conductive media is provided by conductive filling level relays. The resistance between reference and measuring electrode is determined. If a set threshold is exceeded, a relay output switches.
Electrical properties
- Number of switching outputs
- 2
- Type of switching function
- Programmable/configurable
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Parameterization
- No-load current
- 45mA
- Number of pins
- 4
- Voltage drop
- 2V
- Measurement principle
- Microwave
- Output functions
- Switching point, Hysteresis
- Display
- LED display
- Relative permittivity (εr) of the medium ≥
- 2.3
- Short circuit protection, Reverse polarity protection
- Operating voltage

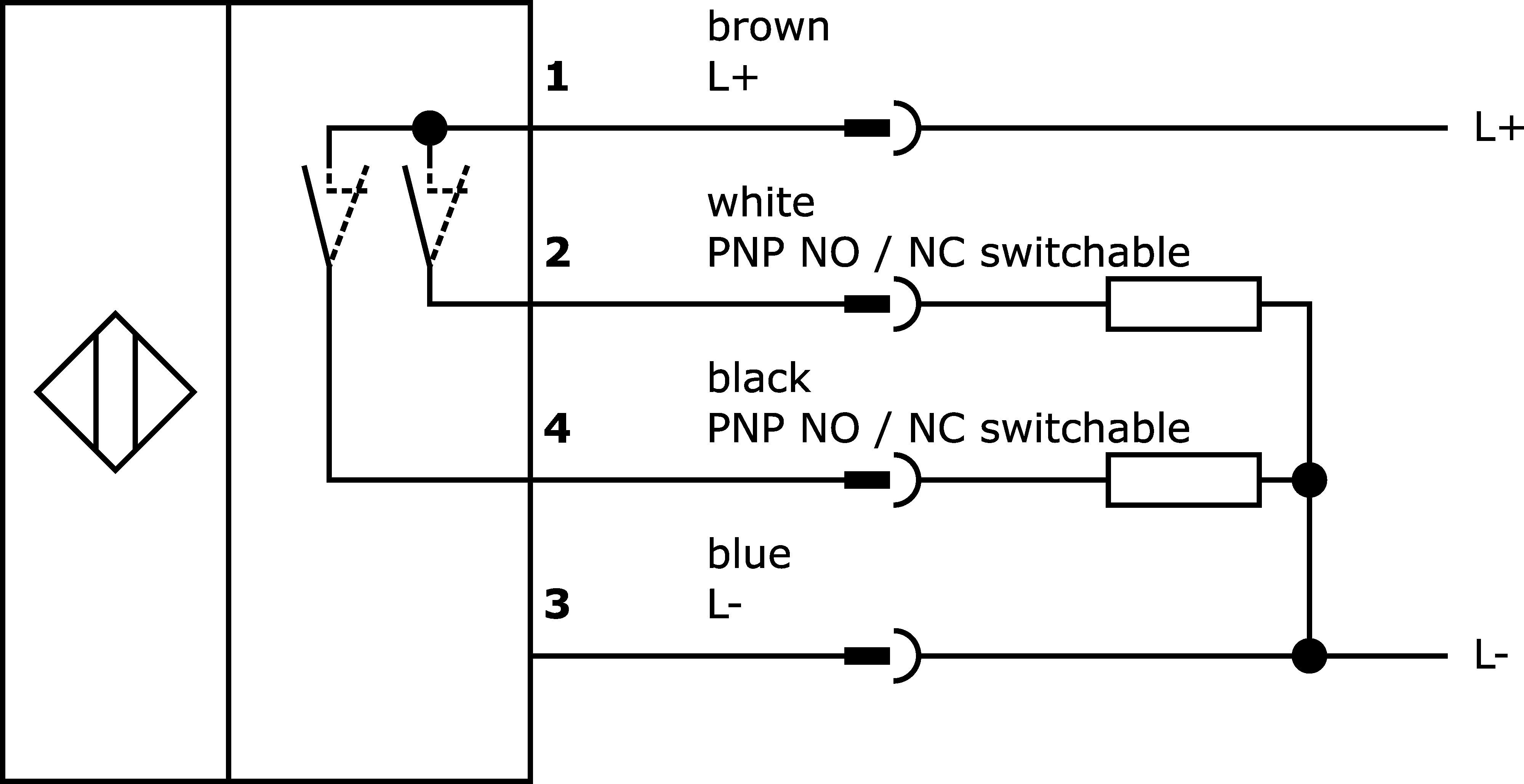

- Electrical connection
Mechanical properties
- Type of process connection
- G3/4 inch
- Design
- Round
- Pressure resistance
- 10bar
- Probe diameter
- 4mm
- Thread length
- 12mm
- Length
- 425mm
- Probe length
- 300mm
- Medium temperature
- 0 - 80°C
- Wrench size
- 32mm
- Degree of protection (IP)
- IP67
- Housing material
- Aluminum
- Sensing element material
- Stainless steel 1.4571
- Seal material at process connection
- Plastic (NBR), AFM 34
- Stainless steel 1.4571, Plastic (PTFE), Plastic (POM)
- dimensions
Other properties
- Ambient temperature
- 0 - 70°C
- Version
- parallel
You can find accessories for FM910323
in these product groups:
Assembly
Mounting accessories for lights 64x80
Connection technology
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire with LED
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27371813 |
| eClass-7.1 | 27371813 |
| eClass-8.0 | 27371813 |
| eClass-9.0 | 27371813 |
| eClass-9.1 | 27371813 |
| ETIM-6.0 | EC001447 |
| ETIM-7.0 | EC001447 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 350 filling level sensors (capacitive/conductive) |
| packaging dimensions | 100 x 80 x 700mm |
| gross weight | 705g |
| 3,39kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
