AY000155
accessories sensor, Clamp sleeve, M12x1 32long, Brass White bronze
Available
Inductive sensors - Norm switching distance
IB080204
| amount | price | discount |
|---|---|---|
| 1 | 68,10 € | – |
| 5 | 66,06 € | 3% / 2,04 € |
| 10 | 64,70 € | 5% / 3,41 € |
| 20 | 62,65 € | 8% / 5,45 € |
| 50 | 59,93 € | 12% / 8,17 € |
Available
sensor inductive, M8x1 35long, Flush, Sn: 1.5, 10-30V DC, PNP NC, Cable 2m PVC, IP67, Stainless steel 1.4305
including 2x Nut
Compare
Inductive sensors - Norm switching distance
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

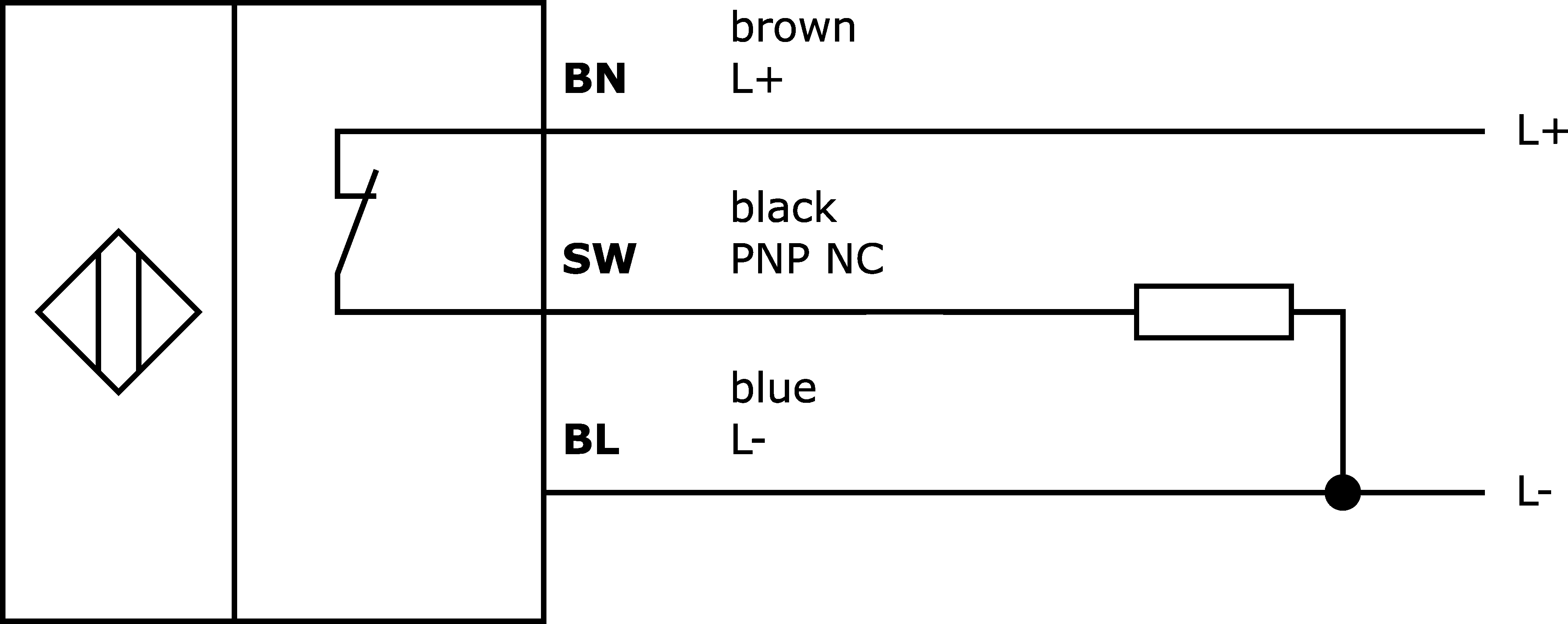

Electrical properties
- Type of switching function
- Normally closed contact (NC)
- Type of electrical connection
- Cable
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Relative hysteresis
- 15%
- Correction factor (aluminum)
- 0.3
- Correction factor (copper)
- 0.2
- Correction factor (brass)
- 0.4
- Correction factor (St37)
- 1
- Correction factor (stainl. steel)
- 0.7
- Short-circuit protection
- Yes
- No-load current
- 15mA
- Line diameter
- 3.5mm
- Relative repeat accuracy
- 10%
- Switching distance
- 1.5mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 10 - 30V
- Display
- LED display
Mechanical properties
- Number of cores
- 3
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Thread length
- 35mm
- Thread pitch
- 1mm
- Cable length
- 2m
- Cable infeed
- axial
- Length
- 35mm
- Mechanical mounting condition for sensor
- flush
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PBT)
- Housing material
- Stainless steel 1.4305
- Material of cable sheath
- Plastic (PVC)
- Thread dimension
- M8
Other properties
- Ambient temperature
- -25 - 70°C
- Reference medium / object
- Standard measuring plate FE360 8x8x1mm
You can find accessories for IB080204
in these product groups:
Clamp holder for IB08
Protection cap, teflon M8
Cable connectors M8 4-pin field-attachable
Cable connectors M8 3-pin field-attachable
Mounting system for AY000115
Available
Mounting system, cylindrical, M8
Available
Sheath
Cable connectors M12 4-pin field-attachable
Logic module top hat rail
Sensor tester
Inverters – terminal
Fixing material design M8
Available
Available
Plunger adapter for sensors IB08
Available
Power supply 24V DC / 2 – 10A
Power supply 24V DC / 100mA switching amplifier
Datasheets
Drawings
Product Compliance
-
pdfUL declaration of conformityPDF-file, 433 KB
-
pdfCSA declaration of conformityPDF-file, 433 KB
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 481 KB
-
pdfCE declaration of conformityPDF-file, 255 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
Miscellaneous
Links
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 60g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
