Inductive sensors - Switching amplifiers
IV98E142
| amount | price | discount |
|---|---|---|
| 1 | 174,00 € | – |
| 5 | 168,78 € | 3% / 5,22 € |
| 10 | 165,30 € | 5% / 8,70 € |
| 20 | 160,08 € | 8% / 13,92 € |
| 50 | 153,12 € | 12% / 20,88 € |
Scarce
amplifier inductive, 122x100x22mm, 24V DC, Change-over contact (NO/NC), Clamp, IP40, Plastic, ATEX, With LED display
Compare
Inductive sensors - Switching amplifiers
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Number of channels
- 1
- Number of contacts as change-over contact
- 1
- Type of switching function
- Change-over contact (NO/NC)
- Type of electrical connection
- Clamped terminal connection
- Rated switching current
- 4,000mA
- Input voltage tolerance
- 10%
- Switching voltage
- 250V
- Switching voltage AC
- 230V
- Switching voltage DC
- 24V
- Max. outer inductivity
- 5mH
- Max. outer capacity
- 0.84µF
- Display
- LED display
- Operating voltage

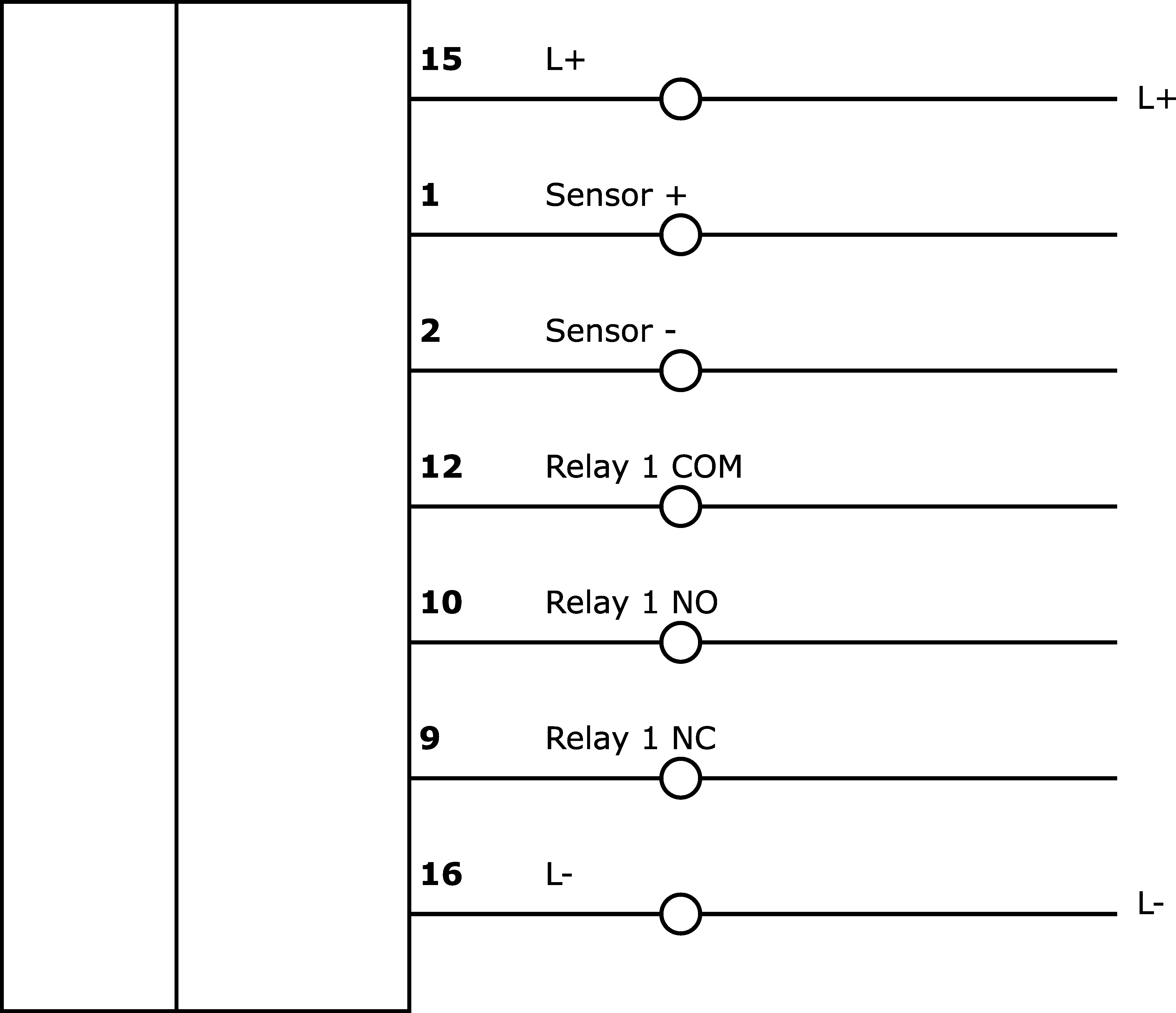

- Electrical connection
Mechanical properties
- Design
- Cuboid
- Width
- 22.5mm
- Height
- 122mm
- Length
- 100mm
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP40
- Housing material
- Plastic
- dimensions
Other properties
- ATEX product marking, gas
- Ex II (1)G [Ex ia Ga] IIC
- ATEX product marking, dust
- Ex II (1)D [Ex ia Ga] IIIC
- Ambient temperature
- -20 - 60°C
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 326 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer unique sensor solutionsPDF-file, 2.6 MB
-
pdfFlyer inductive sensorsPDF-file, 16 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27210121 |
| eClass-7.1 | 27210121 |
| eClass-8.0 | 27210121 |
| eClass-9.0 | 27210121 |
| eClass-9.1 | 27210121 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| ATEX-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 202 inductive sensors (high temperature) |
| packaging dimensions | 138 x 95 x 210mm |
| gross weight | 183g |
| 0,99kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
