AY000025
accessories, Hexagon nut, M12x1, Wrench size 17mm, Brass Nickel-plated
Available
Magnetic field sensors - Proximity switches
MC120125
| amount | price | discount |
|---|---|---|
| 1 | 502,60 € | – |
| 5 | 487,52 € | 3% / 15,08 € |
| 10 | 477,47 € | 5% / 25,13 € |
| 20 | 462,39 € | 8% / 40,21 € |
| 50 | 442,29 € | 12% / 60,31 € |
Scarce
sensor magnetic, all-steel, M12x1 72long, Sn: 40mm, 10-30V DC, 1x PNP NO, Connector M12 4pin, IP67, Stainless steel 1.4305, LED, 2.8mT, teach-in
including Nut
Compare
Magnetic field sensors - Proximity switches
Magnetic proximity switches are contact-free sensors. They detect magnetic objects and - or magnets, regardless of whether they move or not. Since magnetic fields penetrate all non-magnetizable materials, the sensors can detect magnets through walls made of nonferrous heavy metal, stainless steel, aluminum, plastic, wood or through excessive sailing, for instance. The achievable sensing range of the devices depends on the strength of the affecting magnetic field. Magnetic sensors are used for positioning (e.g. position checks on hoisting gear), speed checks (e.g. on conveyor belts or transmission cog wheels through the aluminum housings) or for position detection (e.g. of goods carriers).
Electrical properties
- Number of switching outputs
- 1
- Type of switching function
- Normally open contact (NO)

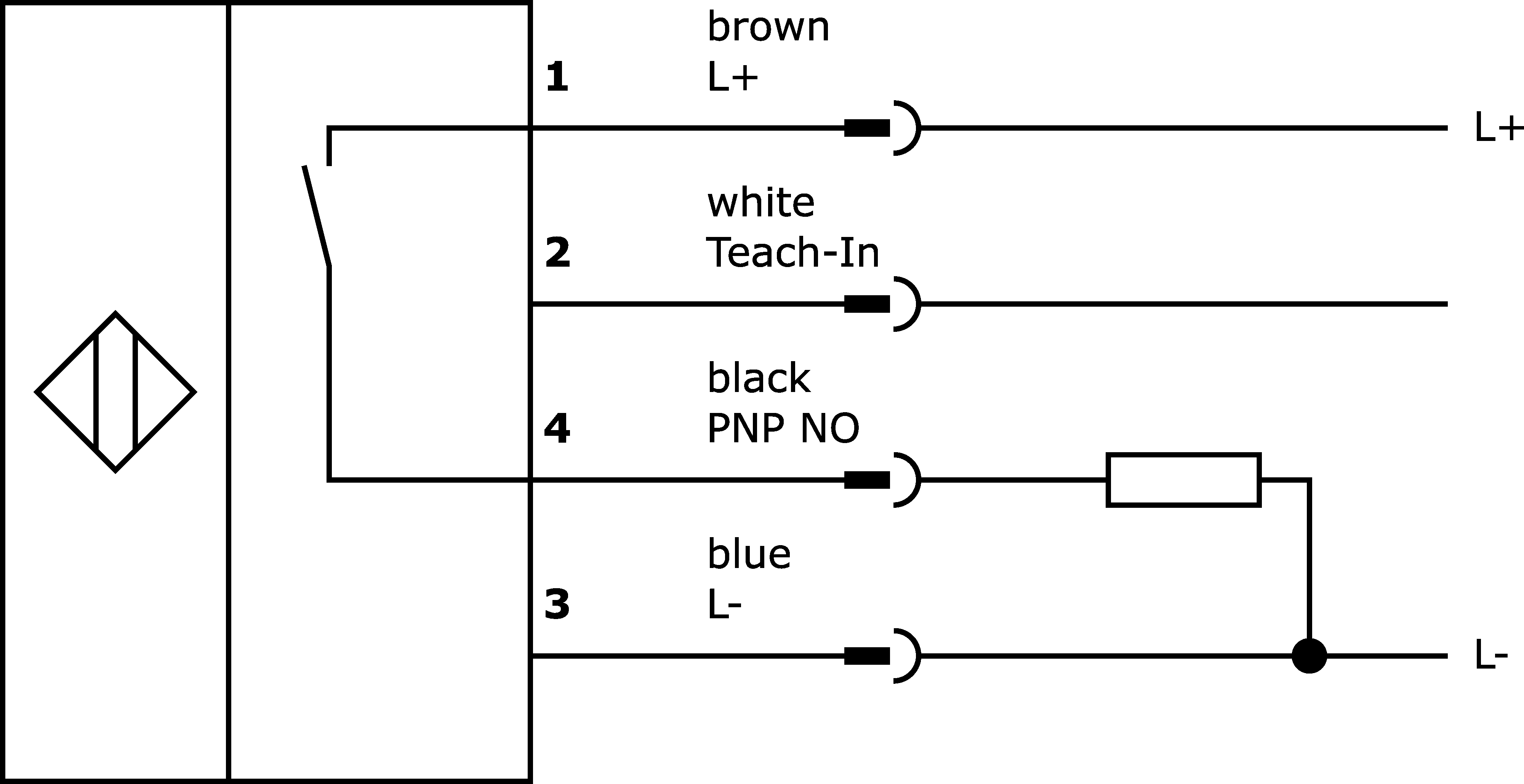

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Teach-In
- Absolute hysteresis
- 6mm
- No-load current
- 20mA
- Magnetic sensitivity
- 2.8mT
- Number of pins
- 4
- Switching distance
- 40mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Output functions
- Switching point
- Display
- LED display
- Short circuit protection
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 45mm
- Thread pitch
- 1mm
- Length
- 72mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Stainless steel 1.4305
- Housing material
- Stainless steel 1.4305
- Thread dimension
- M12
- Diameter
- 12mm
Other properties
- Ambient temperature
- -25 - 70°C
- Harsh environmental conditions
- Yes
You can find accessories for MC120125
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system, cylindrical, M12
Available
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-pin Field-attachable with LED
Cable sockets M12 4-wire
Cable sockets M12 4-wire shielded
Cable sockets M12 4-wire with LED
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Other sensors
Magnets for magnetic proximity switches
Available
Power supply 24V DC / 100mA switching amplifier
Tool
Sensor tester
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270104 |
| eClass-7.1 | 27270104 |
| eClass-8.0 | 27270104 |
| eClass-9.0 | 27270104 |
| eClass-9.1 | 27270104 |
| ETIM-6.0 | EC002544 |
| ETIM-7.0 | EC002544 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 230 magnetic sensors |
| packaging dimensions | 100 x 17 x 120mm |
| gross weight | 40g |
| 0,05kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
