Temperature sensors - contactless measurement (infrared)

OI98C558

List price

702,00 €

amount	price	discount
1	702,00 €	–
5	680,94 €	3% / 21,06 €
10	666,90 €	5% / 35,10 €
20	645,84 €	8% / 56,16 €
50	617,76 €	12% / 84,24 €

On demand

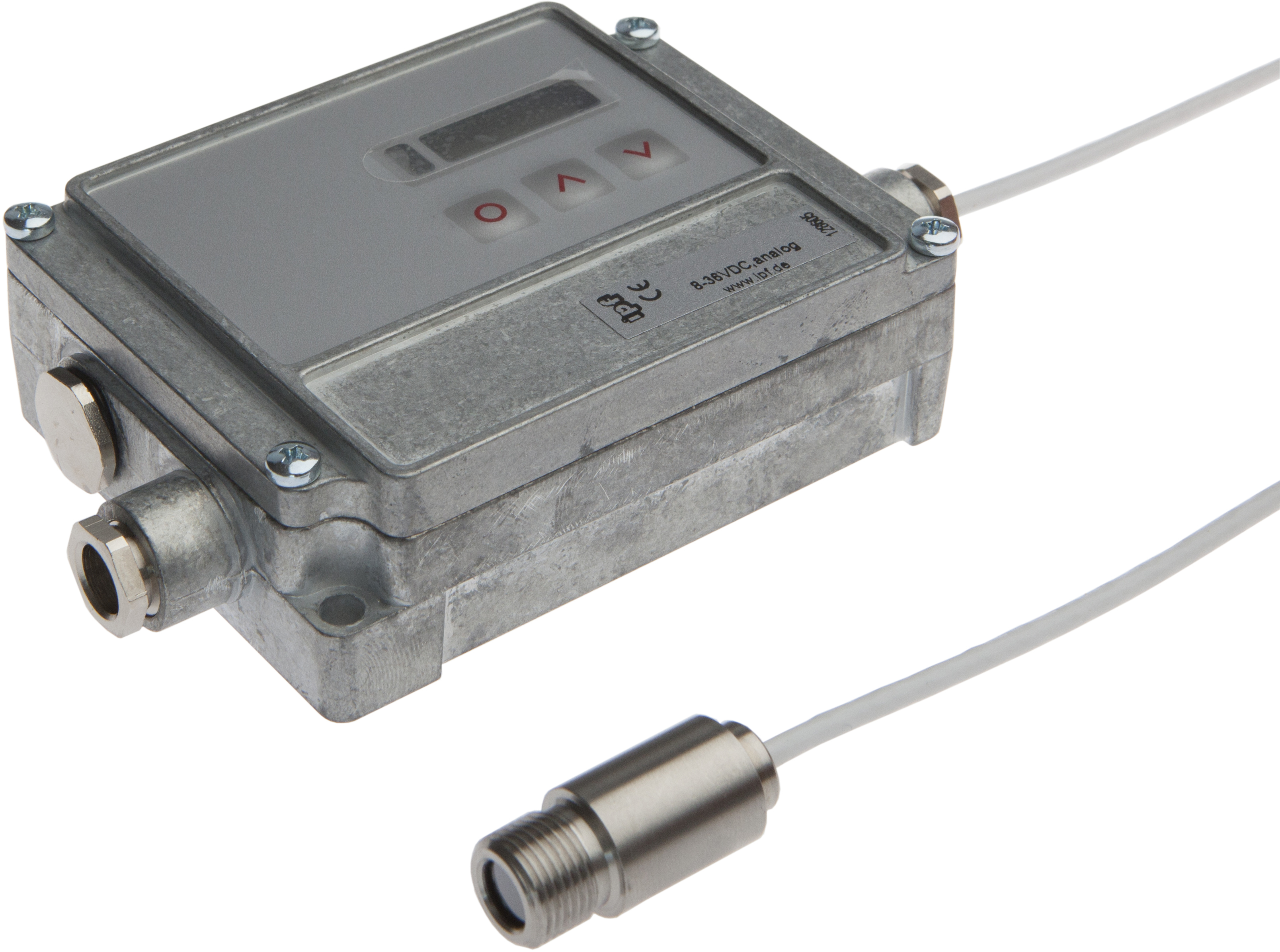

Sensor Optical, infrared, Ø14mm, -40-900°C, 22:1, 8-36V DC, NO, 0/4-20mA, 0/5-10V, terminal, IP65, V4A, cable length of sensor head 15m

circuit diagram

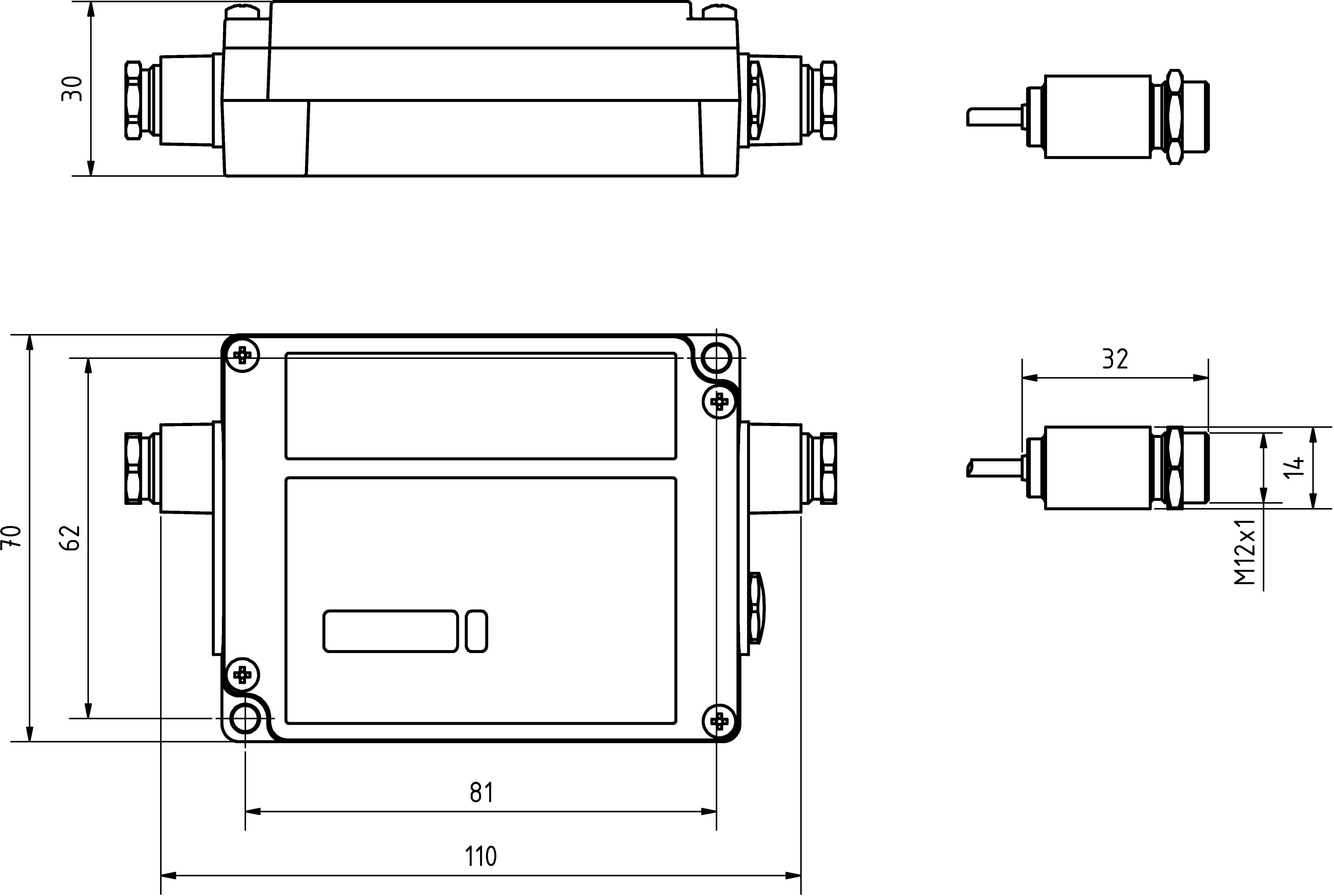

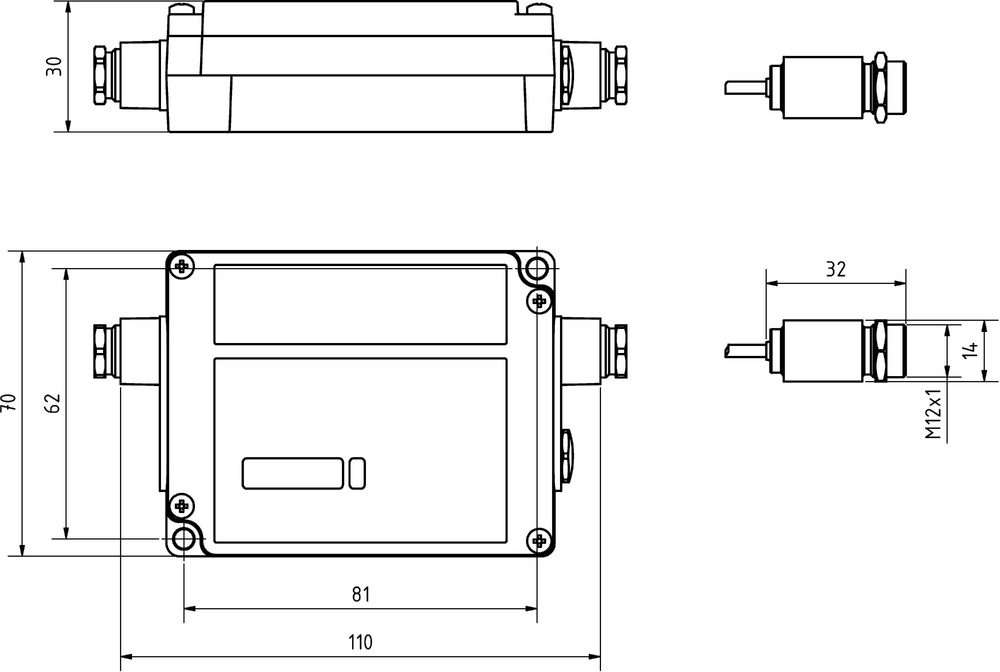

dimensional drawing

3D model

Compare

Temperature sensors - contactless measurement (infrared)

Electrical properties

Response/decay time: 150ms

Type of switching function: Normally open contact (NO)

Type of alarm output: PNP

Type of analog output: 0 - 10V, 0 - 20mA, 0 - 5V, 4 - 20mA

Type of electrical connection: Clamped terminal connection

Type of thermocouple

Rated switching current: 50mA

Setting procedure: Application software, Parameterization

No-load current: 100mA

Measuring range, temperature: -40 - 900°C

Relative repeat accuracy: 0.5%

Switching function of the alarm output: Normally open contact (NO)

Temperature drift over entire measuring range: 0.05%

Supported communication interface

Output functions: Switching point

Display: LCD display, LED display

Operating voltage

Electrical connection

Mechanical properties

Design: Cuboid

Operating temperature of the measuring head: -20 - 180°C

Thread length: 10mm

Thread pitch: 1mm

Cable length of measuring head: 15m

Length: 32mm

Degree of protection (IP): IP65

Housing material: Stainless steel 1.4571

Height of the amplifier: 30mm

Width of the amplifier: 70mm

Thread dimension: M12

Diameter: 14mm

dimensions

Optical properties

Spectral sensitivity: 8 - 14µm

Ratio (D:S): 22:1

Technical data

Lenght of the amplifier: 120mm

You can find accessories for OI98C558 in these product groups:

Accessories and fastening elements

Assembly

Sighting aid for OI98

AO98F002

Accessories, Optical, Laser sighting aid for OI98, including batteries

150,00 €
Your price

On demand

Top hat rail adapter for OI98

AO98C526

accessories optical, Mounting rail adapter, 74x93x2mm, Straight, DIN rail (top hat rail) 35 mm, Metal, Snap connection

46,00 €
Your price

On demand

Temperature sensor

Accessories OI98

AO98C598

accessories optical, Cleaning air nozzle, M12x1, Metal

86,30 €
Your price

On demand

AO98C759

Accessories Optical, protective shield, metal, glass, M12x1

65,10 €
Your price

On demand

AO98C870

accessories optical, Massive housing, Stainless steel

230,50 €
Your price

On demand

AO98E042

accessories optical, Reflection protective pipe, M12x1 20long, Metal

35,20 €
Your price

Scarce

AO98E236

Accessories Optical, attachment optics, metal, glass, M12x1

131,10 €
Your price

Scarce

AO98F001

Accessories Optical, optical attachment, metal, glass, right-angle mirror attachment

113,10 €
Your price

On demand

Interface cards

VR98A921

Relay interface card, Screw connection, Relay contact NO, Screw connection, IP00

93,50 €
Your price

On demand
