Optical sensors - Retro-reflective sensors
OR18A923
| amount | price | discount |
|---|---|---|
| 1 | 95,30 € | – |
| 5 | 92,44 € | 3% / 2,86 € |
| 10 | 90,54 € | 5% / 4,77 € |
| 20 | 87,68 € | 8% / 7,62 € |
| 50 | 83,86 € | 12% / 11,44 € |
Scarce

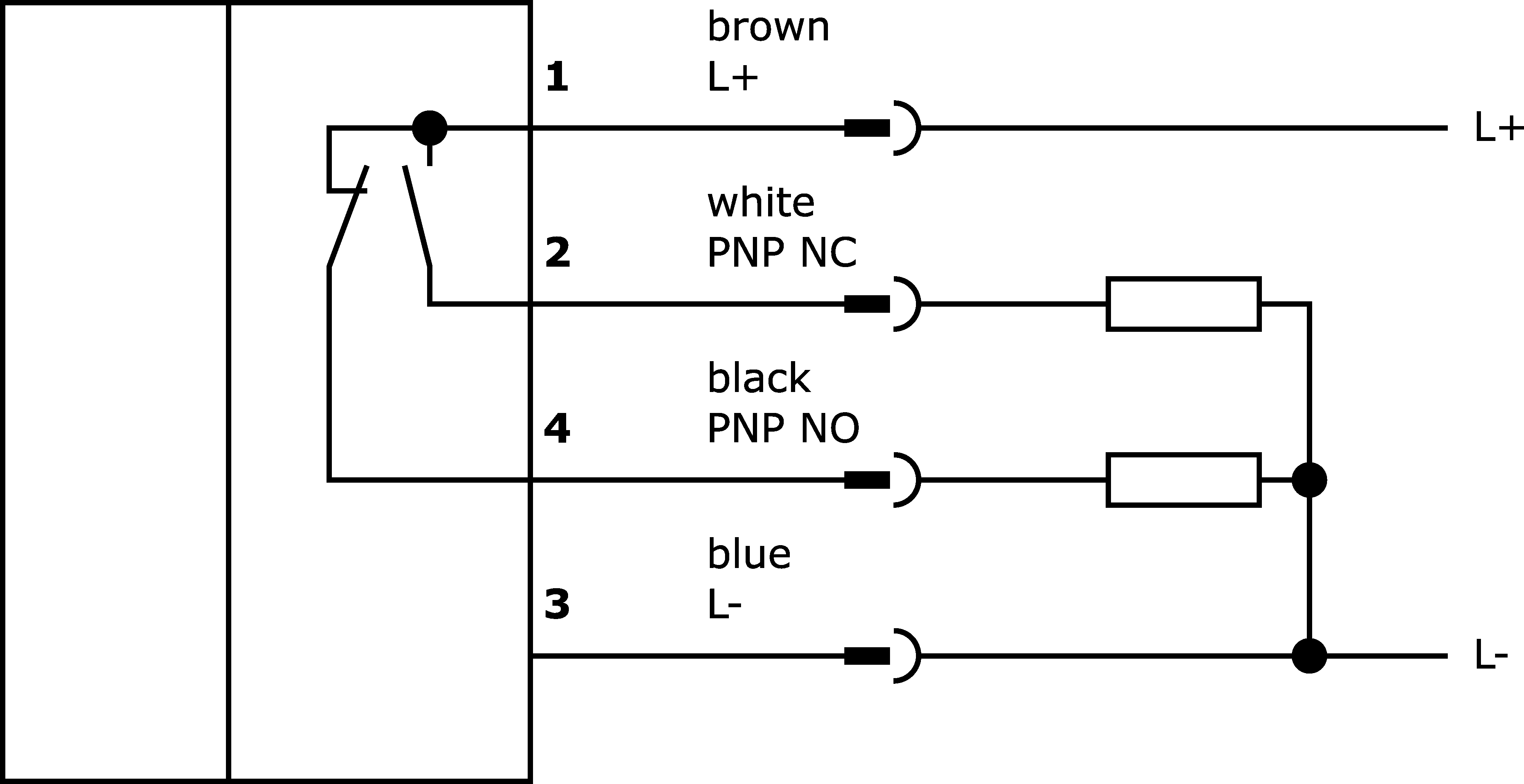

sensor optical, reflective, M18x1 82long, Polarized red light, Point, Manual adjustment, Sn: 100-4500, 10-30V DC, PNP NC/NO, Connector M12 4pin, IP67, Brass Nickel-plated+PMMA, With polarizing filter
including Nut
Compare
Optical sensors - Retro-reflective sensors
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.5ms
- Type of switching function
- Normally closed contact/normally open contact
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Potentiometer
- No-load current
- 35mA
- Number of pins
- 4
- Switching distance
- 100 - 4,500mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.5ms
- Adjustable output functions
- Switching point
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread pitch
- 1mm
- Length
- 81.5mm
- Storage temperature
- -25 - 70°C
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- brass
- Thread dimension
- M18
optical properties
- Light source
- Polarized red light
- Light beam form
- Point
- Wavelength of the sensor
- 660nm
other properties
- Range of functions
- interference suppression
- Ambient temperature
- -25 - 55°C
- Reference medium / object
- AO000007
You can find accessories for OR18A923
in these product groups:
Assembly
Adapter sleeve M18 to Ø20
Fixing material ball-head holder
Available
Fixing material design M18
Scarce
Available
Available
Mounting system for AY000117
Available
Mounting system, cylindrical, M18
Available
Attachments
Cleaning air nozzle M18
On demand
Heat-protection glass M18
Connection technology
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire shielded
Cable sockets M12 4-wire with LED
Other sensors
Reflectors and reflective films
Datasheets
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 481 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270902 |
| eClass-7.1 | 27270902 |
| eClass-8.0 | 27270902 |
| eClass-9.0 | 27270902 |
| eClass-9.1 | 27270902 |
| ETIM-6.0 | EC002717 |
| ETIM-7.0 | EC002717 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 70g |
| Carbon footprint | 2,97kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
