Optical sensors - Through-beam sensors transmitters
OS189020
| amount | price | discount |
|---|---|---|
| 1 | 53,00 € | – |
| 5 | 51,41 € | 3% / 1,59 € |
| 10 | 50,35 € | 5% / 2,65 € |
| 20 | 48,76 € | 8% / 4,24 € |
| 50 | 46,64 € | 12% / 6,36 € |
Available
Optical sensor, through-beam sensor, M18x1, 37 long, Sn: 25 m, 10–30 V DC, 4-pin M12-connector, IP67, stainless steel + PMMA, unpolarized red light
including Nut, Toothed washer
Compare
Optical sensors - Through-beam sensors transmitters
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic principle of operation is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties

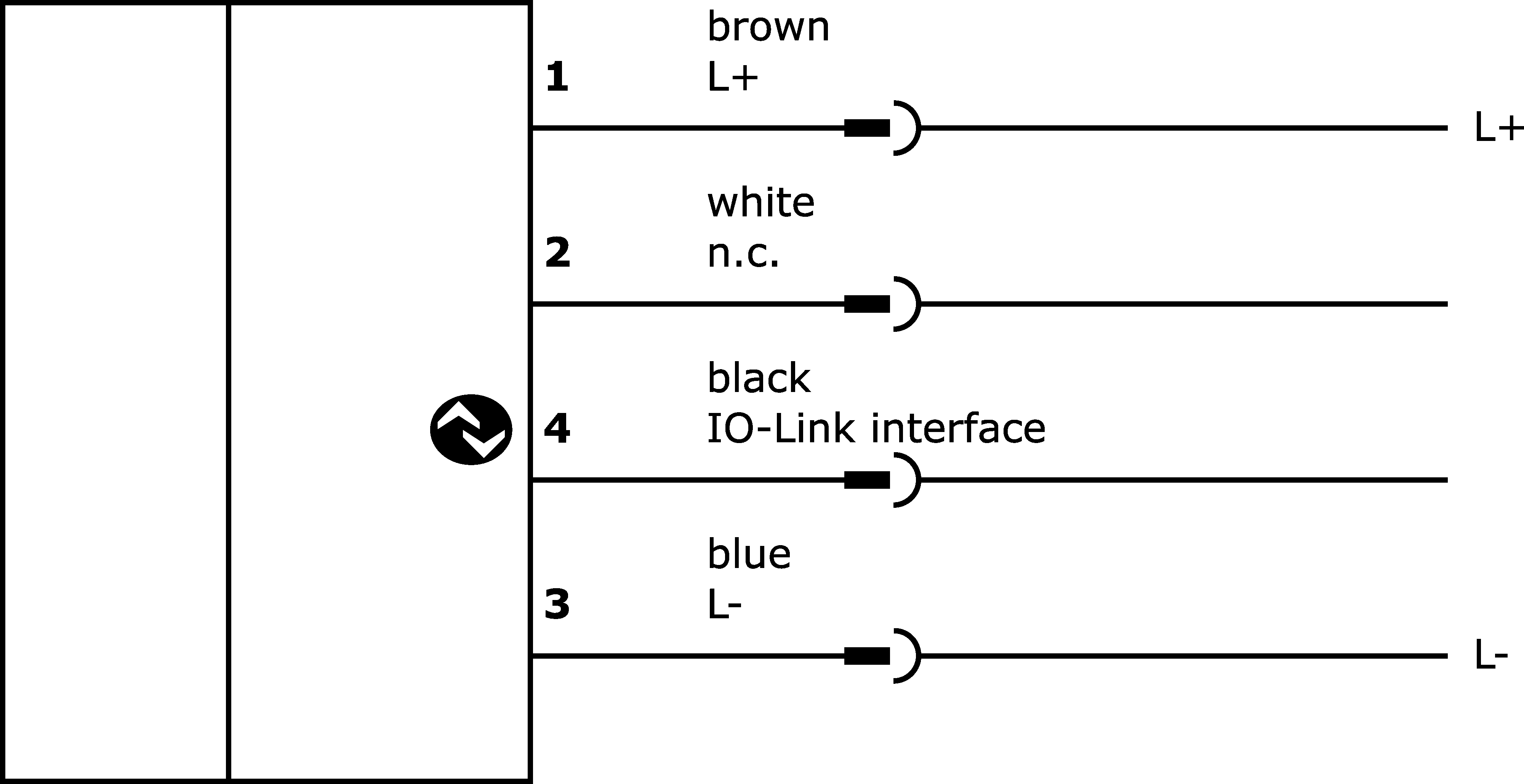

- Type of electrical connection
- Connector M12
- No-load current
- 7mA
- No-load current, transmitter
- 7mA
- Number of pins
- 4
- Residual ripple
- 10%
- Switching distance
- 0 - 25,000mm
- supported communication interface
- IO-Link
- protection functions
- reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 24mm
- Thread pitch
- 1mm
- Length
- 37mm
- Maximum tightening torque
- 20Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- stainless steel 1.4301
- Thread dimension
- M18
optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Angle of beam spread
- 2.5°
- Wavelength of the sensor
- 630nm
- Light spot diameter at the start of the measuring range
- 0mm
- Light spot diameter at the end of the measuring range
- 1,000mm
other properties
- Ambient temperature
- -25 - 65°C
- IO-Link version
- V1.0.1
You can find accessories for OS189020
in these product groups:
Assembly
Adapter sleeve M18 to Ø20
angle of rotation for EM65 / design M18
Fixing material ball-head holder
Available
Fixing material design M18
Scarce
Available
Available
Mounting system for AY000117
Available
Mounting system, cylindrical, M18
Available
Attachments
Attachment optics for OS189020/OE189420
Cleaning air nozzle M18
On demand
Heat-protection glass M18
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Cable sockets M12-socket with LED M8-connector 3-wire
Other sensors
Protection cap, teflon M12
Transmitters / receivers
Receiver for the OS189020
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270901 |
| eClass-7.1 | 27270901 |
| eClass-8.0 | 27270901 |
| eClass-9.0 | 27270901 |
| eClass-9.1 | 27270901 |
| ETIM-6.0 | EC002716 |
| ETIM-7.0 | EC002716 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 401Jahr(e) |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 185 x 20 x 210mm |
| gross weight | 43g |
| Carbon footprint | 0,12kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
