Optical sensors - Diffuse reflection sensors with intensity differentiation
OT180323
| amount | price | discount |
|---|---|---|
| 1 | 132,60 € | – |
| 5 | 128,62 € | 3% / 3,98 € |
| 10 | 125,97 € | 5% / 6,63 € |
| 20 | 121,99 € | 8% / 10,61 € |
| 50 | 116,69 € | 12% / 15,91 € |
Available
Optical sensor, diffuse reflection sensor, M18x1, 65 long, Sn: 30-200, 10–30 V DC, 1x PNP programmable/configurable, 4-pin M12 connector, IP67, nickel-plated (n-pltd) brass + plastic, 0.5 kHz, infrared light, spot, manual setting
including Nut
Compare
Optical sensors - Diffuse reflection sensors with intensity differentiation
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic principle of operation is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 1ms
- Number of switching outputs
- 1
- Type of switching function
- Programmable/configurable

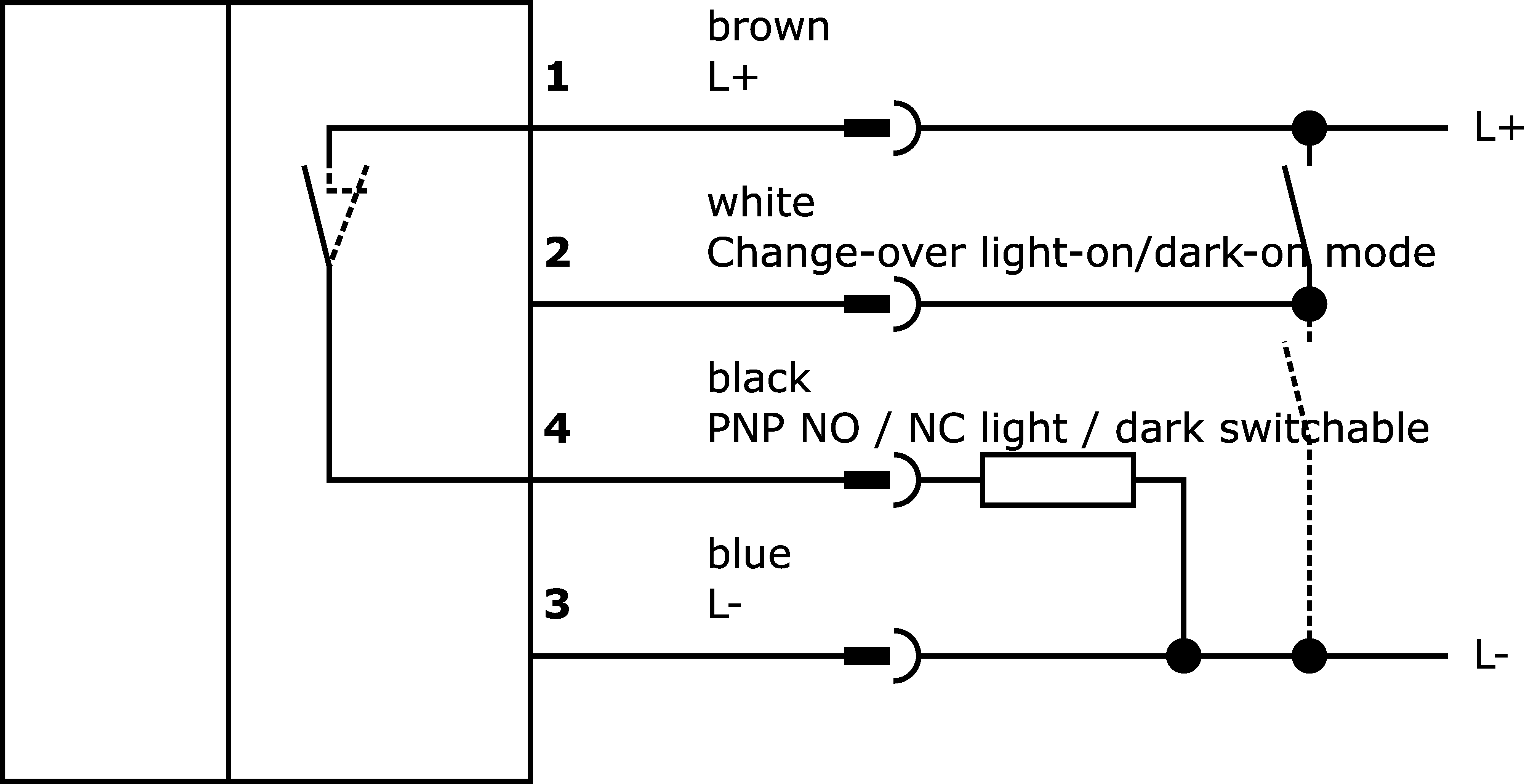

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Readiness delay
- 25ms
- Setting procedure
- Manual adjustment
- Operating principle
- intensity differentiation
- No-load current
- 25mA
- Number of pins
- 4
- Residual ripple
- 10%
- Switching distance
- 30 - 200mm
- Switching frequency
- 500Hz
- Protection class
- III
- Voltage drop
- 2.5V
- Scanning function
- Light-/dark-on mode
- Decay time
- 1ms
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 35mm
- Thread pitch
- 1mm
- Length
- 65.1mm
- Storage temperature
- -40 - 70°C
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic
- Housing material
- brass
- Thread dimension
- M18
optical properties
- Light source
- Infrared light
- Light exit
- axial
- Light beam form
- Point
- Wavelength of the sensor
- 880nm
other properties
- Ambient temperature
- -25 - 55°C
- Reference medium / object
- Material with 90% reflectivity
