High performance light barriers - Amplifier
OV540920
| amount | price | discount |
|---|---|---|
| 1 | 531,20 € | – |
| 5 | 515,26 € | 3% / 15,94 € |
| 10 | 504,64 € | 5% / 26,56 € |
| 20 | 488,70 € | 8% / 42,50 € |
| 50 | 467,46 € | 12% / 63,74 € |
On demand
High performance light barrier, amplifier, 110x75x100mm, 4x multiplex, Change-over contact (NO/NC), Clamp, IP20, Plastic, Turn-off delay 15s
Compare
High performance light barriers - Amplifier
Electrical properties
- Number of presets to be set
- 2
- Number of channels
- 4
- Number of switching outputs
- 4
- Type of voltage supply
- Active
- Type of switching function
- Change-over contact (NO/NC)

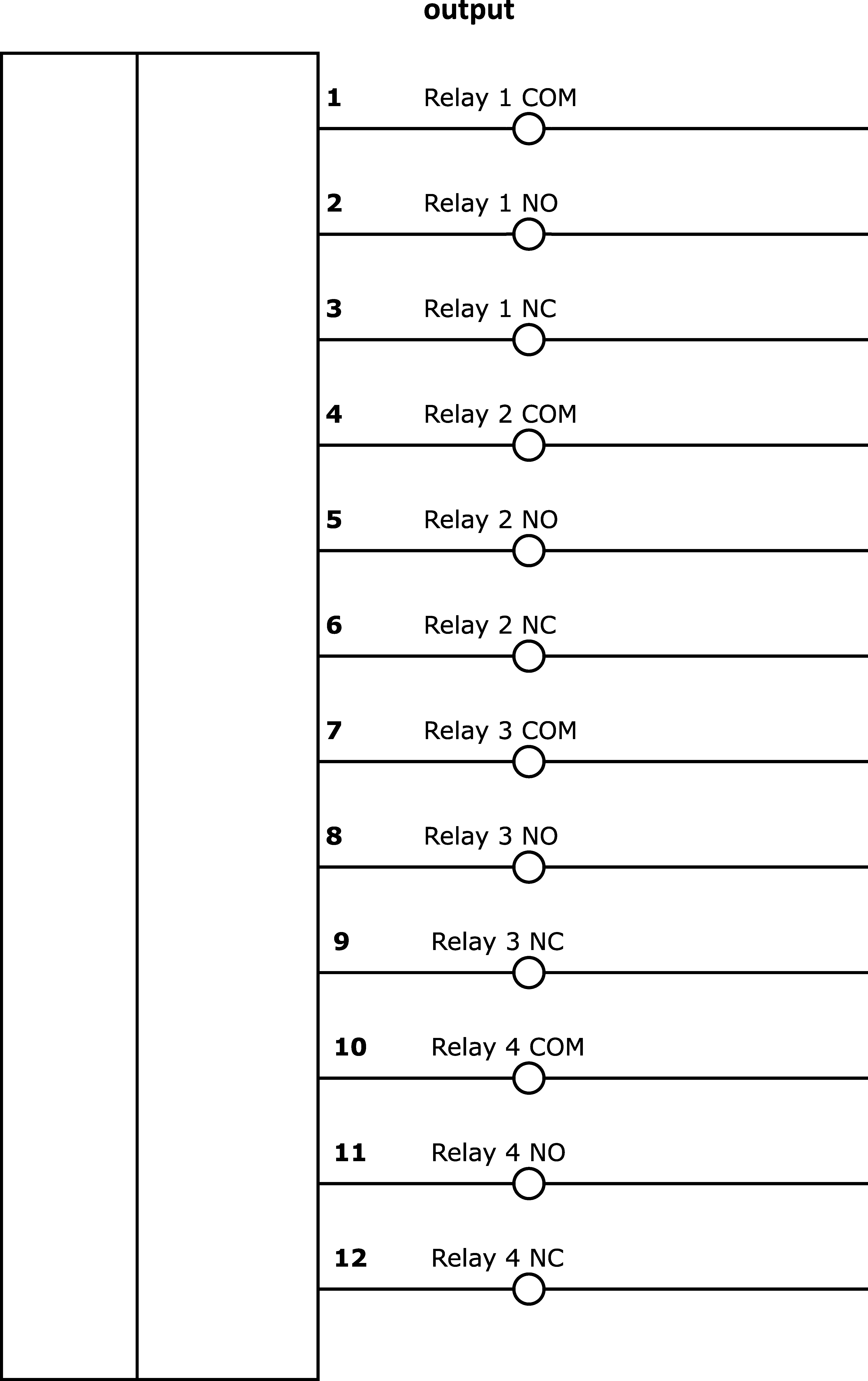

- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Output circuit, relay normally open contact
- 1
- Output circuit, relay change-over contact
- 4
- Turn-off delay
- 0 - 15ms
- Rated switching current
- 5,000mA
- Input voltage tolerance
- 20%
- Turn-on delay
- 0 - 15s
- Setting procedure
- Potentiometer
- Power consumption
- 4.5VA
- Switching distance
- 0 - 40,000mm
- Switching frequency
- 20Hz
- Switching voltage AC
- 230V
- Operating voltage (DC)
- 19.2 - 28.8V
- Cascadable
- Yes
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Width
- 100mm
- Height
- 110mm
- Length
- 75mm
- Mounting method
- DIN rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic
Optical properties
- Range (transmitter with increased power, receiver with short design)
- 15
- Range (transmitter with increased power, receiver with normal design)
- 30
- Range (transmitter with maximum power, receiver with short design)
- 20
- Range (transmitter with maximum power, receiver with normal design)
- 40
- Range (transmitter with normal power, receiver with short design)
- 10
- Range (transmitter with normal power, receiver with normal design)
- 20
Other properties
- Ambient temperature
- -25 - 50°C
High performance light barriers, receiver
High performance light barrier, transmitter
Accessories OV54/62/63/64/65
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass 7.0 | 27210121 |
| eClass 7.1 | 27210121 |
| eClass 8.0 | 27210121 |
| eClass 9.0 | 27210121 |
| eClass 9.1 | 27210121 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 101 high performance through-beam sensors and amplifiers |
| packaging dimensions | 115 x 82 x 165mm |
| gross weight | 450g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
