High performance light barriers - Amplifier

OV560930

OV560930
List price
198,00 €
amount price discount
1 198,00 €
5 192,06 € 3% / 5,94 €
10 188,10 € 5% / 9,90 €
20 182,16 € 8% / 15,84 €
50 174,24 € 12% / 23,76 €
Scarce
High-performance photoelectric sensor amplifier, 22.5x91x91mm, 24V, change-over contact (NO/NC), terminals, IP20, plastic, teach-in, fault signal output
including
Compare

High performance light barriers - Amplifier

The article with the part number "OV560930" is a single-channel amplifier for a light barrier. It belongs to the "amplifiers" subgroup, which is part of the "high-power light barriers" supergroup. The high-performance light barriers have been specially developed for applications where conventional light barriers reach their limits.

The OV560930 amplifier processes the information it receives from the receiver and regulates the power of the transmitter accordingly. It is characterized by extreme insensitivity to dirt and a long range, making it ideal for demanding applications such as the wood and paper industry, vehicle washing systems, bulk material control, elevators, outdoor gate control, the food industry and more.

With a large angle of beam spread, the amplifier simplifies alignment with the light barrier, even at ranges of up to 60m. It is also insensitive to vibrations and shocks. The simple installation and handling emphasize the high user-friendliness of this product. Unfortunately, no information is available on the maximum range of the amplifier.

Electrical properties

Number of channels
1
Number of contacts as change-over contact
1
Number of switching outputs
1
Type of switching function
Change-over contact (NO/NC)
Type of alarm output
PNP
Type of analog output
0 - 10V

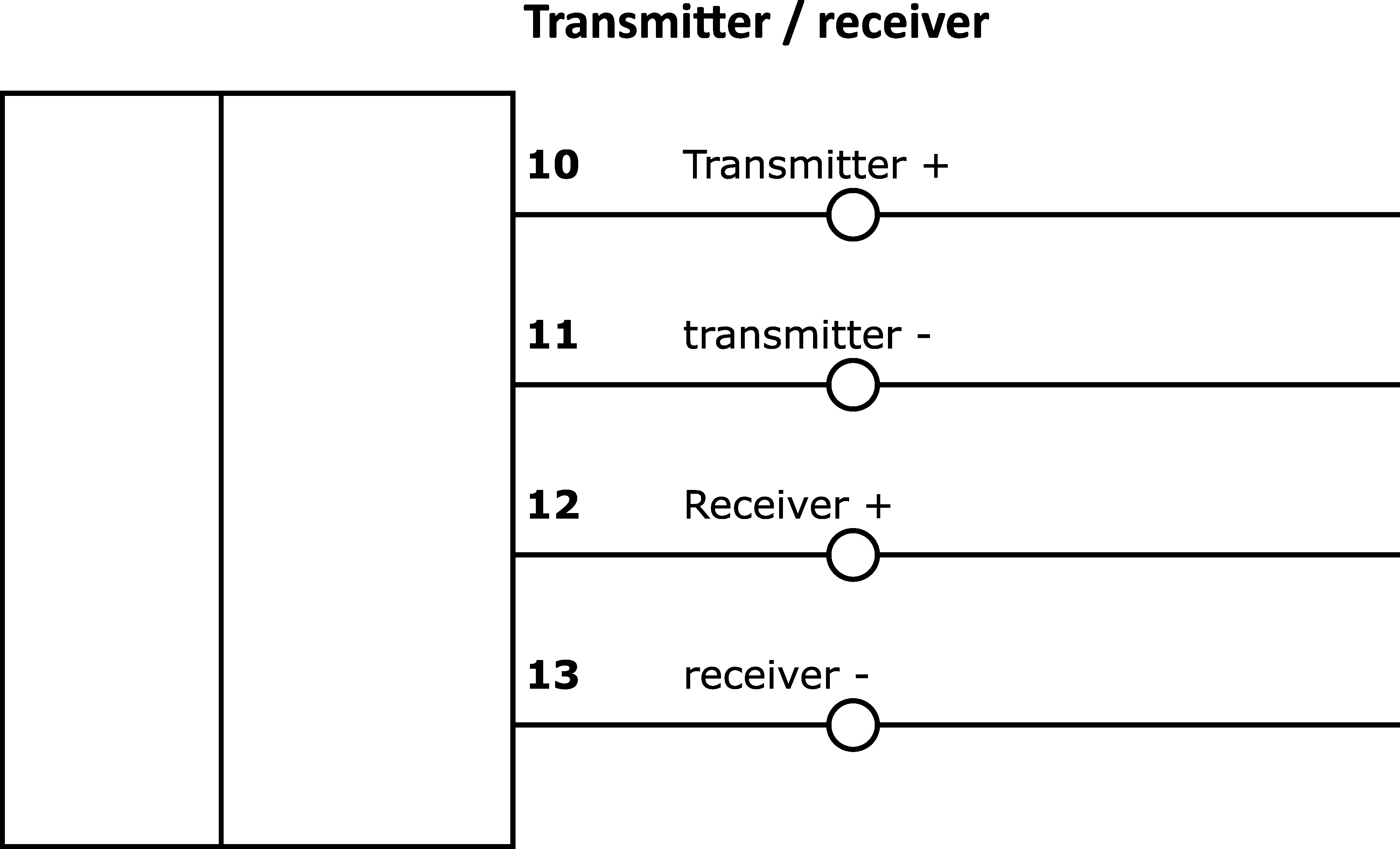

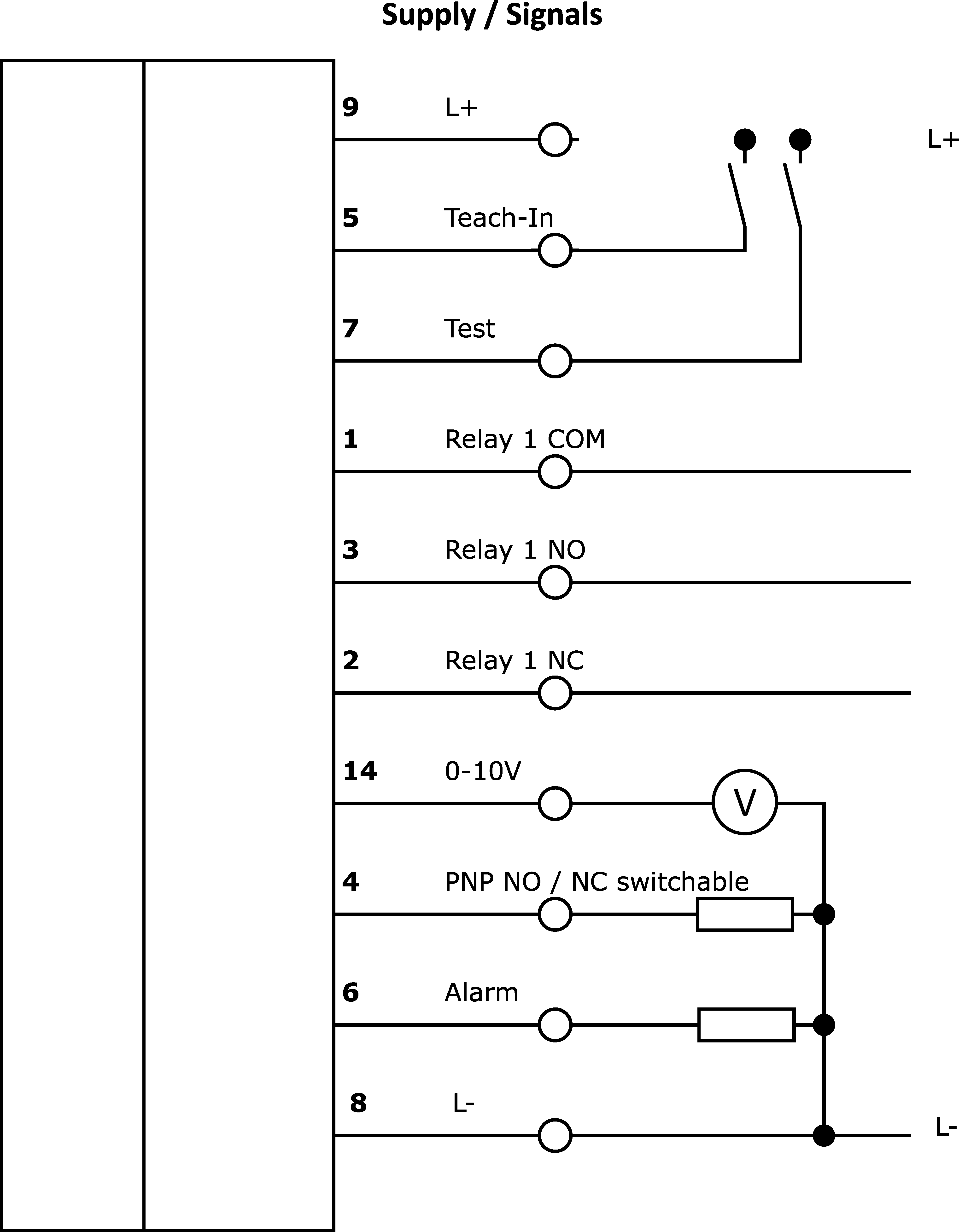

Type of electrical connection
Clamped terminal connection
Type of switching output
Relay contact
Rated switching current
5,000mA
Input voltage tolerance
20%
Setting procedure
Teach-In
No-load current
75mA
Power consumption
1.8VA
Number of pins
14
Switching frequency
35Hz
Switching function of the alarm output
Normally open contact (NO)
Switching capacity
120VA
Switching voltage AC
250V
Switching voltage DC
24V
Operating voltage (DC)
19.2 - 28.8V
Display
LED display
Malfunction message output
Yes
With soiling compensation
Yes

Mechanical properties

Design
Cuboid
Width
22.5mm
Height
91mm
Length
91mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Polyamide PA

Optical properties

Range (transmitter with increased power, receiver with short design)
10
Range (transmitter with increased power, receiver with normal design)
25
Range (transmitter with maximum power, receiver with short design)
20
Range (transmitter with maximum power, receiver with normal design)
50
Range (transmitter with normal power, receiver with short design)
7
Range (transmitter with normal power, receiver with normal design)
15

Other properties

Ambient temperature
-25 - 50°C

High performance light barrier, transmitter

High performance light barriers, receiver

Classification Class
eClass-7.0 27210121
eClass-7.1 27210121
eClass-8.0 27210121
eClass-9.0 27210121
eClass-9.1 27210121
ETIM-6.0 EC001485
ETIM-7.0 EC001485
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 101 high performance through-beam sensors and amplifiers
packaging dimensions 103 x 29 x 116mm
gross weight 117g
Customs tariff number 85365019
WEEE number 40951076
