AY000119
accessories sensor, Fixture kit, Metal, ball joint
Available
Optical sensors - Luminescence sensors
OY380523
| amount | price | discount |
|---|---|---|
| 1 | 848,00 € | – |
| 5 | 822,56 € | 3% / 25,44 € |
| 10 | 805,60 € | 5% / 42,40 € |
| 20 | 780,16 € | 8% / 67,84 € |
| 50 | 746,24 € | 12% / 101,76 € |
On demand
sensor optical, luminescence, 48x38x15mm, Blue light, Sn: 300, 10-30V DC, PNP/NPN NC/NO, M12 connector, 5-pin 5pin, IP67, Metal+Glass, 1.5kHz, Manual adjustment
Compare
Optical sensors - Luminescence sensors
Luminescence diffuse reflection sensors are optical sensors detecting luminophors in various materials by using UV light and thus trigger a switching operation. Luminophors are pigments, which are excited to emit light by UV light. This effect is used in various industrial applications. One example is the labeling of various materials such as bottles. Thereby, luminescence diffuse reflection sensors are used for detecting if there is a label on a bottle or not. Since paper contains luminophors, the sensor switches whenever there is a label within the UV light’s detection range. If a bottle or any other product is not provided with a label, no switching operation is triggered, with the result that such products can be sorted out during an automated labelling.
Electrical properties
- Type of frequency band of the receiving spectrum
- blue
- Type of switching function
- Normally closed contact/normally open contact

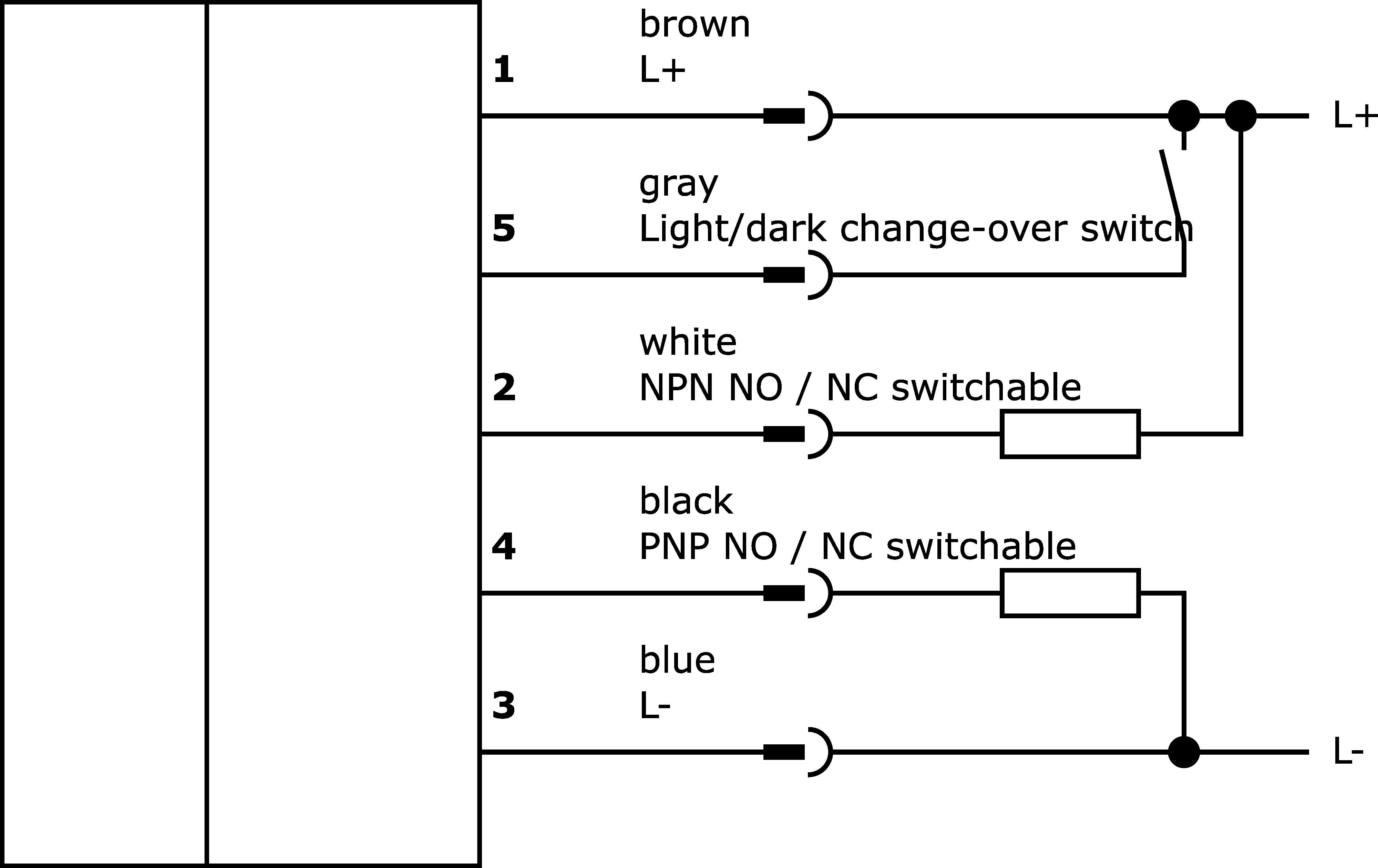

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Readiness delay
- 100ms
- Setting procedure
- Manual adjustment
- Short-circuit protection
- Yes
- No-load current
- 35mA
- Number of pins
- 5
- Pulse length
- 10µs
- Switching frequency
- 1,500Hz
- Protection class
- II
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 10 - 30V
- Measuring range
- 300mm
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Width
- 15mm
- Sensor width
- 15mm
- Height
- 48mm
- Length
- 38mm
- Degree of protection (IP)
- IP67
- Material of optical surface
- Glass
- Housing material
- Metal
Optical properties
- Lamp
- LED
- Light source
- Ultraviolet
- Luminescence detection
- All visible luminescence
- Nominal operating distance
- 300mm
- 11mm
Other properties
- Average nominal service life
- 100,000h
- Ambient temperature
- -20 - 60°C
You can find accessories for OY380523
in these product groups:
Mounting system for AY000119
Fixing material design 38
Available
Cable sockets M12 5-wire
Cable sockets M12 5-wire shielded
Cable sockets M12-socket M12-connector 5-wire
Cable sockets M12 5-pin field attachable
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass 7.0 | 27270908 |
| eClass 7.1 | 27270908 |
| eClass 8.0 | 27270908 |
| eClass 9.0 | 27270908 |
| eClass 9.1 | 27270908 |
| ETIM-6.0 | EC001822 |
| ETIM-7.0 | EC001822 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 102 luminescence diffuse reflection sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 92g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
