PT730520
amount | price | discount |
---|---|---|
1 | 671,60 € | – |
5 | 651,45 € | 3% / 20,15 € |
10 | 638,02 € | 5% / 33,58 € |
20 | 617,87 € | 8% / 53,73 € |
50 | 591,01 € | 12% / 80,59 € |
Laser sensors - Distance measurement
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 90ms
- Number of switching outputs
- 2
- Resolution
- 1mm
- Type of switching function
- Push-pull
- Type of alarm output
- PNP/NPN
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP/NPN
- Setting procedure
- Parameterization
- Short-circuit protection
- Yes
- Laser power
- 1mW
- No-load current
- 100mA
- Number of pins
- 8
- Relative linearity deviation
- 2%
- Relative repeat accuracy
- 1%
- Reverse polarity protection
- Yes
- Decay time
- 45ms
- Absolute linearity deviation
- 2mm
- Measurement principle
- time-of-flight
- Supported communication interface
- RS485
- Operating voltage (DC)
- 24V
- Measuring range
- 200 - 20,000mm
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Width
- 37mm
- Height
- 73mm
- Length
- 60mm
- Storage temperature
- -20 - 70°C
- Degree of protection (IP)
- IP67
- Vibration resistance
- 55Hz
- Active area material of sensor
- Plastic
- Housing material
- Zinc die-cast
Optical properties
- Laser class
- Class 2
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 658nm
Other properties
- Relative measurement accuracy
- 7%
- Ambient temperature
- -15 - 50°C
- Reference medium / object
- Material with 90% reflectivity
Power supply 24V DC / 2 – 10A
Protection cap, teflon M12
Fixing material ball-head holder
Sensor tester
Cable sockets M12 8-wire shielded
Fixing material design 73
Datasheets
Manuals
Drawings
-
jpgBlueprintJPG-file, 94 KB
-
dwg2DDWG-file, 499 KB
-
stp3DSTP-file, 208 KB
-

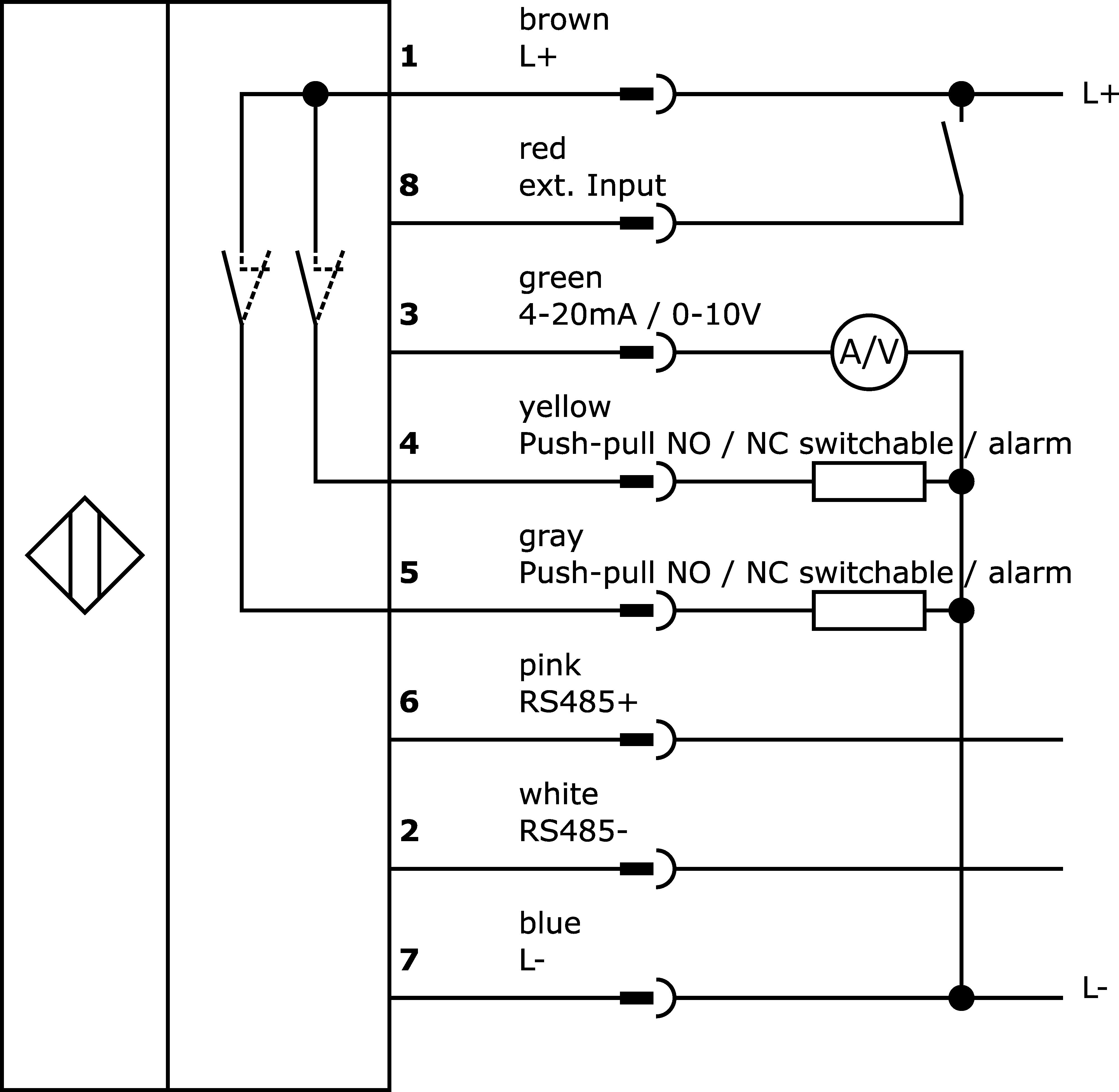

pngWiring diagram - internetPNG-file, 27 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfCE declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
Classification | Class |
---|---|
eClass-7.0 | 27270801 |
eClass-7.1 | 27270801 |
eClass-8.0 | 27270801 |
eClass-9.0 | 27270801 |
eClass-9.1 | 27270801 |
ETIM-6.0 | EC001825 |
ETIM-7.0 | EC001825 |
Property | Value |
---|---|
RoHS‑compliant | Yes |
Reach-compliant | Yes |
POP-compliant | Yes |
TSCA-compliant | Yes |
MTBF (40°C) | 68Jahr(e) |
IPF Product Group | 169 laser diffuse reflection sensors (analog) |
packaging dimensions | 90 x 55 x 120mm |
gross weight | 280g |
Customs tariff number | 85365019 |
WEEE number | 40951076 |
