Motion and presence detectors - Laser curtain

PY930900

PY930900
List price
1.269,40 €
amount price discount
1 1.269,40 € –
5 1.231,32 € 3% / 38,08 €
10 1.205,93 € 5% / 63,47 €
20 1.167,85 € 8% / 101,55 €
50 1.117,07 € 12% / 152,33 €
On demand
Sensor laser, presence detector, 70x93x125mm, 10-35V DC, -30-60°C, 2x relay contact NC/NO, cable tail 10m, IP65, plastic PC

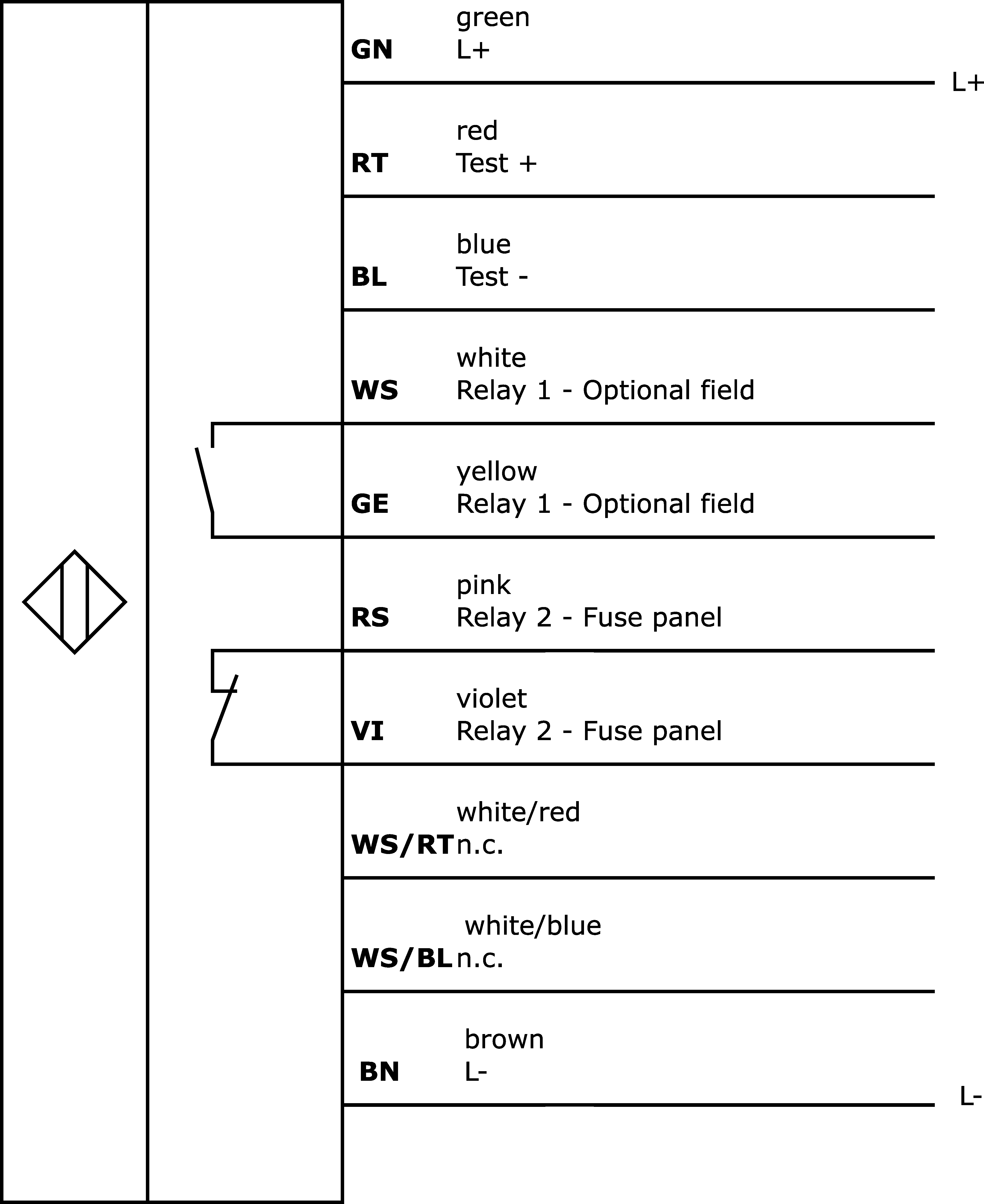

circuit diagram
dimensional drawing
3D model
Compare

Motion and presence detectors - Laser curtain

The PY930900 laser scanner is used to monitor industrial doors. Two independent detection fields ensure that the door is both normally closed (nc) and normally open. It is also possible to set up 2 virtual push buttons to open the door. The maximum detection range is 9.9m x 9.9m. The technology of the PY93 is based on the principle of time-of-flight measurement. The precision of this technology enables reliable detection of even small objects. Thanks to the dynamic orientation of the laser beams on a total of 4 detection levels, the PY930900 ensures unique safeguarding of hazardous areas in and in front of the gate closing level. Three visible laser spots facilitate the alignment of the sensor, the parameters are set using the AR000001 remote control.

Electrical properties

Response/decay time
20ms
Number of switching outputs
2
Type of switching function
Normally closed contact/normally open contact
Type of electrical connection
Cable
Type of switching output
Relay contact
Rated switching current
80mA
Setting procedure
Parameterization via remote control
Power consumption
5VA
Reaction time
80ms
Switching voltage
24V
Display
LED display

Mechanical properties

Number of cores
10
Width
125mm
Height
70mm
Mounting height
10,000mm
Cable length
10m
Length
93mm
Mounting method
Surface mounted (plaster)
Inclination angle
-3 - 3°
Optimum mounting height
10m
Degree of protection (IP)
IP65
Housing material
Plastic PC

Optical properties

Detection angle horizontal
-3 - 3°
Light source
Laser diode, red light
Wavelength of the sensor
905nm
Detection range, presence
9900 x 9900mm

Other properties

Ambient temperature
-30 - 60°C
Classification Class
eClass-7.0 27144008
eClass-7.1 27144008
eClass-8.0 27144008
eClass-9.0 27144008
eClass-9.1 27144008
ETIM-6.0 EC000133
ETIM-7.0 EC000133
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 260 motion and presence detectors
packaging dimensions 200 x 110 x 225mm
gross weight 1,060g
2,42kg CO₂e
Customs tariff number 85365019
WEEE number 40951076
