Motion and presence detectors - Laser curtain
PYB00900
| amount | price | discount |
|---|---|---|
| 1 | 1.408,20 € | – |
| 5 | 1.365,95 € | 3% / 42,25 € |
| 10 | 1.337,79 € | 5% / 70,41 € |
| 20 | 1.295,54 € | 8% / 112,66 € |
| 50 | 1.239,22 € | 12% / 168,98 € |
On demand
Sensor laser, motion sensor/presence detector, 150x100x200mm, 12-24V AC/DC, -30-60°C, 3x relay contact programmable/configurable, cable tail, IP65, plastic PC
Compare
Motion and presence detectors - Laser curtain
The PYB00900 is a sensor based on the principle of time-of-flight measurement. Thanks to its 7 laser curtains, the sensor covers an extensive area in front of the door. Furthermore, it combines 3 functions in one device: door opening, vestibule monitoring and additional personnel protection in the area of the door threshold. In addition, the PYB00900 not only optimizes traffic flow and energy consumption, but also increases gate protection and user comfort.
Electrical properties
- Response/decay time
- 230ms
- Number of switching outputs
- 3
- Type of switching function
- Programmable/configurable
- Type of electrical connection
- Cable
- Type of switching output
- Relay contact
- Rated switching current
- 80mA
- Setting procedure
- Parameterization via remote control
- Power consumption
- 15VA
- Reaction time
- 100ms
- Switching voltage
- 24V
- Display
- LED display

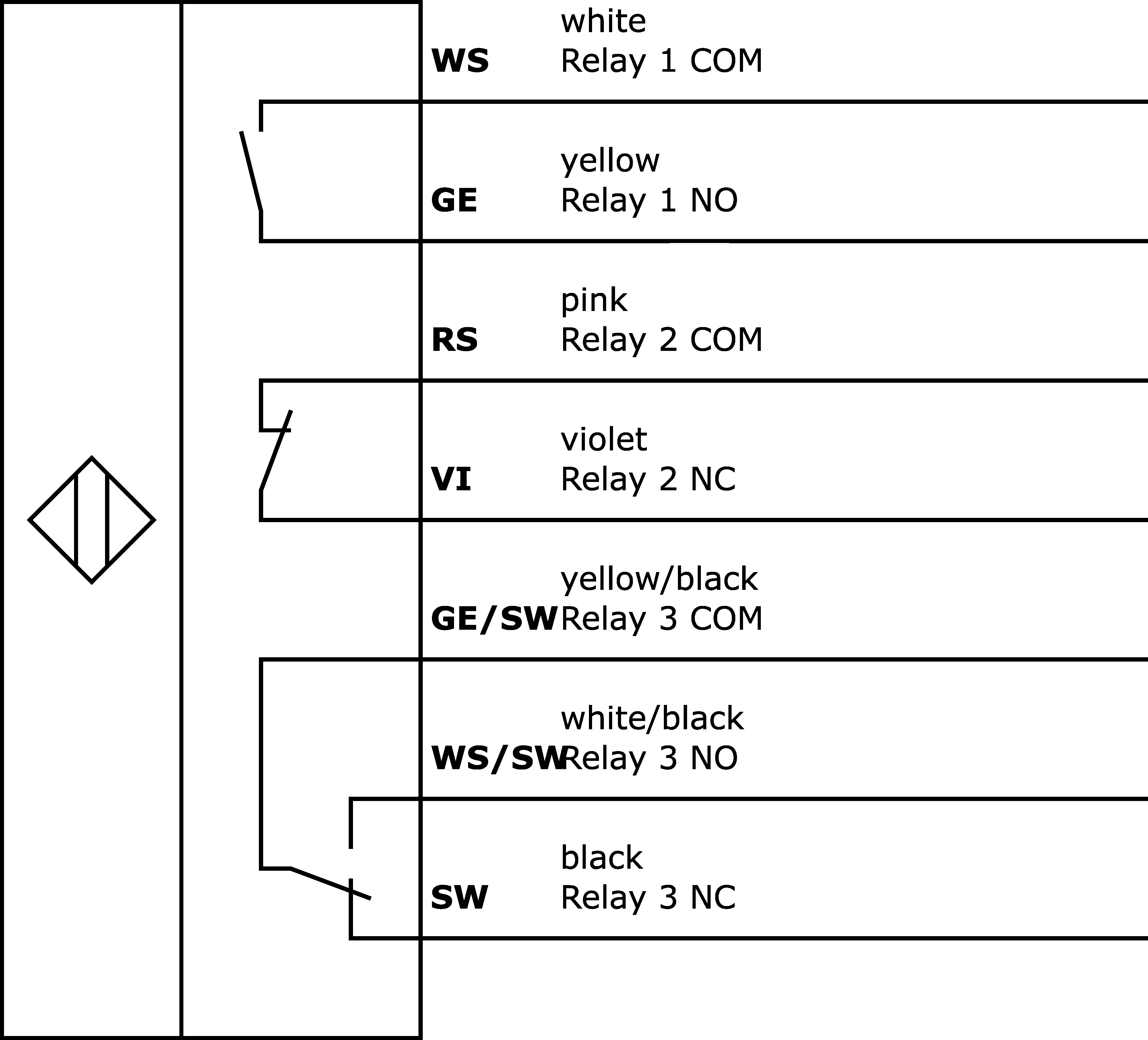

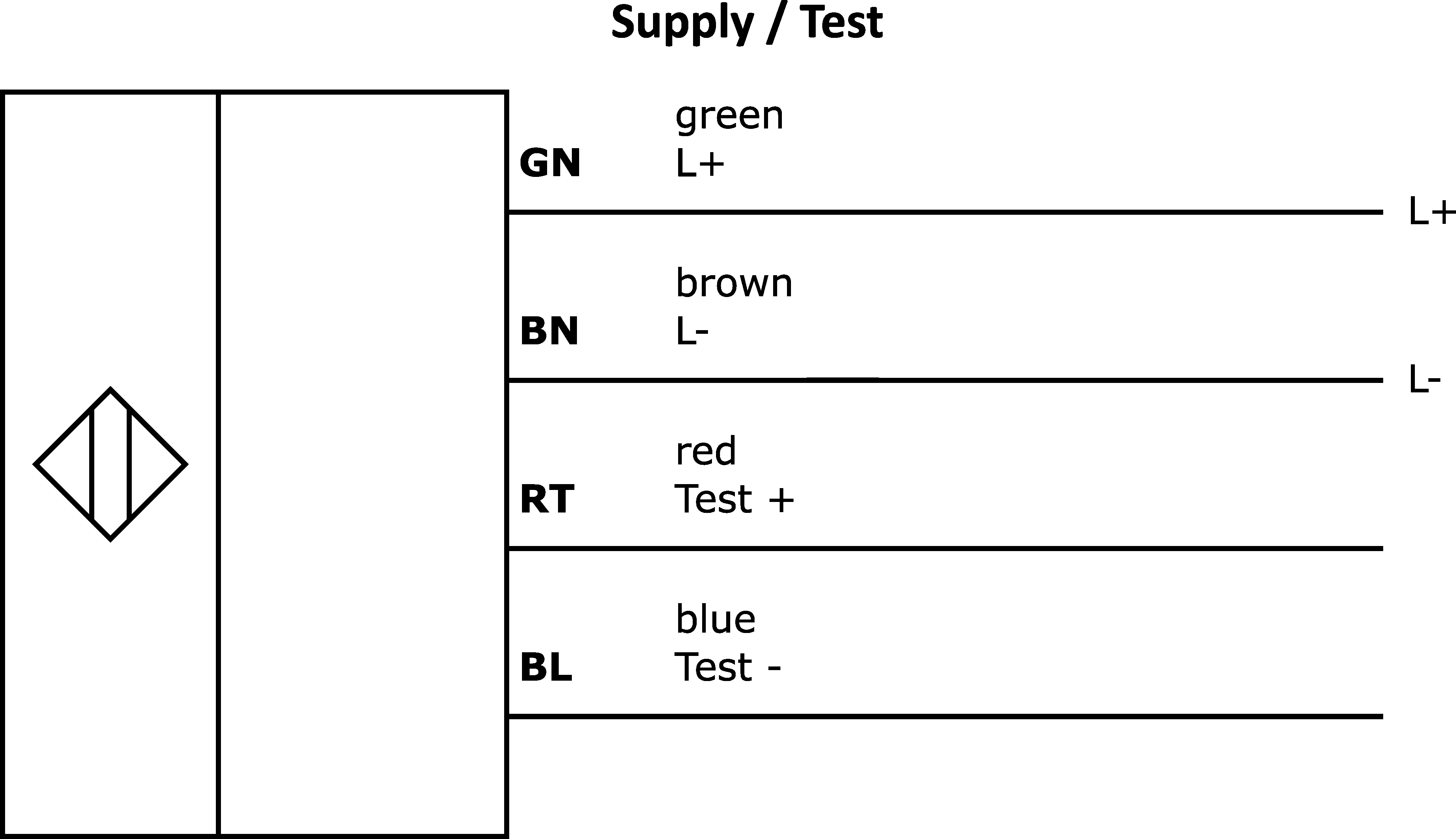

- Electrical connection
- Cable tail 8-wire
Mechanical properties
- Number of cores
- 8
- Width
- 200mm
- Height
- 150mm
- Mounting height
- 6,000mm
- Length
- 100mm
- Mounting method
- Surface mounted (plaster)
- Optimum mounting height
- 6m
- Degree of protection (IP)
- IP65
- Housing material
- Plastic PC
- dimensions
- 100x200x150mm
Optical properties
- Light source
- Laser diode, infrared light
- Wavelength of the sensor
- 905nm
- Detection range, presence
- 6000 x 6000mm
Other properties
- Ambient temperature
- -30 - 60°C
Other sensors
Remote control
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 476 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27144008 |
| eClass-7.1 | 27144008 |
| eClass-8.0 | 27144008 |
| eClass-9.0 | 27144008 |
| eClass-9.1 | 27144008 |
| ETIM-6.0 | EC000133 |
| ETIM-7.0 | EC000133 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 260 motion and presence detectors |
| packaging dimensions | 205 x 145 x 300mm |
| gross weight | 1,611g |
| 19,65kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
