AR000008
Radar accessories, surface-mounted housing, presence detector, plastic
Available
Motion and presence detectors - Motion sensor
RT210900
| amount | price | discount |
|---|---|---|
| 1 | 218,00 € | – |
| 5 | 211,46 € | 3% / 6,54 € |
| 10 | 207,10 € | 5% / 10,90 € |
| 20 | 200,56 € | 8% / 17,44 € |
| 50 | 191,84 € | 12% / 26,16 € |
Scarce
Sensor radar, motion sensor, 80x21x80mm, Sn: 100-600, 12-24V AC/DC, 1x relay contact change-over contact, terminals, IP54, plastic PC
Compare
Motion and presence detectors - Motion sensor
The RT210900 is a contactless diffuse reflection sensor that reacts to a hand movement. The movement must be in the direction of the diffuse reflection sensor. The device is used e.g. in areas where doors need to be opened or closed at the touch of a button without the diffuse reflection sensor being touched by hand. Installation in existing flush-mounted boxes is possible without any problems; the AR000008 housing is available for surface mounting.
Electrical properties
- Number of switching outputs
- 1
- Type of switching function
- Change-over contact (NO/NC)

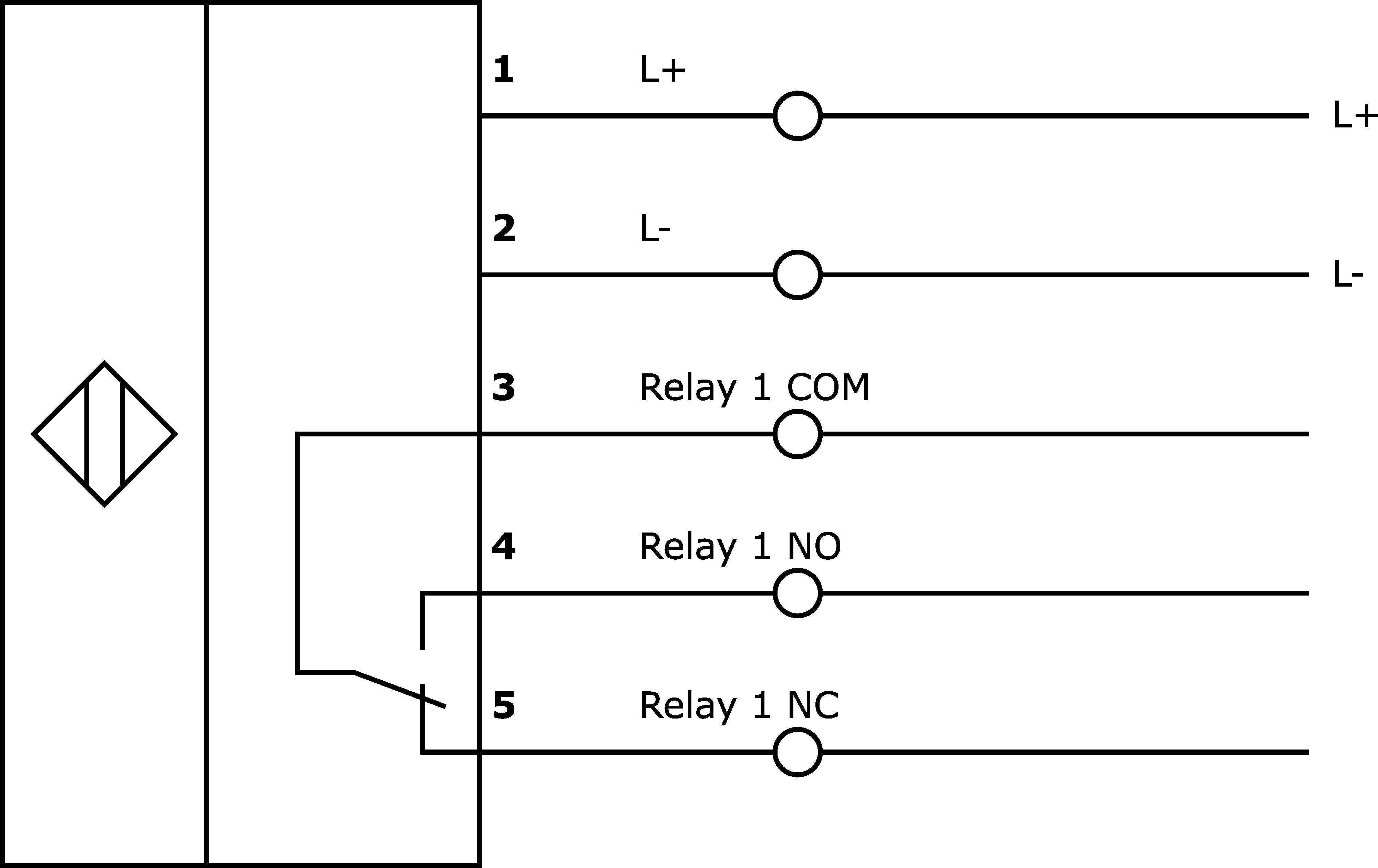

- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Rated switching current
- 1,000mA
- Setting procedure
- Manual adjustment
- Holding time
- 0.5s
- Power consumption
- 1.5VA
- Min. speed
- 0.03m/s
- Switching distance
- 100 - 600mm
- Switching voltage
- 30V
- Transmitting power, radar
- 5mW/cm²
- Display
- LED display
- Operating voltage
- 12-24VAC(50Hz) | 12-24VDC
- Electrical connection
- Terminal connection
Mechanical properties
- Width
- 80mm
- Height
- 80mm
- Length
- 21mm
- Mounting method
- Flush mounted
- Degree of protection (IP)
- IP54
- Housing material
- Plastic PC
- dimensions
- 21x80x80mm
Other properties
- Operating frequency
- 24,150,000kHz
- Ambient temperature
- -20 - 55°C
Assembly
Surface-mounted housing presence detector
Datasheets
Manuals
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 404 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27144008 |
| eClass-7.1 | 27144008 |
| eClass-8.0 | 27144008 |
| eClass-9.0 | 27144008 |
| eClass-9.1 | 27144008 |
| ETIM-6.0 | EC000133 |
| ETIM-7.0 | EC000133 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 260 motion and presence detectors |
| packaging dimensions | 118 x 80 x 155mm |
| gross weight | 148g |
| 0,54kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
