Individual data sheet
PDF-file, 472 KB
Flow sensors - Sensors for liquids
SY991185
| amount | price | discount |
|---|---|---|
| 1 | 478,00 € | – |
| 5 | 463,66 € | 3% / 14,34 € |
| 10 | 454,10 € | 5% / 23,90 € |
| 20 | 439,76 € | 8% / 38,24 € |
| 50 | 420,64 € | 12% / 57,36 € |
On demand
Flow sensor, lubricant, 23x63x45mm, hose OD 4mm, 10-36V DC, PNP NO, M8 connector, aluminum, pressure resistance 50bar
Compare
Flow sensors - Sensors for liquids
Flow sensor, lubricant, 23x63x45mm, hose AD 6mm, 10-36V DC, PNP NO, M8 connector, aluminum, pressure resistance 70bar
Electrical properties
- Type of switching function
- Normally open contact (NO)

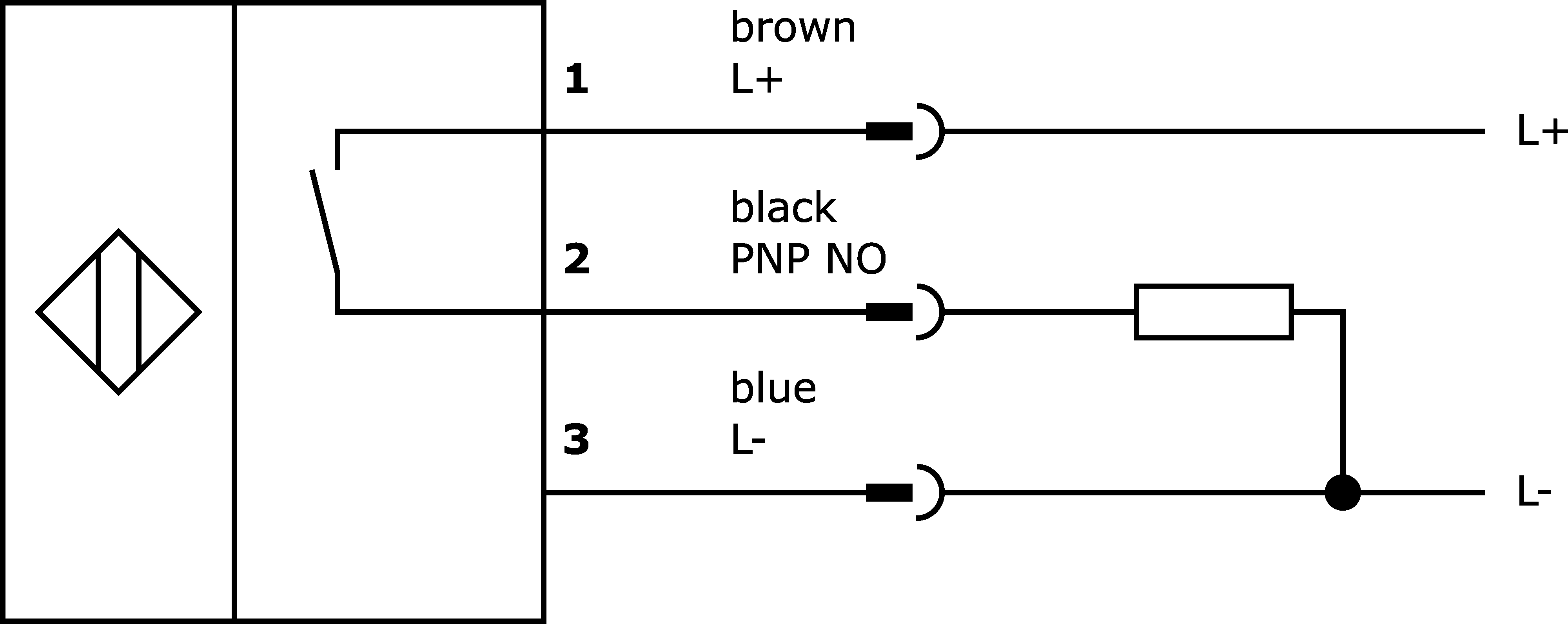

- Type of electrical connection
- Connector M8
- Type of switching output
- PNP
- Rated switching current
- 200mA
- No-load current
- 15mA
- Switching frequency
- 2Hz
- Switching behavior of the output
- Dynamic
- Display
- LED display
- Short circuit protection
Mechanical properties
- Type of process connection
- Hose OD 4mm
- Design
- Cuboid
- Width
- 45mm
- Pressure resistance
- 50bar
- Height
- 23mm
- Length
- 63mm
- Degree of protection (IP)
- IP67
- Housing material
- Aluminum
Other properties
- Ambient temperature
- -20 - 70°C
- Reference medium / object
- Lubricant
Datasheets
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27371815 |
| eClass-7.1 | 27371815 |
| eClass-8.0 | 27371815 |
| eClass-9.0 | 27371815 |
| eClass-9.1 | 27371815 |
| ETIM-6.0 | EC002580 |
| ETIM-7.0 | EC002580 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 300 flow sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 132g |
| 1,67kg CO₂e | |
| Customs tariff number | 90261021 |
| WEEE number | 40951076 |
