Encoder - Absolutely

VD58F001

VD58F001
List price
703,70 €
amount price discount
1 703,70 €
5 682,59 € 3% / 21,11 €
10 668,52 € 5% / 35,19 €
20 647,40 € 8% / 56,30 €
50 619,26 € 12% / 84,44 €
On demand
Encoder, absolute, Ø58mm 68 long, solid shaft, 10-30V DC, -10-70°C, push-pull, cable tail 15 poles 2m, IP65, aluminum
Compare

Encoder - Absolutely

An encoder is a device that converts a rotary motion into a digital output signal that can be processed via subsequent evaluation electronics. Our encoders all work on the principle of optical scanning. Inside the device there is an impulse disc on which, depending on the encoder, there is a unique (absolute) or repeating (incremental) graduation, which is scanned by an optical system. Rotation of the encoder shaft causes the impulse disc to rotate, which results in a corresponding scanning signal from the optical system. This is finally converted into encoder-specific output signals (e.g. multiturn, RS422, etc.) by integrated electronics. Shaft couplings, self-adjusting mounting brackets or flanges are used for professional mounting in numerous applications. In addition, the encoder shaft can be equipped with measuring wheels or pinions in various versions and sizes. Typical application examples include angle measurement on bending machines, length measurement on strip processing lines or speed measurement on winding lines.

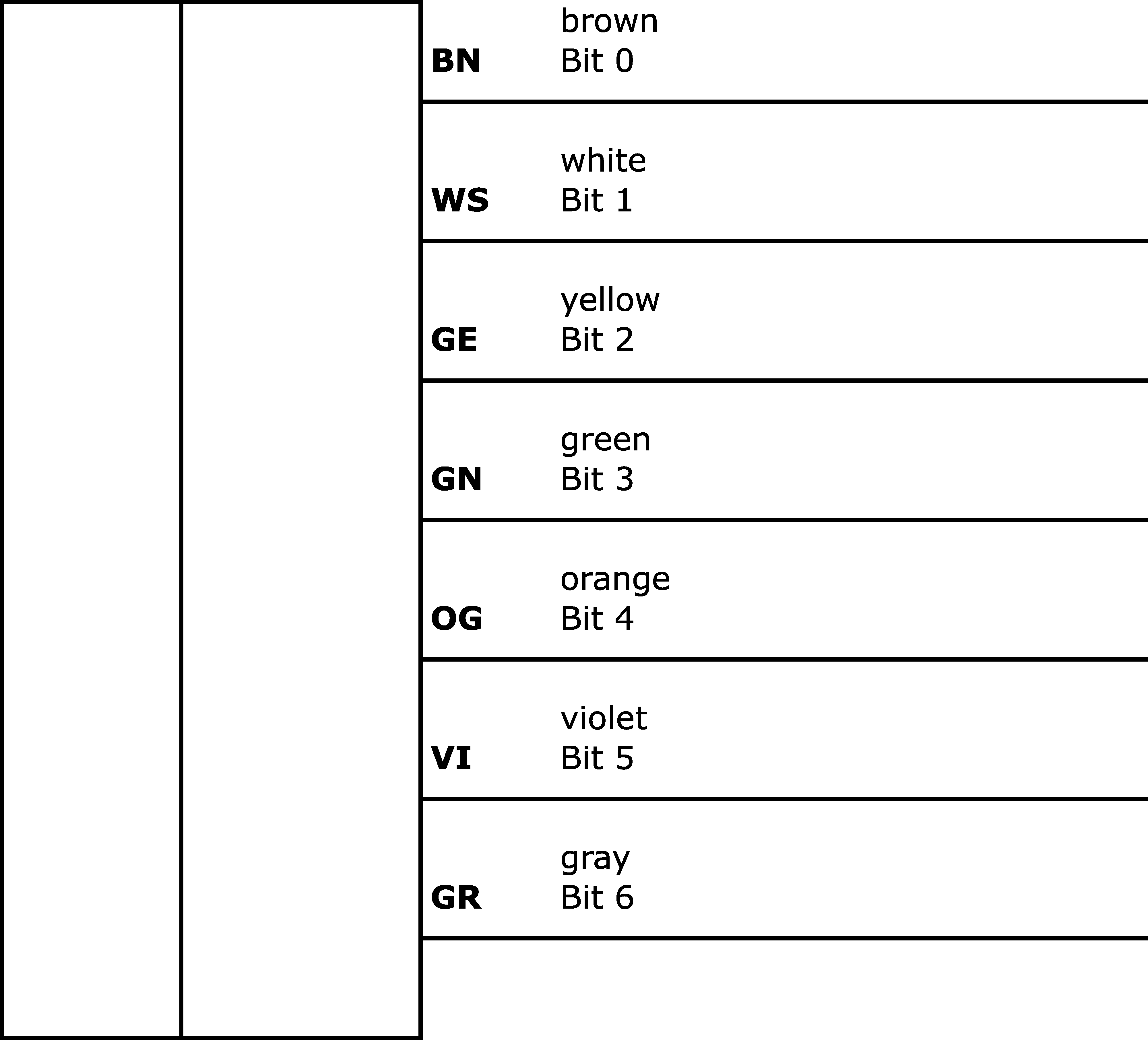

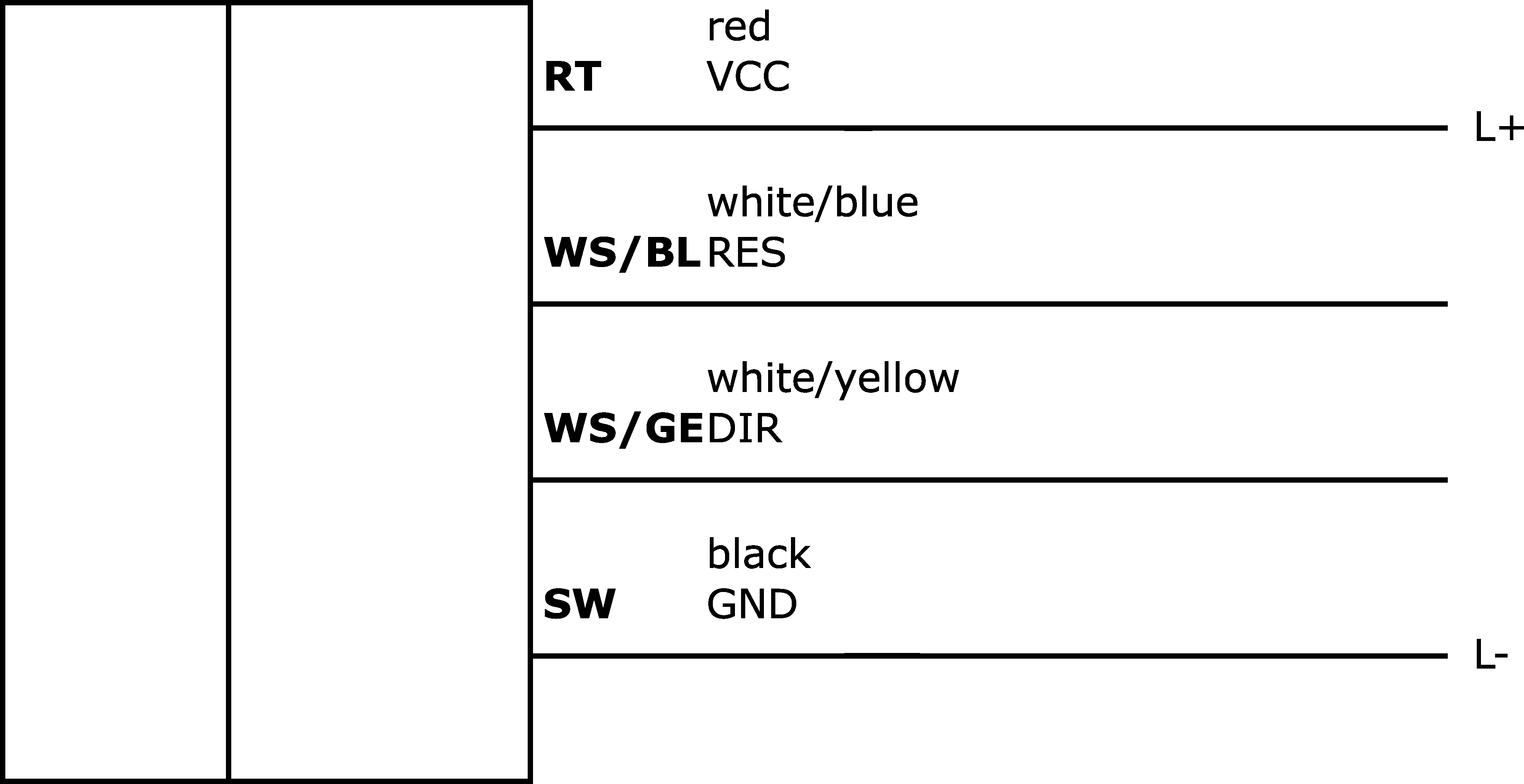

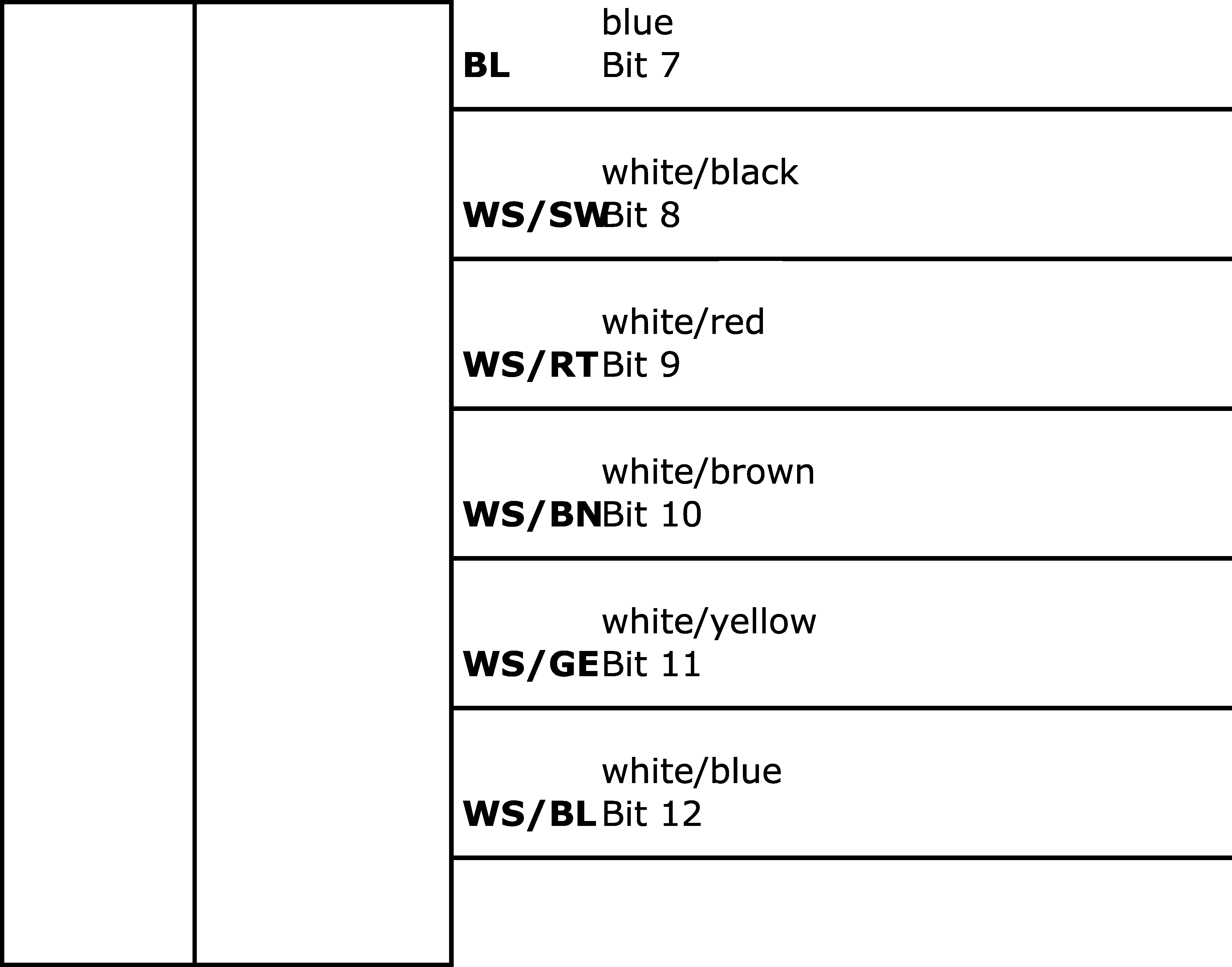

Electrical properties

Type of electrical connection
Cable
Type of switching output
Push-pull
Rated switching current
30mA
Increments per revolution
1,024
Shaft length
20
No-load current
100mA
Linearity deviation
1 - 2mm
Physical measurement principle
optical
Number of pins
15
Switching frequency
200,000Hz
Absolute position value collection
Singleturn
Supported communication interface
Gray Code
Operating voltage (DC)
10 - 30V
Digital resolution singleturn
13Bit

Mechanical properties

Start-up torque
0.02
Type of encoder shaft
Full shaft
Axial load capacity of shaft
40N
Encoder size
58
Shaft diameter
6mm
Weight
40g
Cable length
2m
Cable infeed
radial
Length
98mm
Max. rotation speed
6,000UpM
Radial load capacity of the shaft
60N
Shock resistance, acceleration
1,000g
Shock resistance, pulse time
6ms
Degree of protection (IP)
IP65
Moment of inertia
30gcm²
Vibration resistance, acceleration
100g
Flange material
Aluminum
Housing material
Aluminum
Shaft bearing
Ball bearing
Bearing life
10,000,000,000Umdrehungen
Vibration resistance Frequency
16 - 2,000Hz
Diameter
60mm

Other properties

Ambient temperature
-10 - 70°C
Classification Class
eClass-7.0 27270590
eClass-7.1 27270590
eClass-8.0 27270590
eClass-9.0 27270590
eClass-9.1 27270590
ETIM-6.0 EC001486
ETIM-7.0 EC001486
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 520 encoders
packaging dimensions 130 x 117 x 141mm
gross weight 644g
Customs tariff number 90318020
WEEE number 40951076
