Connection technology - Distribution terminals

VK001016

VK001016
List price
125,00 €
Scarce
distributor, 30x152x60mm, 10-30V DC, 8x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, TPU, With LED display, Sensor/actuator slot with equipment grounding conductor, 12A
including Identification label, Screw plug

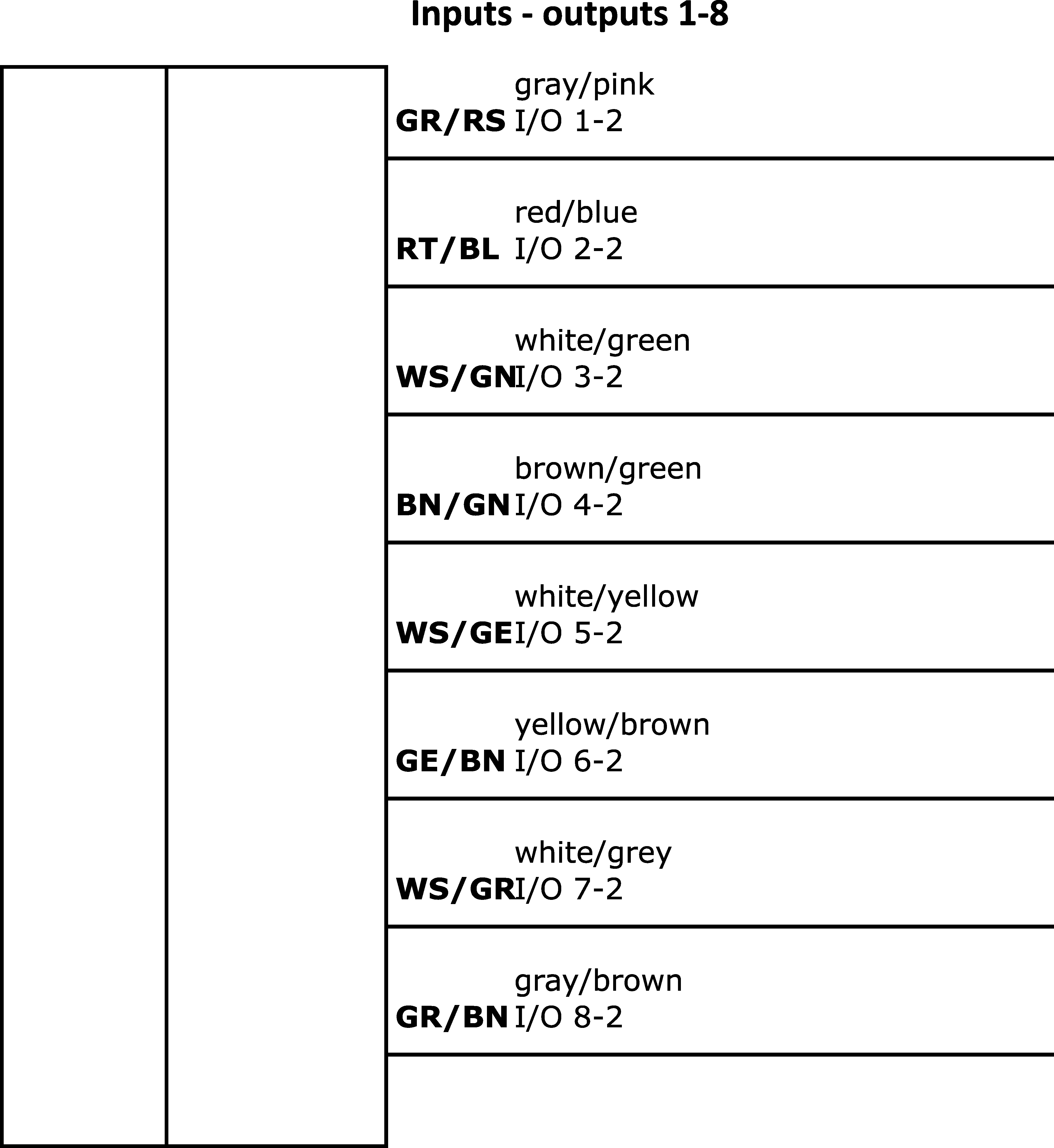

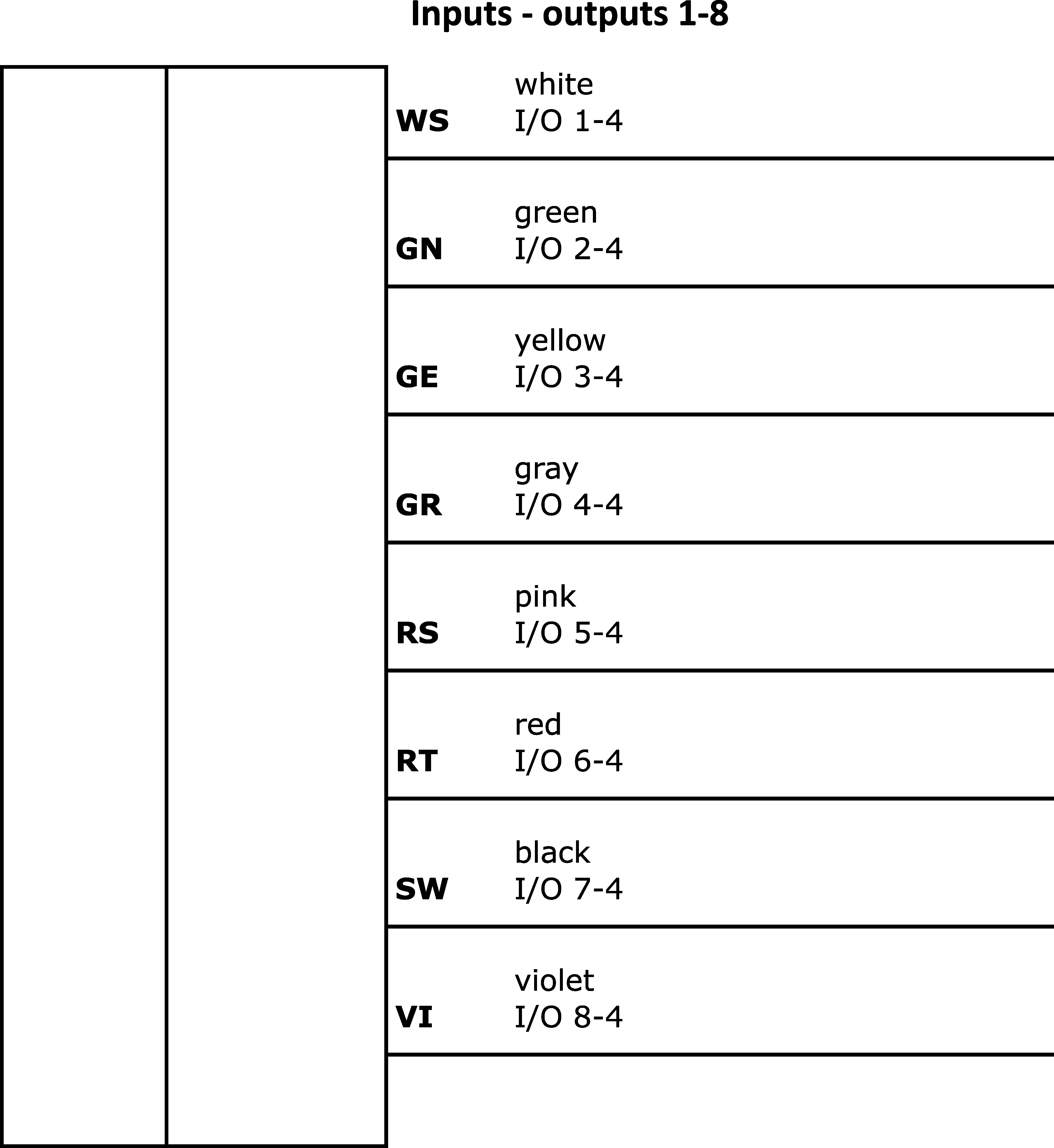

circuit diagram
3D model
Compare

Connection technology - Distribution terminals

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

Electrical properties

Type of A electrical connection
M12
Type of B electrical connection
Free conductor end
Max. ampacity per socket
4A
Max. total current
12A
Number of pins of A connection
5
Number of slots
8
Display
LED display

Mechanical properties

Type of cable gland
none
Line diameter
8mm
Width
60mm
Height
30.3mm
Cable length
5m
Length
152mm
Degree of protection (IP)
IP67
Housing material
TPU
Structure of trunk line
16 x 0.5mm² + 3x 1mm²

Other properties

Ambient temperature
-15 - 80°C
Version
