Connection technology - Distribution terminals

VK001021

VK001021
List price
55,80 €
Available
distributor, 29x90x30mm, 10-30V DC, 4x M8 3pin, M12 12pin, IP67, PBT, With LED display, 1.5A
including 5x Identification label, 2x Screw plug
Compare

Connection technology - Distribution terminals

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

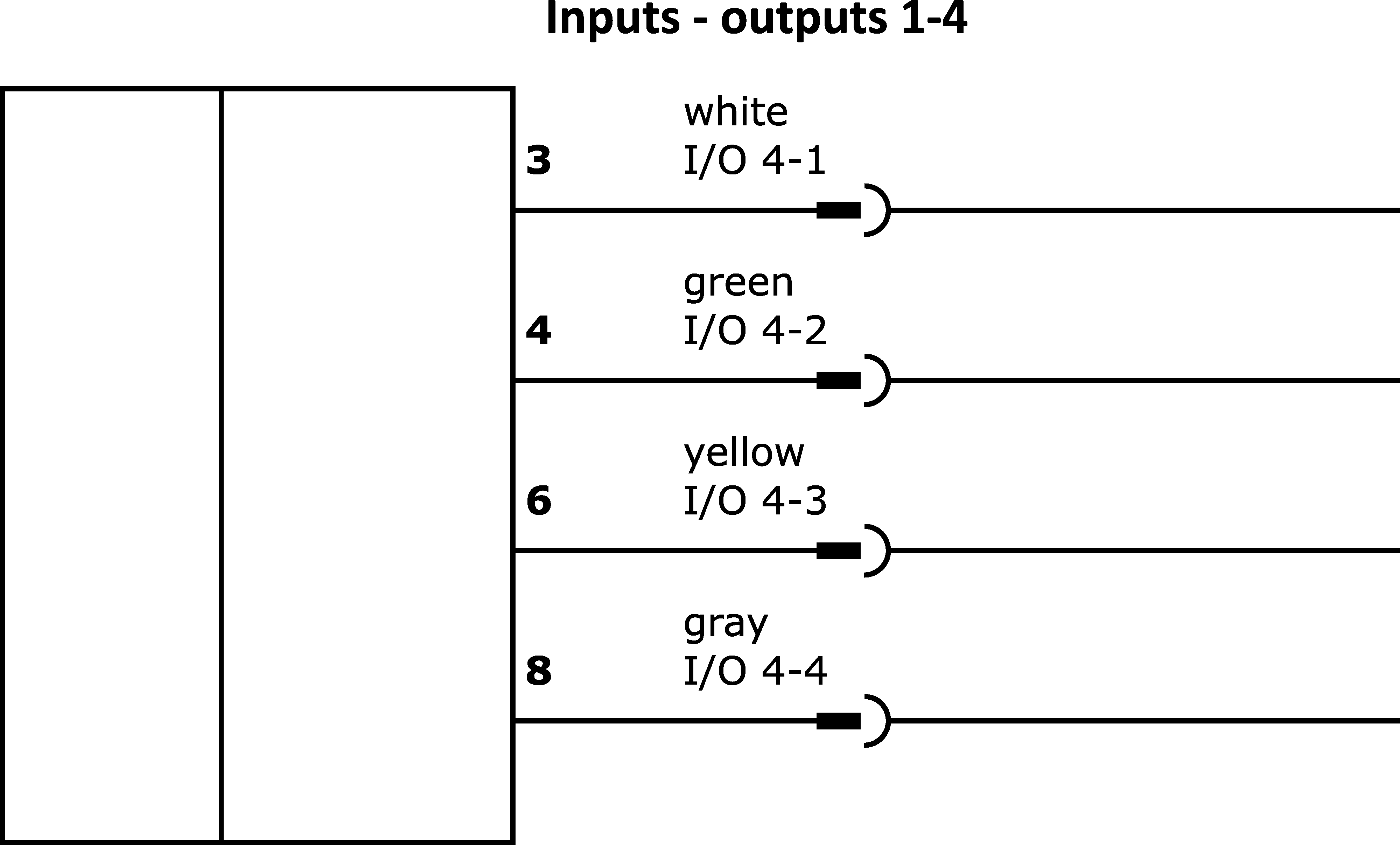

Electrical properties

Type of A electrical connection
M8
Type of B electrical connection
M12
Max. ampacity per I/O signal
1.5A
Max. total current
1.5A
Number of pins of A connection
3
Number of pins of B connection
12
Number of pins of trunk line
12
Number of slots
4
Operating voltage (DC)
10 - 30V
Display
LED display

Mechanical properties

Type of cable gland
none
Width
30mm
Height
28.8mm
Length
90.4mm
Degree of protection (IP)
IP67
Housing material
PBT

Other properties

Ambient temperature
-25 - 70°C
You can find accessories for VK001021 in these product groups:

Cable sockets M12-socket M8-connector 3-wire

Cable sockets M12 5-pin field attachable

Cable sockets M12 12-wire

Cable connectors M8 3-pin field-attachable

Cable sockets M12 4-pin field attachable

Adapter M12 socket 3-pin / M8 connector 3-pin

Cable socket M12 12-pin field-attachable

Accessories distribution terminal M8

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M12 12-wire shielded

Classification Class
eClass-7.0 27279219
eClass-7.1 27279219
eClass-8.0 27279219
eClass-9.0 27440108
eClass-9.1 27440108
ETIM-6.0 EC002585
ETIM-7.0 EC003558
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 855 cable sockets / connectors (distributor, accessories, diverse)
packaging dimensions 70 x 38 x 168mm
gross weight 100g
Customs tariff number 85366990
WEEE number 40951076
