Connection technology - Cable sockets / connectors pre-assembled on two sides

VK030F70

List price

12,50 €

Available

Connection cable, 0.3m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67, suitable for trailing chain and torsion resistant, oils and cooling lubricants, welding area, silicone-free

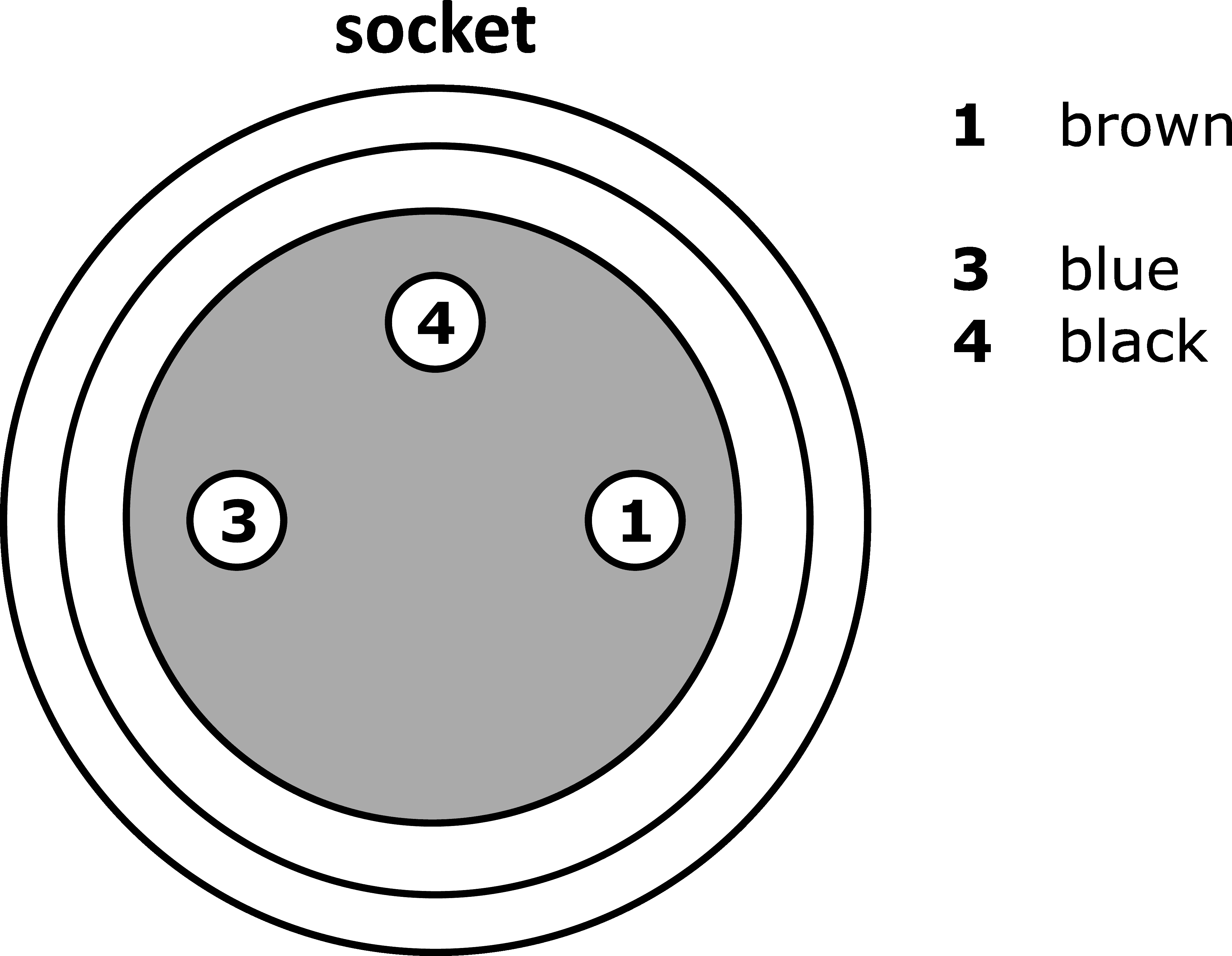

circuit diagram

dimensional drawing

Compare

Connection technology - Cable sockets / connectors pre-assembled on two sides

This connection cable has pre-wired connections on both sides. It can be used to cost-effectively integrate end devices with a plug connection via a distribution terminal or a logic module.

Electrical properties

Type of plug-in contact, A connection: Female (socket)

Type of plug-in contact, B connection: Male (connector)

Type of A electrical connection: M8

Type of B electrical connection: M8

Number of pins of A connection: 3

Number of pins of B connection: 3

Ampacity: 4A

Coding of connection A: A

Coding of connection B: A

Mechanical properties

Wire assembly: 42 x 0.1mm

Conductor cross-section: 0.34mm²

Number of cores: 3

Cable sheath color: black

Cable length: 0.3m

Cable infeed of A connection: angular

Cable infeed of B connection: straight

Maximum tightening torque of connection A: 0.6Nm

Maximum tightening torque of connection B: 0.6Nm

bending cycles: 5 million cycles

Degree of protection (IP): IP67

Torsion cycles: +/-360°/m, ≥ 2 million cycles

Contact coating material: Gold

Housing material: TPU

Material of cable sheath

Contact body material: Plastic (TPU)

Perm. ambient temperature of cable, fixed cable: -40 - 90°C

Perm. ambient temperature of cable, flexible cable: -30 - 90°C

Material of the screw fitting: Zinc diecast, nickel-plated (n-pltd)

Optical properties

Degree of soiling: 3

Other properties

Flame retardant: in accordance with EN 60332-2-2

Ambient temperature: -30 - 90°C
