VK004028
On demand

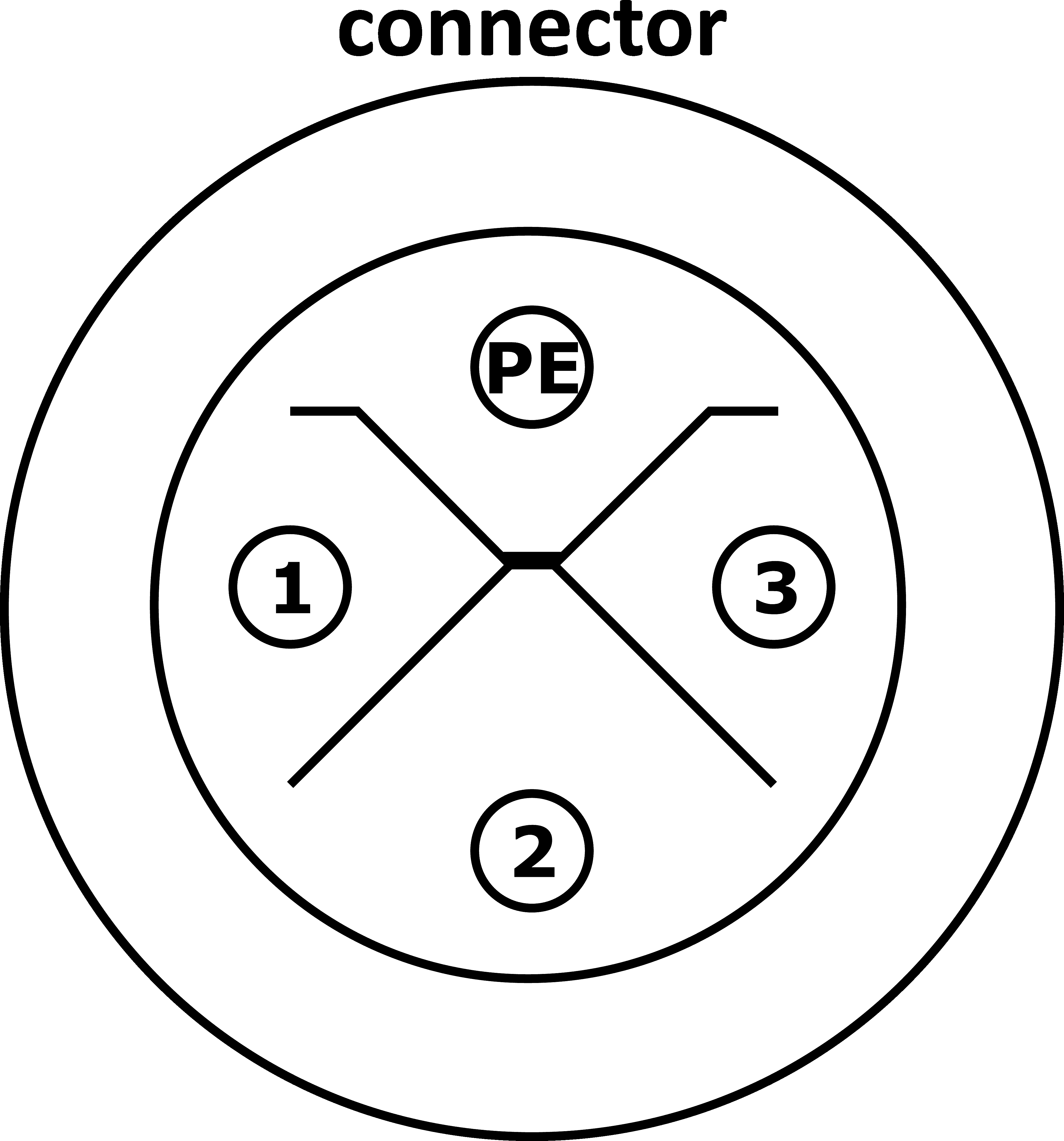

Cable connector, straight, self-assembly, screw connection, Ø8-10mm, 12A, 630V, -40-85°C, M12 connector 4-pin, IP67, PA 6 (plastic), S-coding
Compare
Connection technology - Cable sockets / connectors for self-assembly
ipf cable sockets are mainly used for the electrical connection of sensors. Their properties are characterized by the robust version, in the highest degrees of protection (IP67 | IP68 | IP69K) and with 360° shielding on request. With the features: bus-compatible, drag chain and robot-compatible, oil and chemical-resistant, welding spark-resistant, cleaning agent-resistant or resistant to high-pressure and steam jet cleaning, the enlarged temperature range up to +230°C, rapid interconnection (technology) or special data transmission properties, the cable sockets meet all the requirements of automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Male (connector)
- Type of A electrical connection
- M12
- Type of B electrical connection
- Screw connection
- Number of pins of A connection
- 4
- Ampacity
- 12A
- Coding of connection A
- S
- Operating voltage
Mechanical properties
- Cable infeed
- straight
- Degree of protection (IP)
- IP67
- Contact coating material
- Gold
- Housing material
- PA 6 (synthetic)
- Contact body material
- Brass
- Permitted cable diameter
- 8 - 10mm
Other properties
- Ambient temperature
- -40 - 85°C
| Classification | Class |
|---|---|
| eClass-7.0 | 27440102 |
| eClass-7.1 | 27440102 |
| eClass-8.0 | 27440102 |
| eClass-9.0 | 27440102 |
| eClass-9.1 | 27440102 |
| ETIM-6.0 | EC002062 |
| ETIM-7.0 | EC002062 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 852 cable sockets / connectors (self-assembly) |
| packaging dimensions | 120 x 20 x 100mm |
| gross weight | 25g |
| 0,14kg CO₂e | |
| Customs tariff number | 85369010 |
| WEEE number | 40951076 |
