Connection technology - Cable socket / connector Y-connection cable

VK030E24

VK030E24
List price
34,60 €
On demand

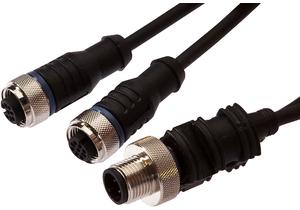

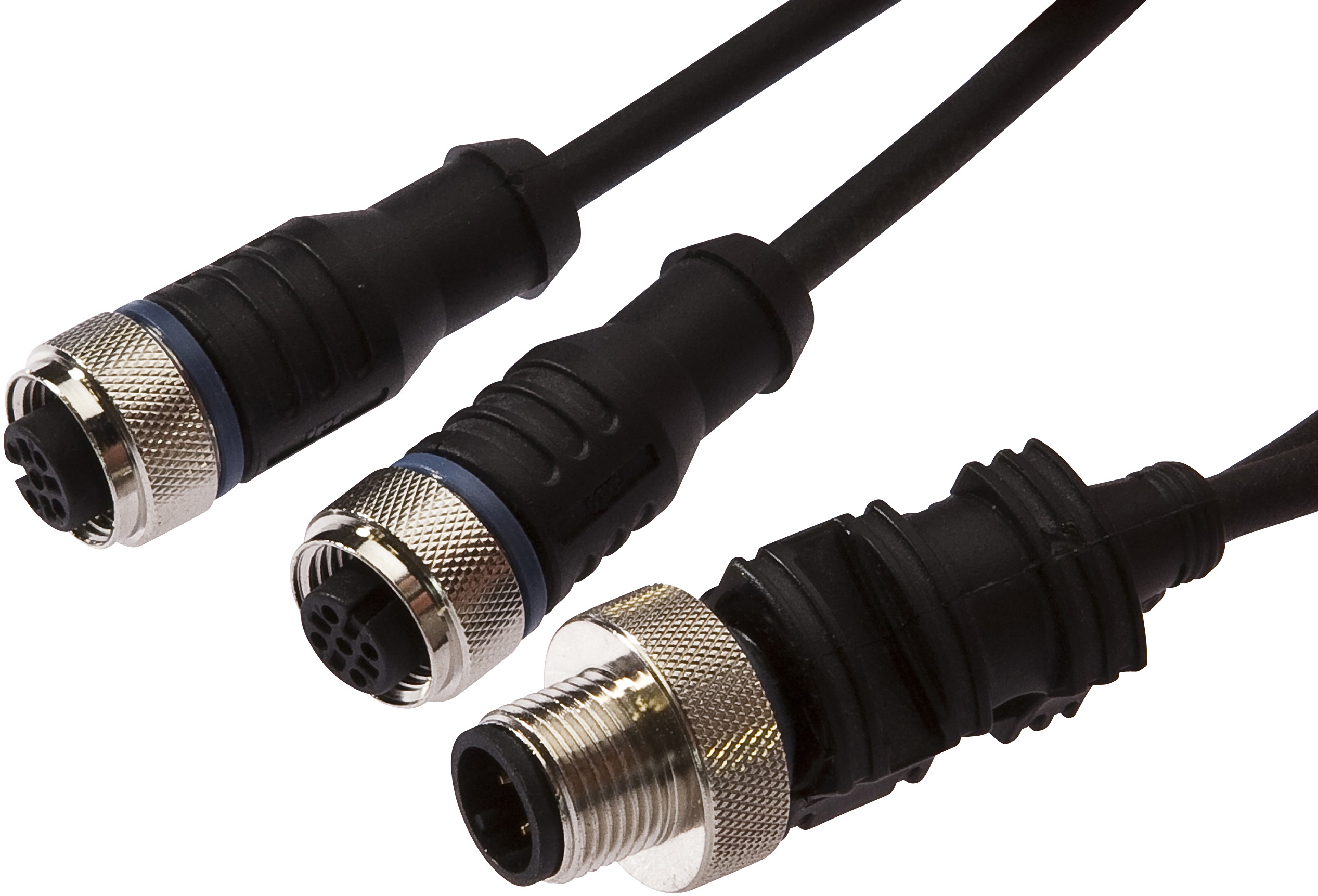

Y-connection cable, 0.3m, 2x M12 socket 3-pin straight, 1x M12 connector 4-pin straight, 3x0.34mm², PUR (polyurethane), 4A, suitable for trailing chain and torsion resistant, oils and cooling lubricants, welding area, silicone-free

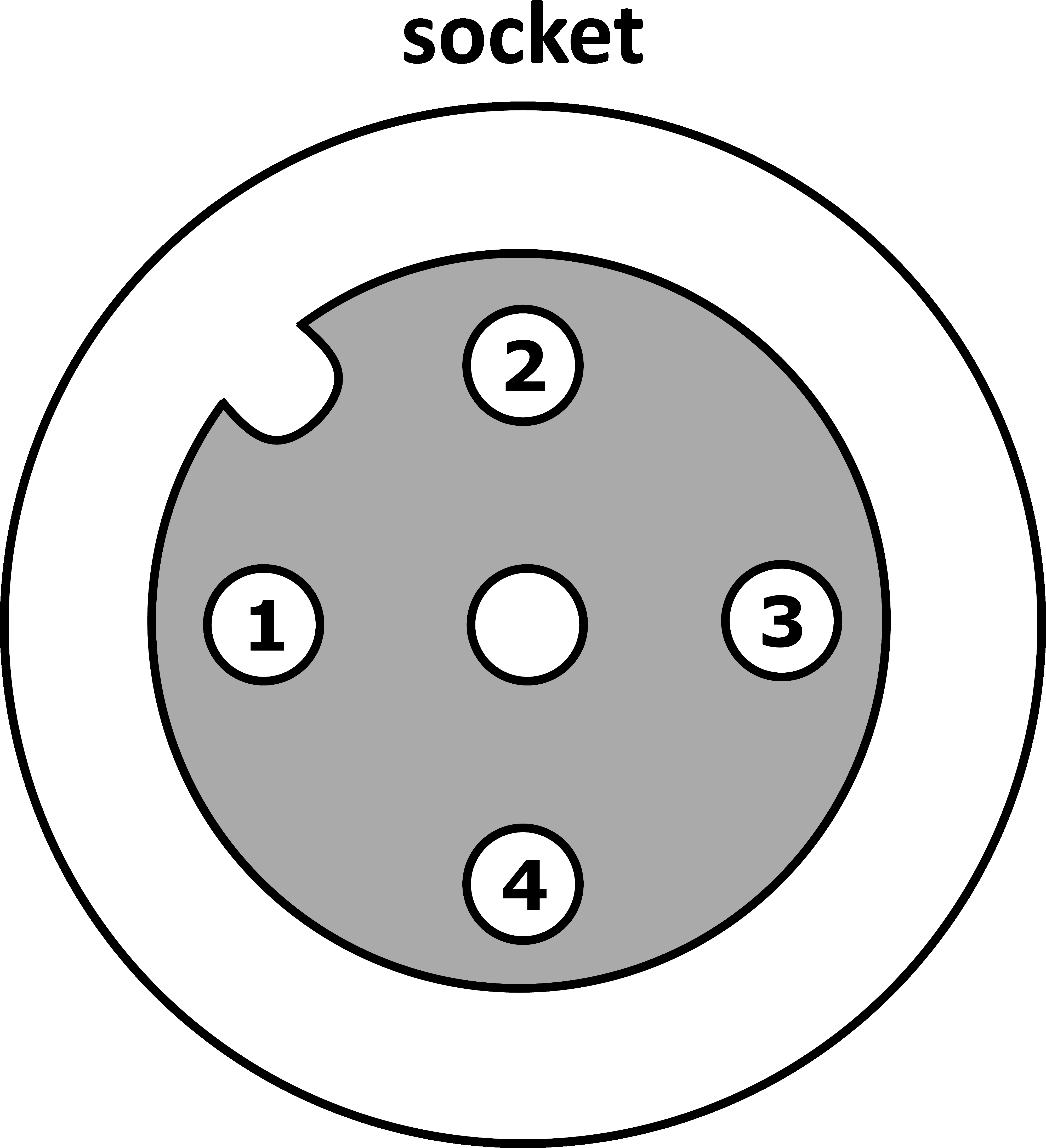

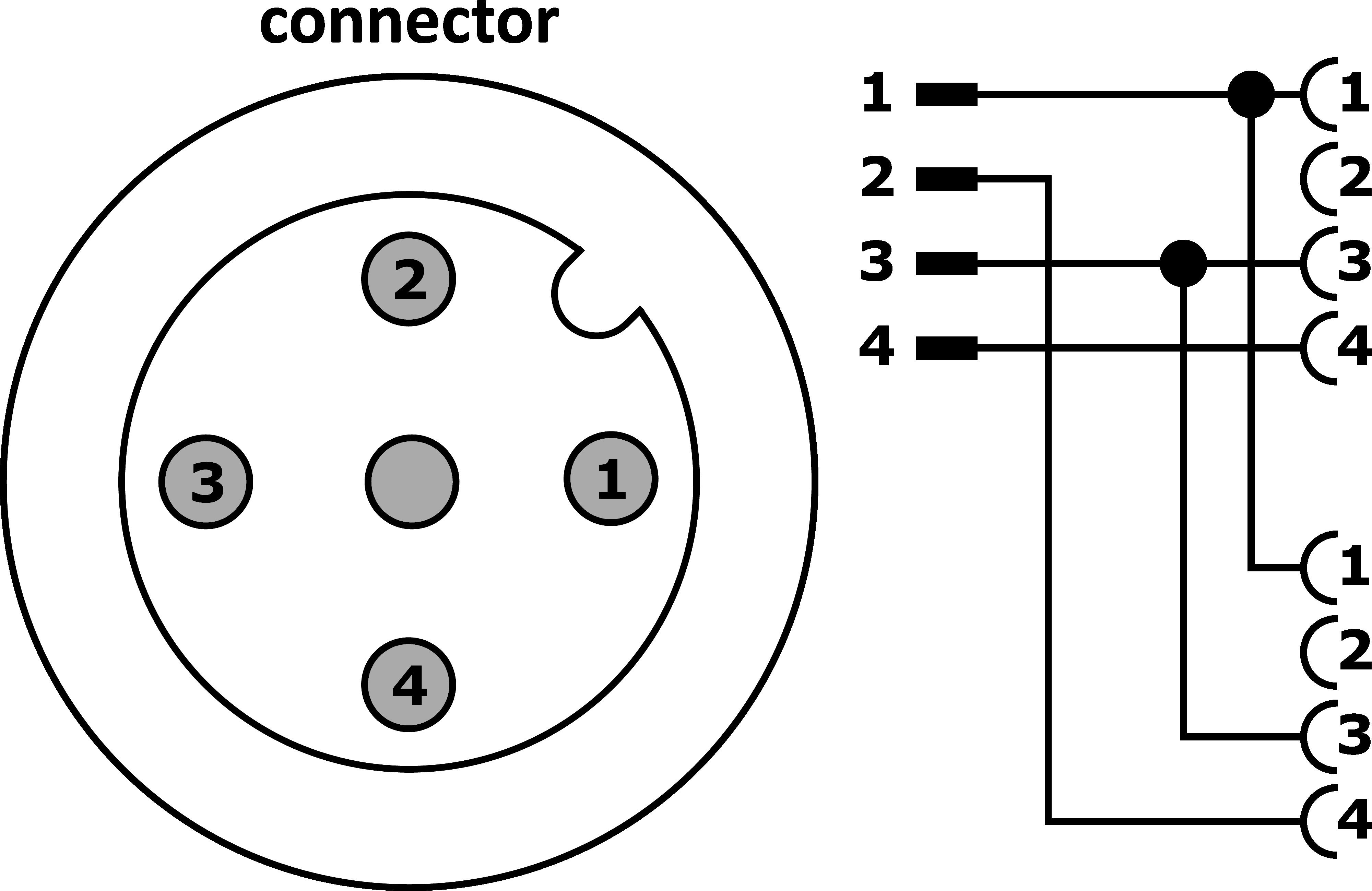

circuit diagram
3D model
Compare

Connection technology - Cable socket / connector Y-connection cable

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Electrical properties

Number of electrical connections, A connection
2
Number of electrical connections, B connection
1
Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
M12
Number of pins of A connection
3
Number of pins of B connection
4
Ampacity
4A

Mechanical properties

Conductor cross-section
0.34mm²
Number of cores
3
Cable length
0.3m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Maximum tightening torque of connection A
1Nm
Maximum tightening torque of connection B
1Nm
bending cycles
≥ 2 million cycles
Torsion cycles
+/-180°/m, ≥ 0.5 million cycles
Material of cable sheath

Other properties

Flame retardant
in accordance with EN 60332-2-2
You can find accessories for VK030E24 in these product groups:

Assembly

Mounting clip M12 connector/socket

AV000141
AV000141
accessories cable socket, Mounting clip, 13.5mm, PPO, Packaging unit 5, Accessories for Cable socket/connector M12
17,40 €
Your price
pack contains 5 pieces.
Available

Connection technology

Distribution module M12

VK000004
VK000004
Screw plug, M12x1.5, plastic, black
1,40 €
Your price
Available
VK000007
VK000007
distributor, 60x42x102mm, 10-30V DC, 4x M12, Hood distributor / pluggable trunk line connection 5pin, IP67, PBT, M20 x…
65,60 €
Your price
Available
VK000008
VK000008
distributor, 6x M12 5pin, PBT, M20 x 1.5
78,80 €
Your price
Available
VK000009
VK000009
Distribution terminal, 8x M12 5-pin, PBT, M20 x 1.5, LED
88,90 €
Your price
Scarce
VK000020
VK000020
Distribution terminal, 8x M12 5-pin, zinc diecast, M20 x 1.5
271,00 €
Your price
Scarce
VK000053
VK000053
Screw plug, M5, Plastic, Black
1,60 €
Your price
Available
VK001001
VK001001
distributor, 30x82x54mm, 10-30V DC, 4x M12, Fixed-cable distributor / connected trunk line 4pin, IP67, TPU, With LED…
64,30 €
Your price
Available
VK001002
VK001002
distributor, 30x100x54mm, 10-30V DC, 6x M12, Fixed-cable distributor / connected trunk line 4pin, IP67, TPU, With LED…
83,60 €
Your price
On demand
VK001003
VK001003
distributor, 30x127x54mm, 10-30V DC, 8x M12, Fixed-cable distributor / connected trunk line 4pin, IP67, TPU, With LED…
94,10 €
Your price
Available
VK001007
VK001007
distributor, 30x127x54mm, 10-30V DC, 8x M12 4pin, IP67, TPU, With LED display, Sensor/actuator slot with equipment…
111,30 €
Your price
Scarce
VK001016
VK001016
distributor, 30x152x60mm, 10-30V DC, 8x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, TPU, With LED…
125,00 €
Your price
Scarce
VK98E197
VK98E197
distributor, 25x161x54mm, 30V, 8x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, Polyamide PA, With LED…
166,10 €
Your price
Available
VK98E198
VK98E198
distributor, 25x134x54mm, 30V, 6x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, Polyamide PA, With LED…
152,60 €
Your price
Scarce
VK98E199
VK98E199
distributor, 25x124x54mm, 30V, 4x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, Polyamide PA, With LED…
113,90 €
Your price
Scarce

Other sensors

Label

AV000117
AV000117
Labeling material, Label, 2,1x30x4mm, Plastic PC, 34 identification labels
8,40 €
Your price
Available

Tool

Key inserts for torque wrenches

AV98F001
AV98F001
Tool, key insert for torque wrench, SW14
43,90 €
Your price
Available
AV98F002
AV98F002
Tool, wrench insert for torque wrench, SW13
43,90 €
Your price
Scarce
AV98F003
AV98F003
Tool, wrench bit for torque wrench, SW9
43,90 €
Your price
Scarce
AV98F004
AV98F004
Tool, wrench insert for torque wrench, SW18
48,50 €
Your price
Available

Torque wrench SW9 / SW13

AV000140
AV000140
Tool, Torque wrench, Screwdriver model, Hexagon socket 4mm, With scale, Resolution 0.05Nm
185,40 €
Your price
Available
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060313
eClass-9.1 27060313
ETIM-6.0 EC002585
ETIM-7.0 EC002585
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 851 cable sockets / connectors (both side ready made)
packaging dimensions 160 x 30 x 240mm
gross weight 60g
1,17kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
