DISCONTINUED PRODUCT

VK508F21

VK508F21
List price
59,20 €
Successor model?
We would be pleased to advise you!
Scarce
Data cable, Connection cable, 5m, M12 Male (connector) 4pin Angular, D-coding, RJ45 Male (connector) 4pin Straight, 4x0.14mm², Category 5E, -40-75°C, TPU, Shielded

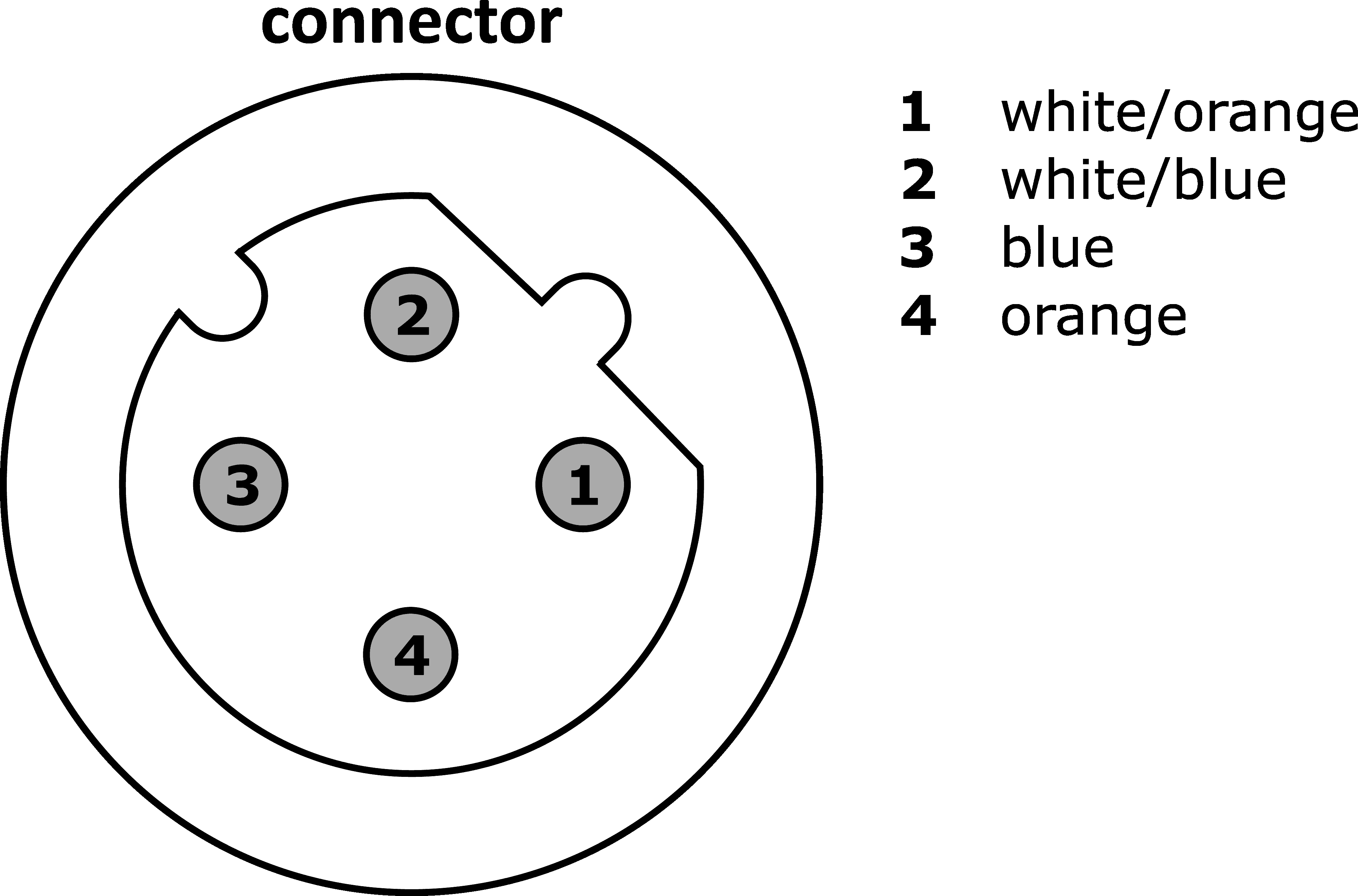

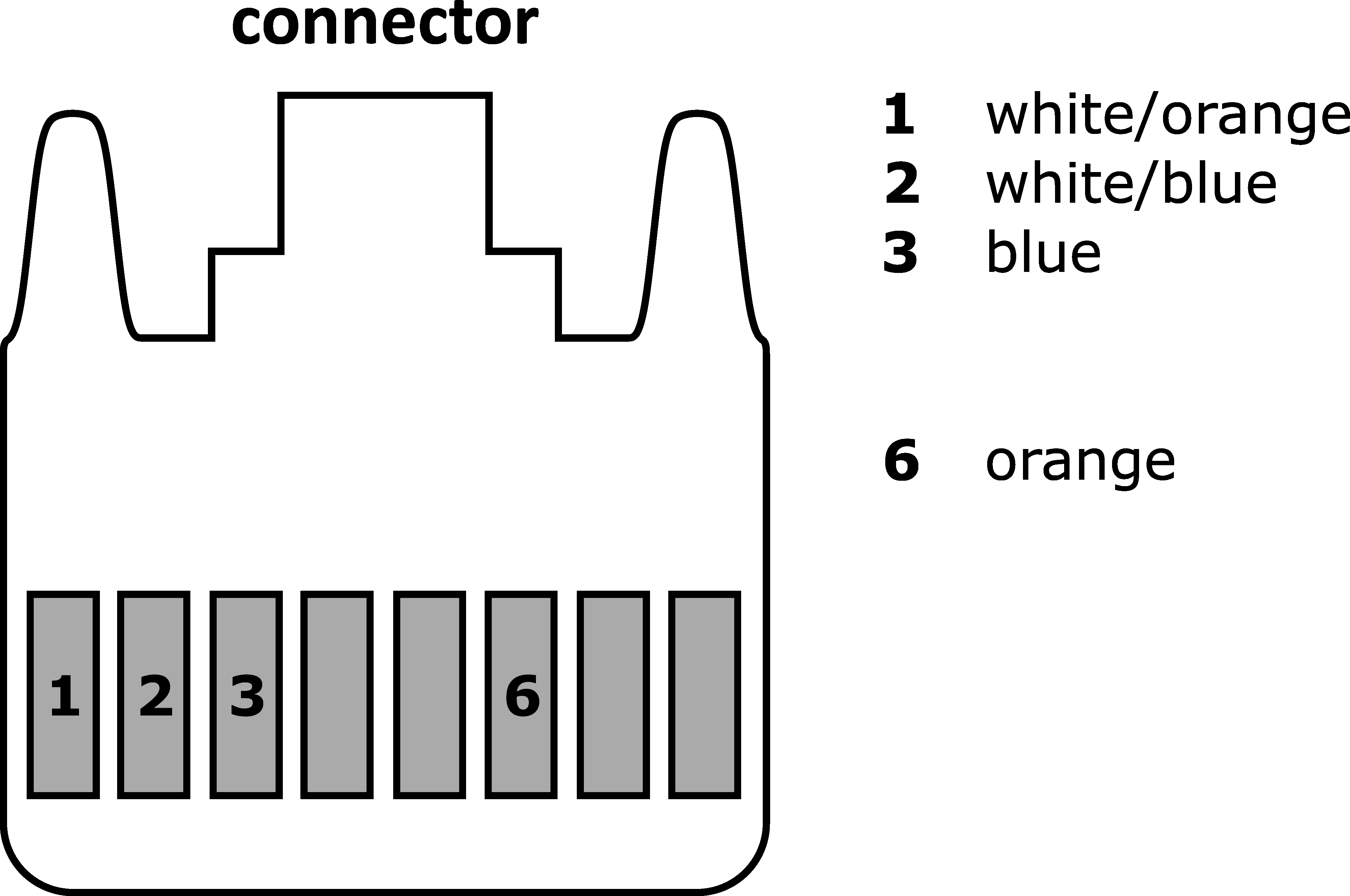

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Data transfer

This shielded cable tail can be used to transmit complex information digitally into a network for further processing. The connections are pre-wired.

The VK508F21 is equipped with a 4-pin D-coded M12-connector on the device side and an RJ45 connector on the network side.

Transmission classification
Cat5e

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
RJ45
Number of pins of A connection
4
Number of pins of B connection
4
Coding of connection A
D
Shielded
Yes

Mechanical properties

Wire assembly
18 x 0.1mm
Conductor cross-section
0.14mm²
Number of cores
4
Outer diameter
4.8mm
Cable sheath color
green
Cable length
5m
Cable infeed of A connection
angular
Cable infeed of B connection
straight
Housing material
TPU
Material of cable sheath
Perm. ambient temperature of cable, fixed cable
-40 - 75°C
Material of the contacts Connection A
CuSn, gold-plated
CuZn, gold-plated

Other properties

Ambient temperature
-30 - 70°C
You can find accessories for VK508F21 in these product groups:

Assembly

Mounting clip M12 connector/socket

AV000141
AV000141
accessories cable socket, Mounting clip, 13.5mm, PPO, Packaging unit 5, Accessories for Cable socket/connector M12
17,40 €
Your price
pack contains 5 pieces.
Available

Connection technology

Connection cable M12-connector RJ45-connector

VK208F25
VK208F25
Data cable, connection cable, 2m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm²,…
46,70 €
Your price
Scarce
VK308F25
VK308F25
Data cable, connection cable, 3m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm²,…
54,90 €
Your price
Scarce
VK508F21
VK508F21
Data cable, Connection cable, 5m, M12 Male (connector) 4pin Angular, D-coding, RJ45 Male (connector) 4pin Straight,…
59,20 €
Your price
Scarce
VK508F25
VK508F25
Data cable, connection cable, 5m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm²,…
60,30 €
Your price
Scarce
VK608F25
VK608F25
Data cable, connection cable, 6m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm²,…
74,70 €
Your price
Scarce
VKA08F25
VKA08F25
Data cable, connection cable, 10m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm²,…
83,30 €
Your price
Scarce

Tool

Key inserts for torque wrenches

AV98F001
AV98F001
Tool, key insert for torque wrench, SW14
43,90 €
Your price
Available
AV98F002
AV98F002
Tool, wrench insert for torque wrench, SW13
43,90 €
Your price
Scarce
AV98F003
AV98F003
Tool, wrench bit for torque wrench, SW9
43,90 €
Your price
Scarce
AV98F004
AV98F004
Tool, wrench insert for torque wrench, SW18
48,50 €
Your price
Available

Torque wrench SW9 / SW13

AV000140
AV000140
Tool, Torque wrench, Screwdriver model, Hexagon socket 4mm, With scale, Resolution 0.05Nm
185,40 €
Your price
Available
Classification Class
eClass-7.0 27060390
eClass-7.1 27060390
eClass-8.0 27060390
eClass-9.0 27060390
eClass-9.1 27060390
ETIM-6.0 EC001262
ETIM-7.0 EC001262
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 851 cable sockets / connectors (both side ready made)
packaging dimensions 190 x 19 x 190mm
gross weight 180g
0,81kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
