Connection technology - Data transfer

VKA08F25

VKA08F25
List price
83,30 €
Scarce

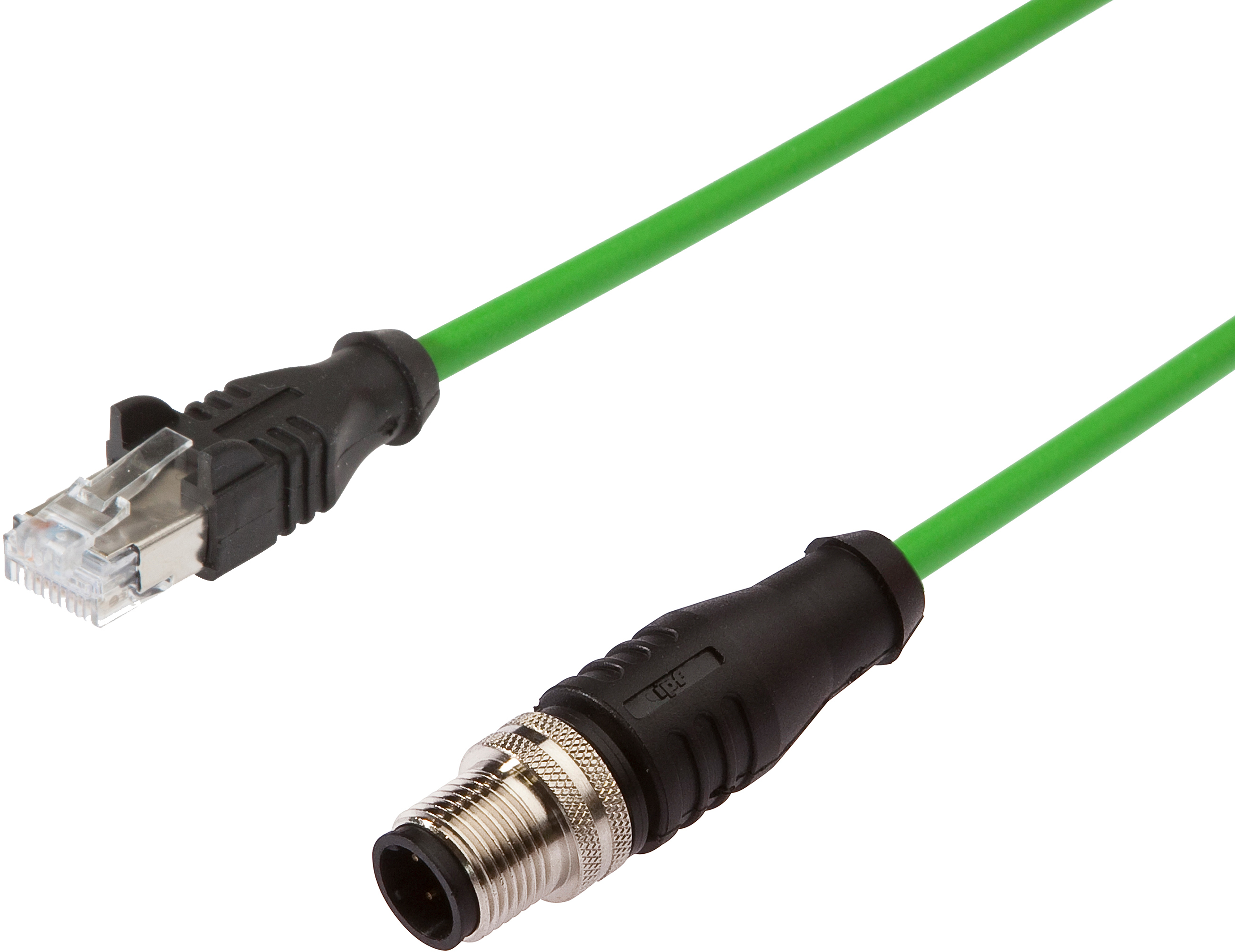

Data cable, connection cable, 10m, M12 connector 4-pin straight, D-coding, RJ45 connector 4-pin straight, 4x0.14mm², category 5E, -40-75°C, TPU, shielded

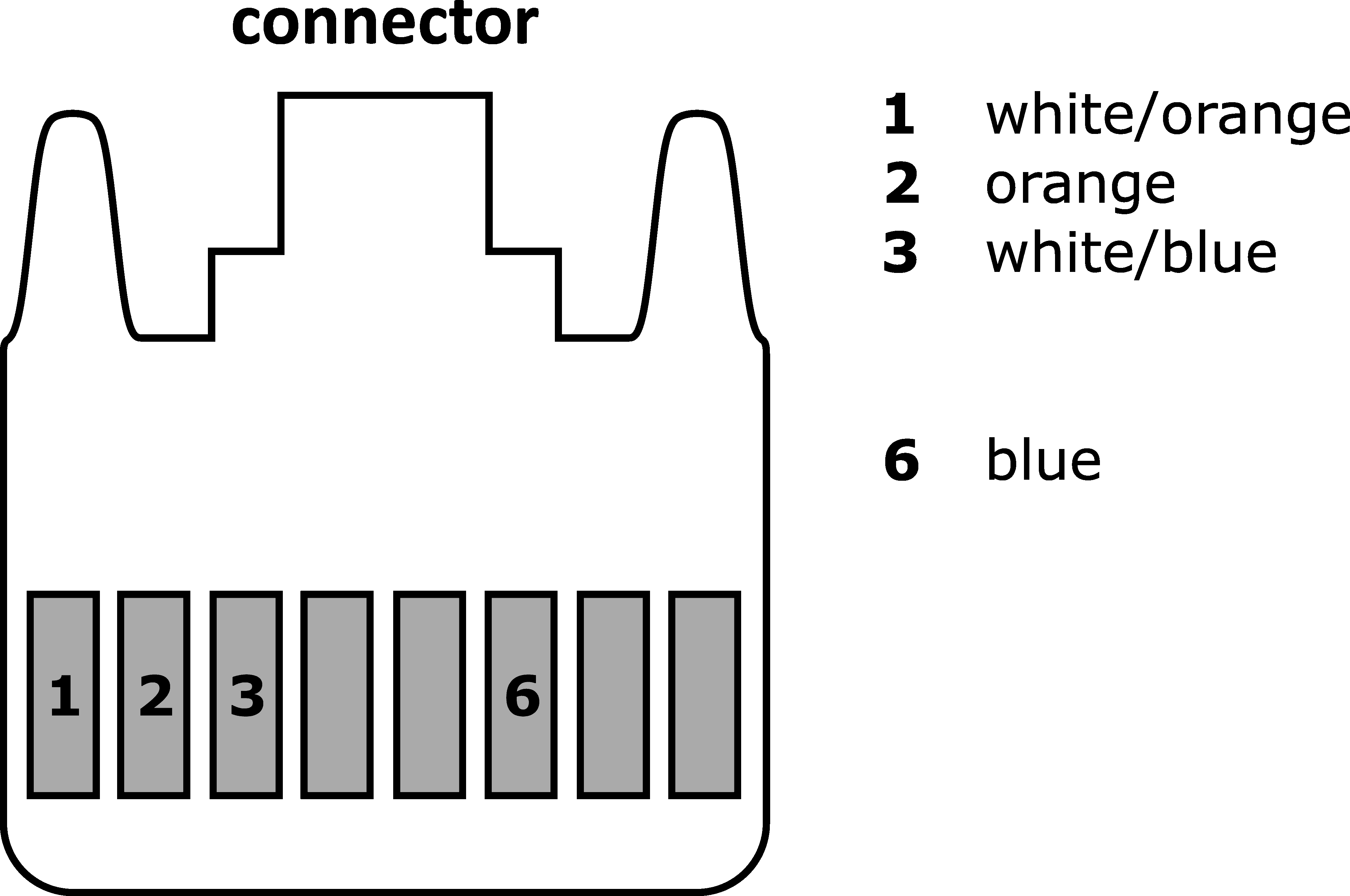

circuit diagram

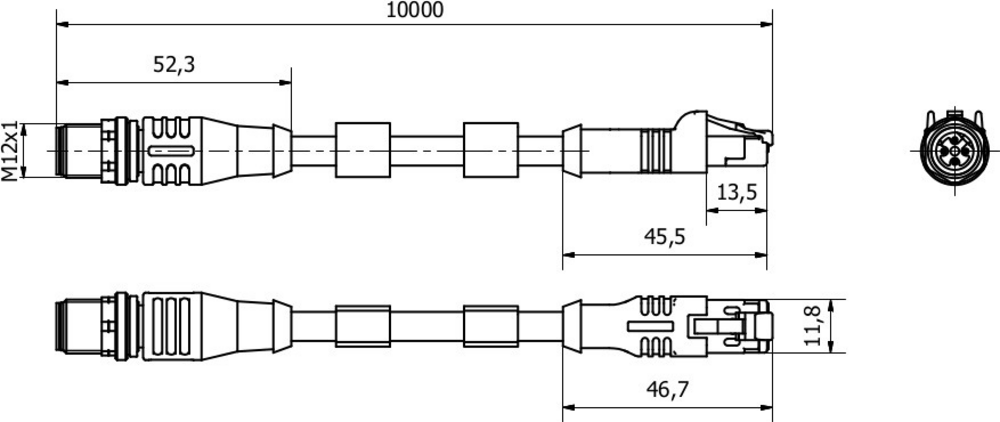

dimensional drawing
3D model
Compare

Connection technology - Data transfer

This shielded cable tail can be used to transmit complex information digitally into a network for further processing. The connections are pre-wired.

The VKA08F25 is equipped with a 4-pin D-coded M12-connector on the device side and an RJ45 connector on the network side.

Transmission classification
Cat5e

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
RJ45
Number of pins of A connection
4
Number of pins of B connection
4
Coding of connection A
D
Supported communication interface
1x 100MbE, 1x RS485, EtherCAT, Ethernet, Ethernet Industrial Protocol
Shielded
Yes

Mechanical properties

Wire assembly
18 x 0.1mm
Conductor cross-section
0.14mm²
Number of cores
4
Outer diameter
4.8mm
Cable sheath color
green
Cable length
10m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Housing material
TPU
Material of cable sheath
Perm. ambient temperature of cable, fixed cable
-40 - 75°C
Material of the contacts Connection A
CuSn, gold-plated
CuZn, gold-plated

Other properties

Ambient temperature
-30 - 70°C
