Connection technology - Cord switch
VY062174
| amount | price | discount |
|---|---|---|
| 1 | 43,10 € | – |
| 5 | 41,81 € | 3% / 1,29 € |
| 10 | 40,95 € | 5% / 2,16 € |
| 20 | 39,65 € | 8% / 3,45 € |
| 50 | 37,93 € | 12% / 5,17 € |
Available

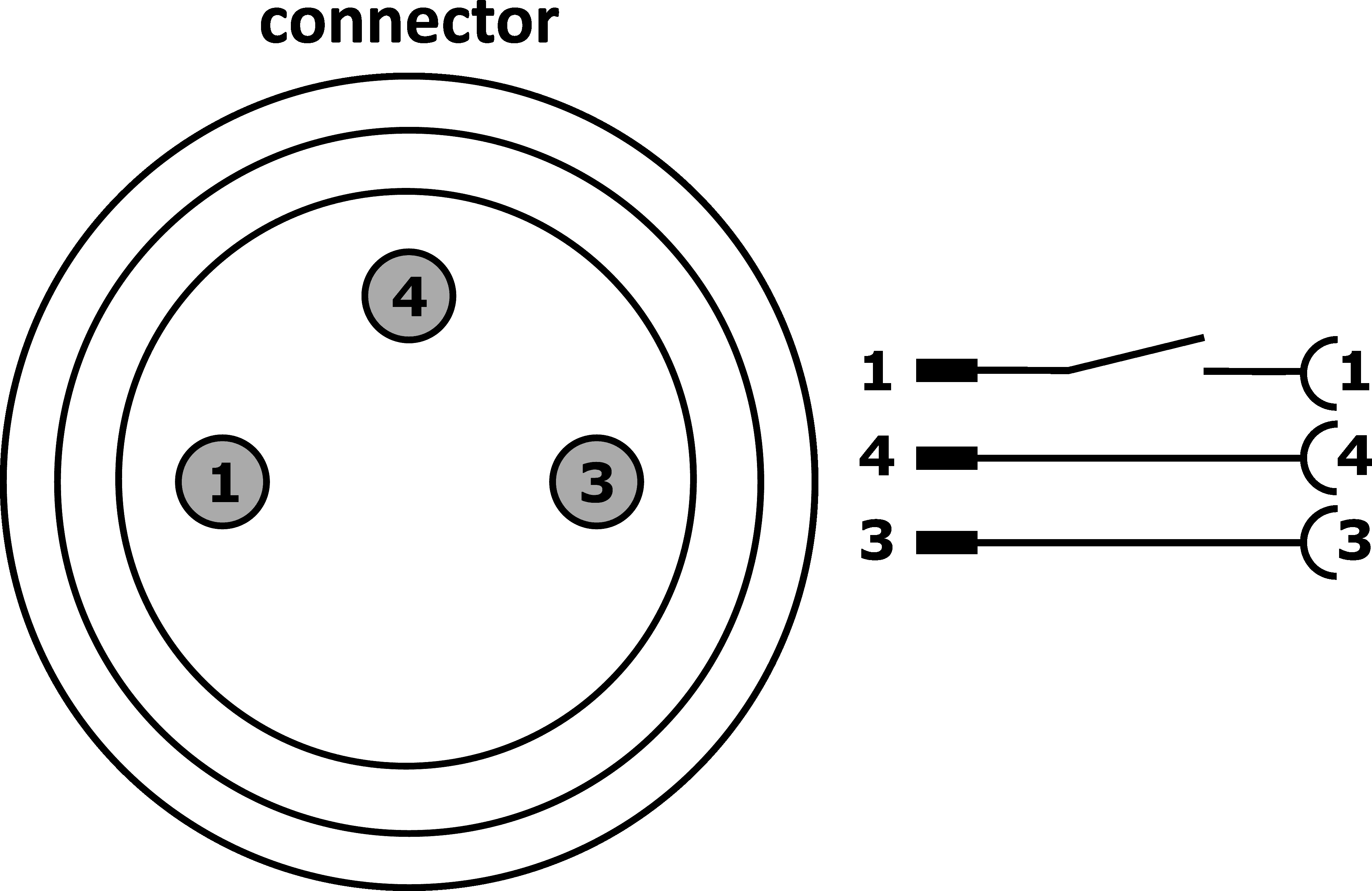

Switch, 0.6m, M8 Female (socket) 3pin Straight, M8 Male (connector) 3pin Straight, 3x0.34mm², PUR (Polyurethane), Ø4.3mm, 60V, IP20
Compare
Connection technology - Cord switch
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of plug-in contact, B connection
- Male (connector)
- Type of A electrical connection
- M8
- Type of B electrical connection
- M8
- Number of pins of A connection
- 3
- Number of pins of B connection
- 3
Mechanical properties
- Line diameter
- 4.3mm
- Wire assembly
- 42 x 0.1mm
- Conductor cross-section
- 0.34mm²
- Number of cores
- 3
- Cable length
- 0.6m
- Cable infeed of A connection
- straight
- Cable infeed of B connection
- straight
- Maximum tightening torque of connection A
- 0.6Nm
- Maximum tightening torque of connection B
- 0.6Nm
- Degree of protection (IP)
- IP20
- Material of cable sheath
- Perm. ambient temperature of cable, fixed cable
- -25 - 80°C
Other properties
Datasheets
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27144040 |
| eClass-7.1 | 27144040 |
| eClass-8.0 | 27144040 |
| eClass-9.0 | 27144040 |
| eClass-9.1 | 27144040 |
| ETIM-6.0 | EC000445 |
| ETIM-7.0 | EC000445 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E509333 |
| TSCA-compliant | Yes |
| SCIP number | 02a19814-641f-4f49-a2cd-c7af668205a6 |
| IPF Product Group | 800 miscellaneous |
| packaging dimensions | 124 x 28 x 149mm |
| gross weight | 70g |
| 9,34kg CO₂e | |
| Customs tariff number | 85444290 |
| WEEE number | 40951076 |
