Monitors - Rotation speed
VY860800
| amount | price | discount |
|---|---|---|
| 1 | 196,50 € | – |
| 5 | 190,61 € | 3% / 5,90 € |
| 10 | 186,68 € | 5% / 9,82 € |
| 20 | 180,78 € | 8% / 15,72 € |
| 50 | 172,92 € | 12% / 23,58 € |
Scarce
speed monitoring, 65x85x36mm, 10-800Hz, 24V DC, 1x Relay contact NC, IP20, Plastic PC, With start-up delay, Dual channel, Teach-In
Compare
Monitors - Rotation speed
The monitoring of rotation speed or rotating movements is necessary in many applications to ensure the proper operation of the plant. Our rotation- and zero speed monitors operate according to different operating principles: 1. Monitoring of pulses of a transducer via a current transfomer, 2.Frequency measurement of the phase current Our devices feature, depending on the type, a wide variety of functions. For a further evaluation in a higher-level control, the results are i.e. outputted as easy relay contact (over-/ underspeed) or as analog output signal resolved to the set rotation speed range.
- Monitoring functions of the monitor
- Rotation speed
Electrical properties
- Number of outputs
- 1
- Type of switching function
- Normally closed contact
- Type of switching output
- Relay contact
- Evaluation of inputs
- Dual channel
- Rated switching current
- 1,500mA
- Operating frequency
- 10 - 800Hz
- Setting procedure
- Teach-In
- Power consumption
- 15VA
- Max. input frequency for reset
- 3kHz
- Minimum pulse length
- 1.25ms
- Switching voltage
- 250V
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 24V
- Display
- LED display
Mechanical properties
- Width
- 35.6mm
- Height
- 65mm
- Length
- 85mm
- Mounting method
- DIN rail (top hat rail) 35 mm
- Degree of protection (IP)
- IP20
- Housing material
- Plastic PC
Other properties
- Ambient temperature
- -25 - 75°C
- Version
- With start-up delay
Accessories VY86
Datasheets
-
pdfProduct data sheetPDF-file, 3 MB
-
pdfCatalog data sheetPDF-file, 1 MB
-
pdfAutomatic data sheetPDF-file, 579 KB
Drawings
-
jpgBlueprintJPG-file, 22 KB
-
dwg2DDWG-file, 462 KB
-
stp3DSTP-file, 58 KB
-

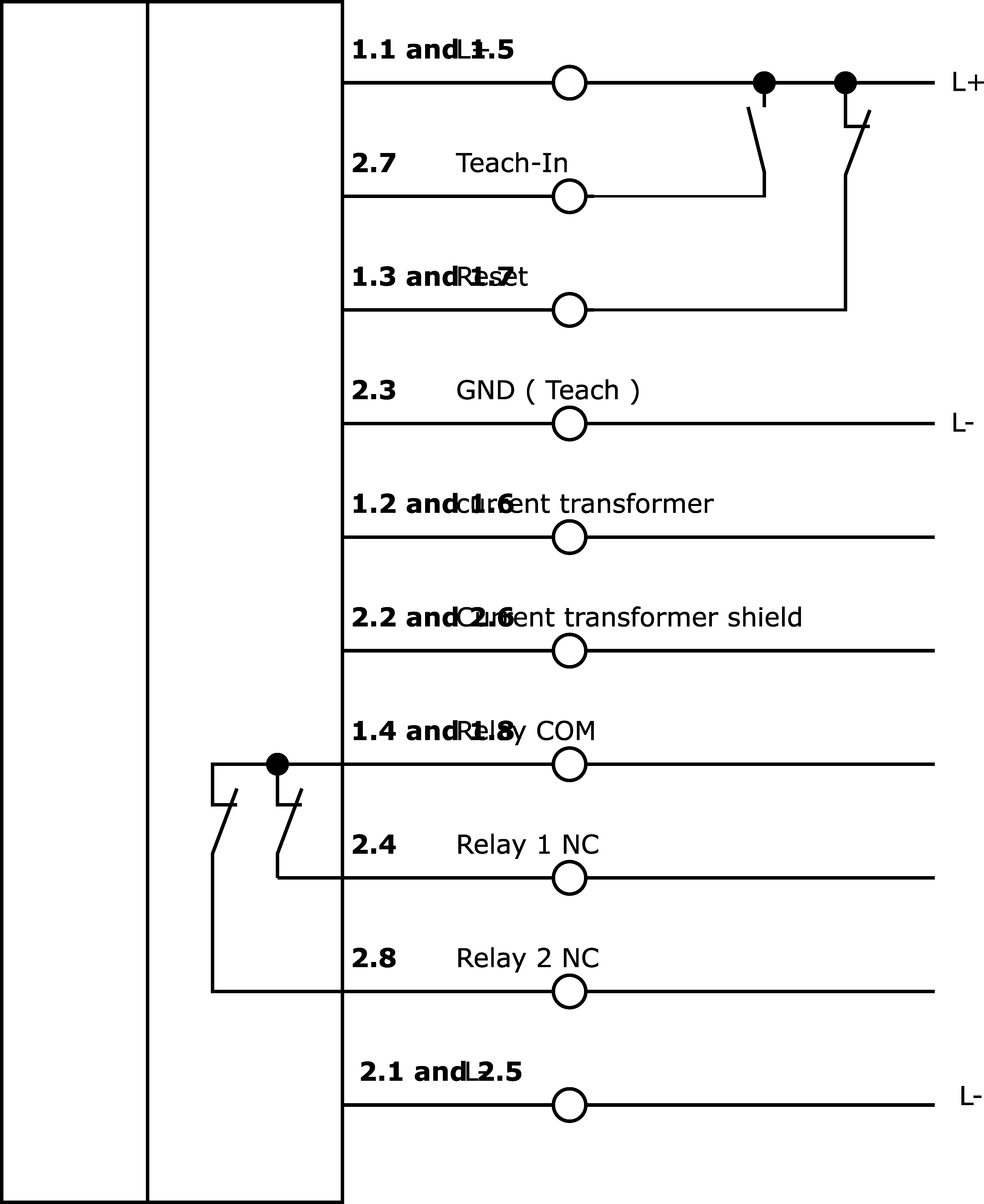

pngWiring diagram - internetPNG-file, 14 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
| Classification | Class |
|---|---|
| eClass 7.0 | 27230220 |
| eClass 7.1 | 27230220 |
| eClass 8.0 | 27230220 |
| eClass 9.0 | 27230220 |
| eClass 9.1 | 27230220 |
| ETIM-6.0 | EC001448 |
| ETIM-7.0 | EC001448 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 800 miscellaneous |
| packaging dimensions | 76 x 50 x 121mm |
| gross weight | 132g |
| Customs tariff number | 90292038 |
| WEEE number | 40951076 |
