Time delay relay - Impulse / pause

ZI535480

ZI535480
List price
177,30 €
amount price discount
1 177,30 € –
5 171,98 € 3% / 5,32 €
10 168,44 € 5% / 8,87 €
20 163,12 € 8% / 14,18 €
50 156,02 € 12% / 21,28 €
Scarce

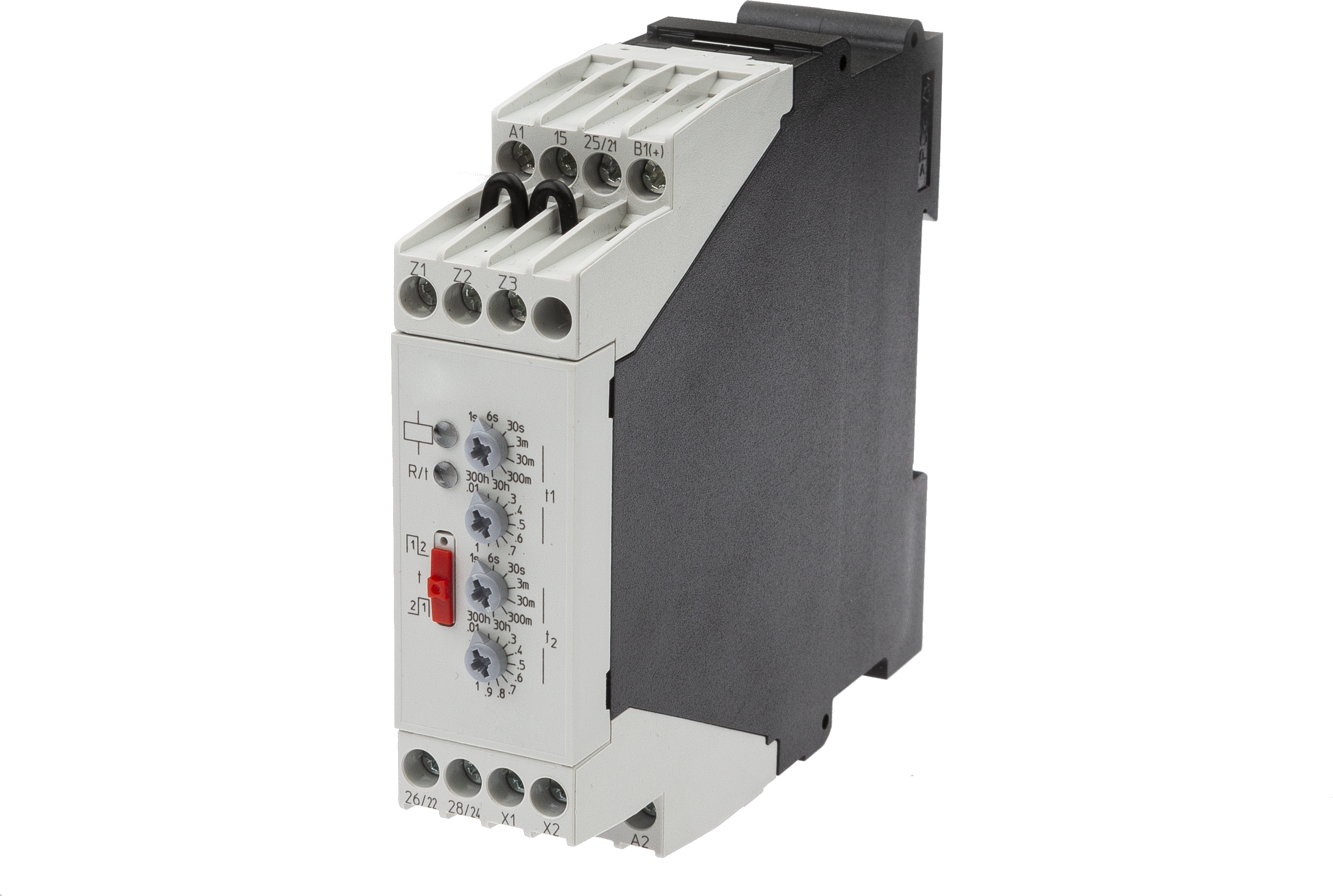

Time delay relay – pulse/pause, 90x97x22mm, 0.05-1080000s, 12-240V AC, 12-240V DC, -40-60°C, 2x Relay contact Change-over contact, 14pin, IP20, Plastic, Potentiometer

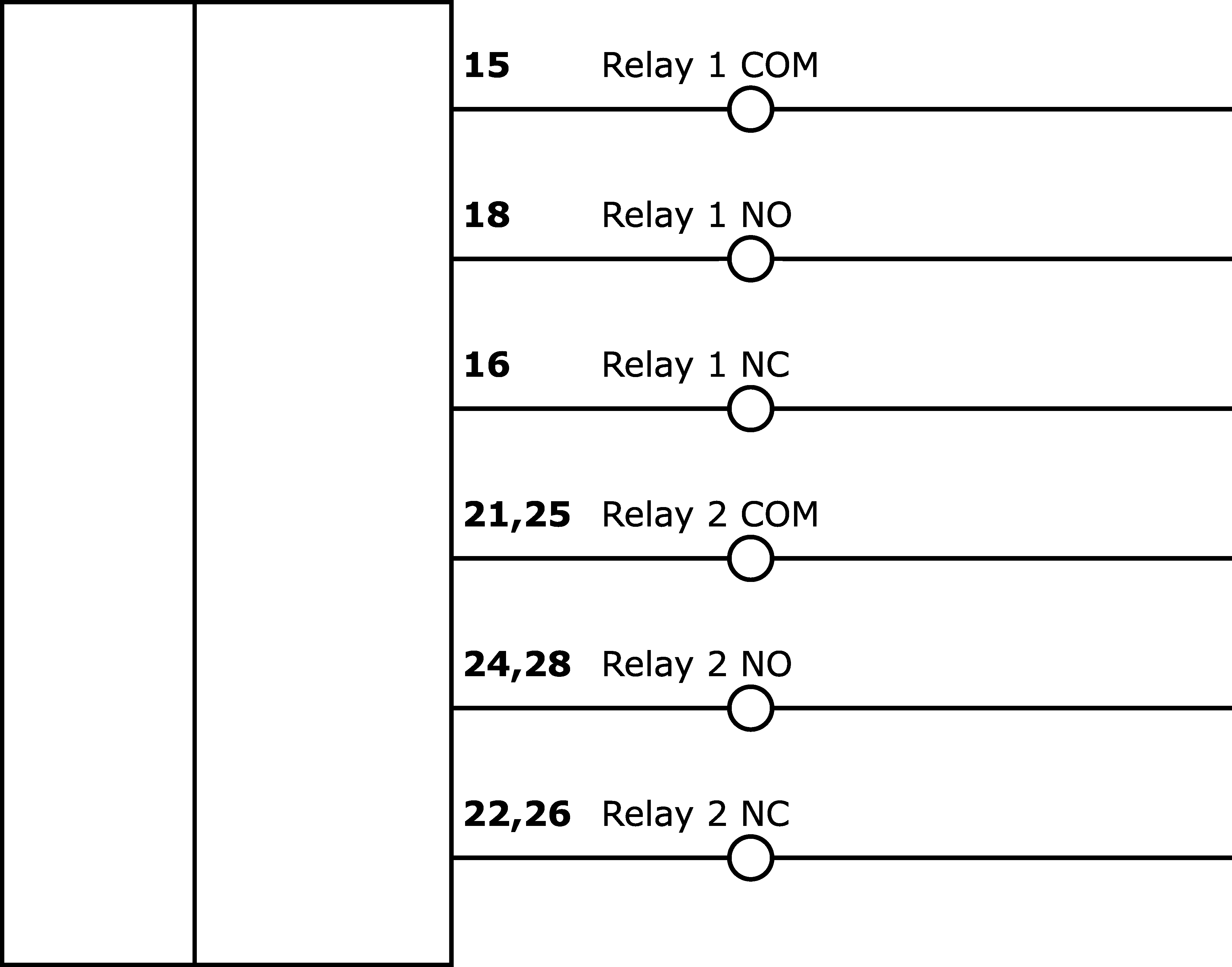

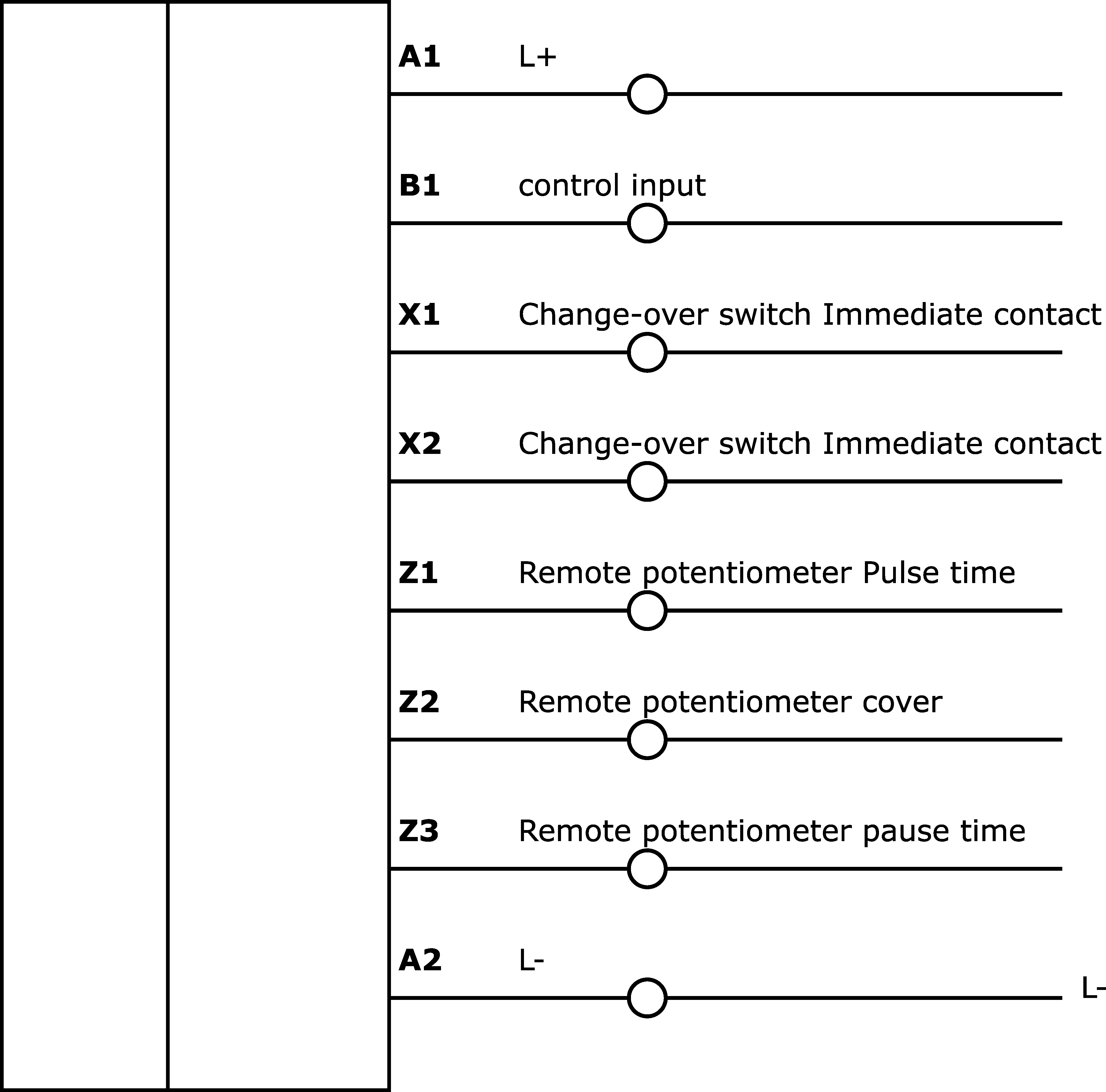

circuit diagram

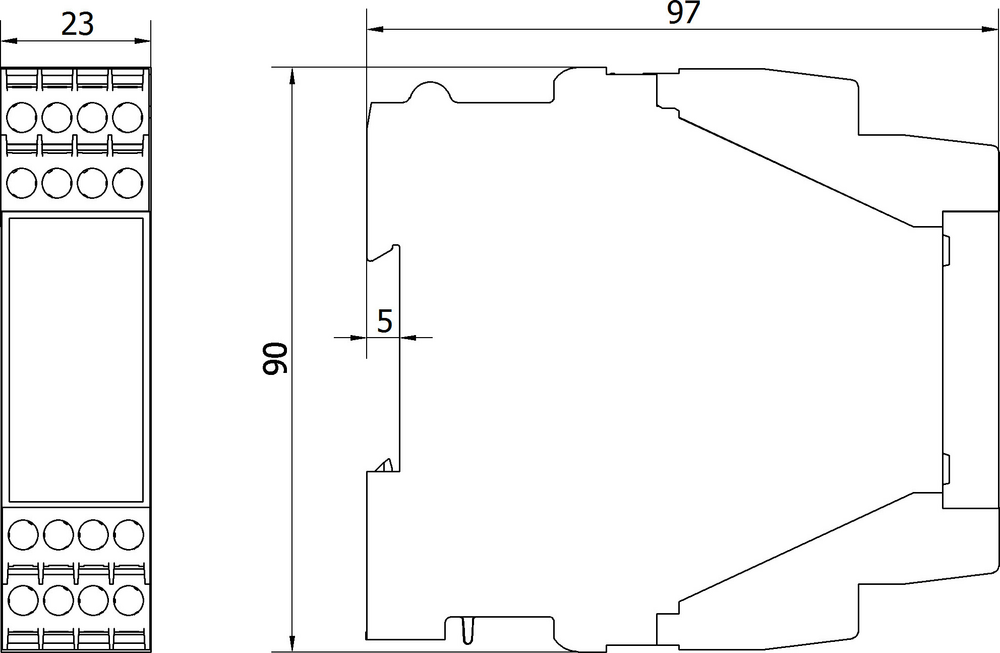

dimensional drawing
3D model
Compare

Time delay relay - Impulse / pause

Electrical properties

Number of contacts as change-over contact
2
Number of switching outputs
2
Number of time ranges
8
Type of switching function
Change-over contact (NO/NC)
Type of electrical connection
Clamped terminal connection
Type of switching output
Relay contact
Rated switching current
3,000mA
Readiness delay
80ms
Setting procedure
Manual adjustment, Potentiometer (external)
Power consumption
3VA
Number of pins
14
Relative repeat accuracy
0.5%
Switching voltage
250V
Voltage type for actuation
AC/DC
Time range
0.05 - 1,080,000s
Decay time
10ms
Operating voltage (AC 50Hz)
12 - 240V
Operating voltage (DC)
12 - 240V
Display
LED display
Clock function, starting with pulse, variable
Yes
Clock function, starting with break, variable
Yes

Mechanical properties

Width
22.5mm
Height
90mm
Length
97mm
Maximum tightening torque
0.8Nm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic

Other properties

Ambient temperature
-40 - 60°C
Print data
Classification Class
eClass-7.0 27371790
eClass-7.1 27371790
eClass-8.0 27371605
eClass-9.0 27371605
eClass-9.1 27371605
ETIM-6.0 EC001439
ETIM-7.0 EC001439
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 600 time delay relay
packaging dimensions 145 x 45 x 170mm
gross weight 223g
Customs tariff number 85364900
WEEE number 40951076
