Process Data Analysis - Accessories

AB000008

AB000008
Your price
604,00 €
543,90 €
Scarce
IoT Gateway Accessories, modules, 25 x 139 x 110 mm, 4 AC current sensors, active, reactive, and apparent power, terminals, IP20

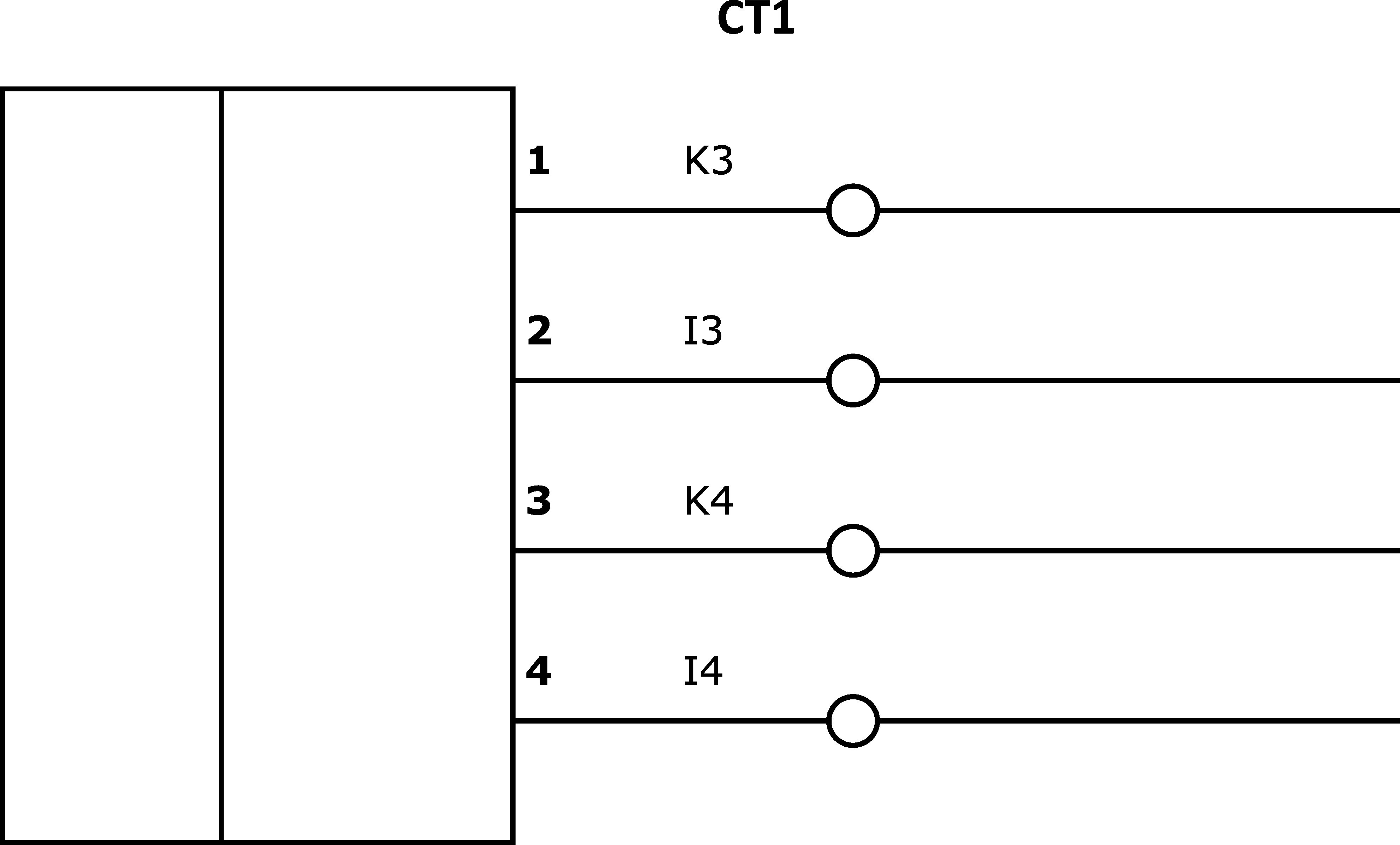

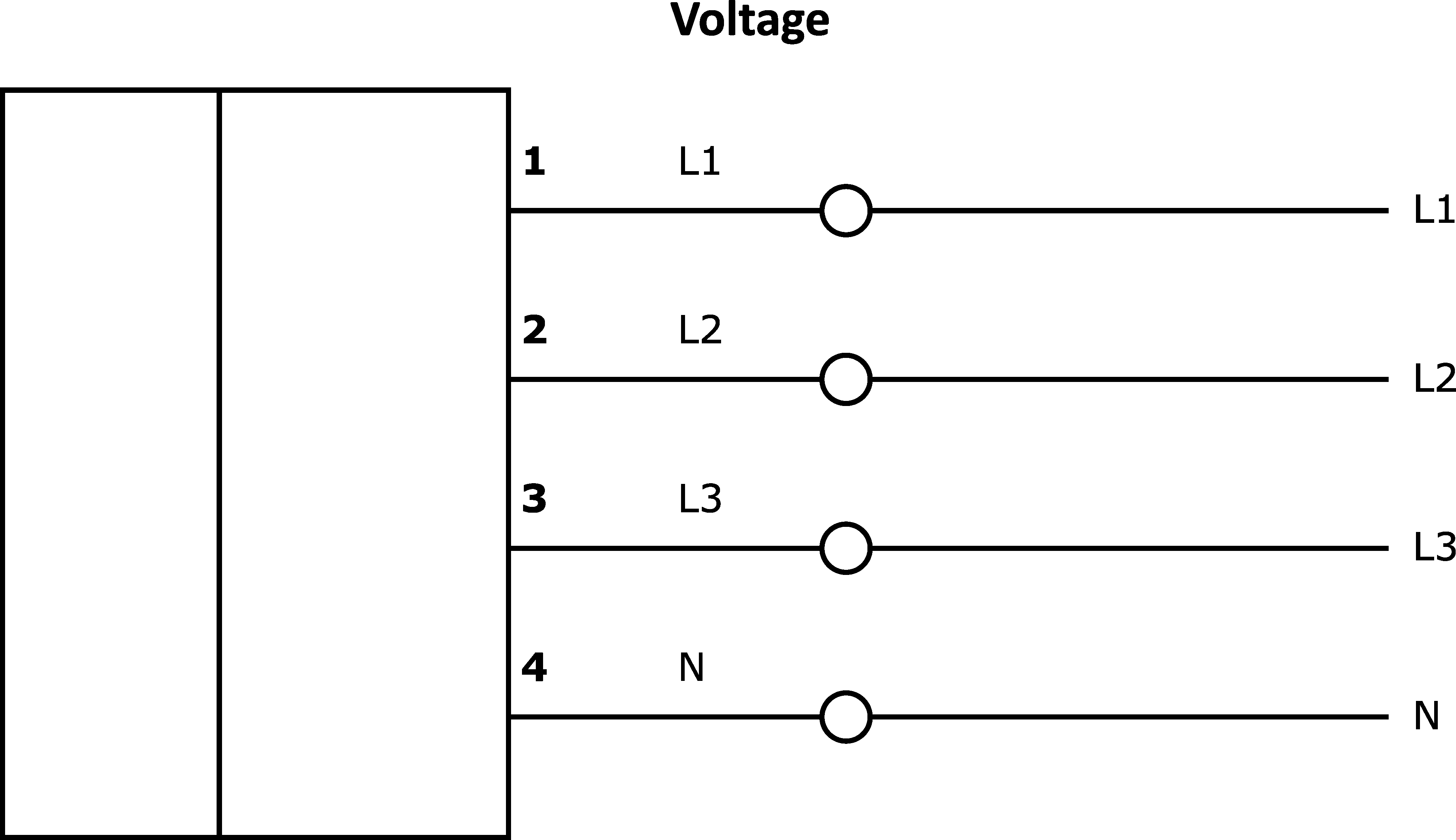

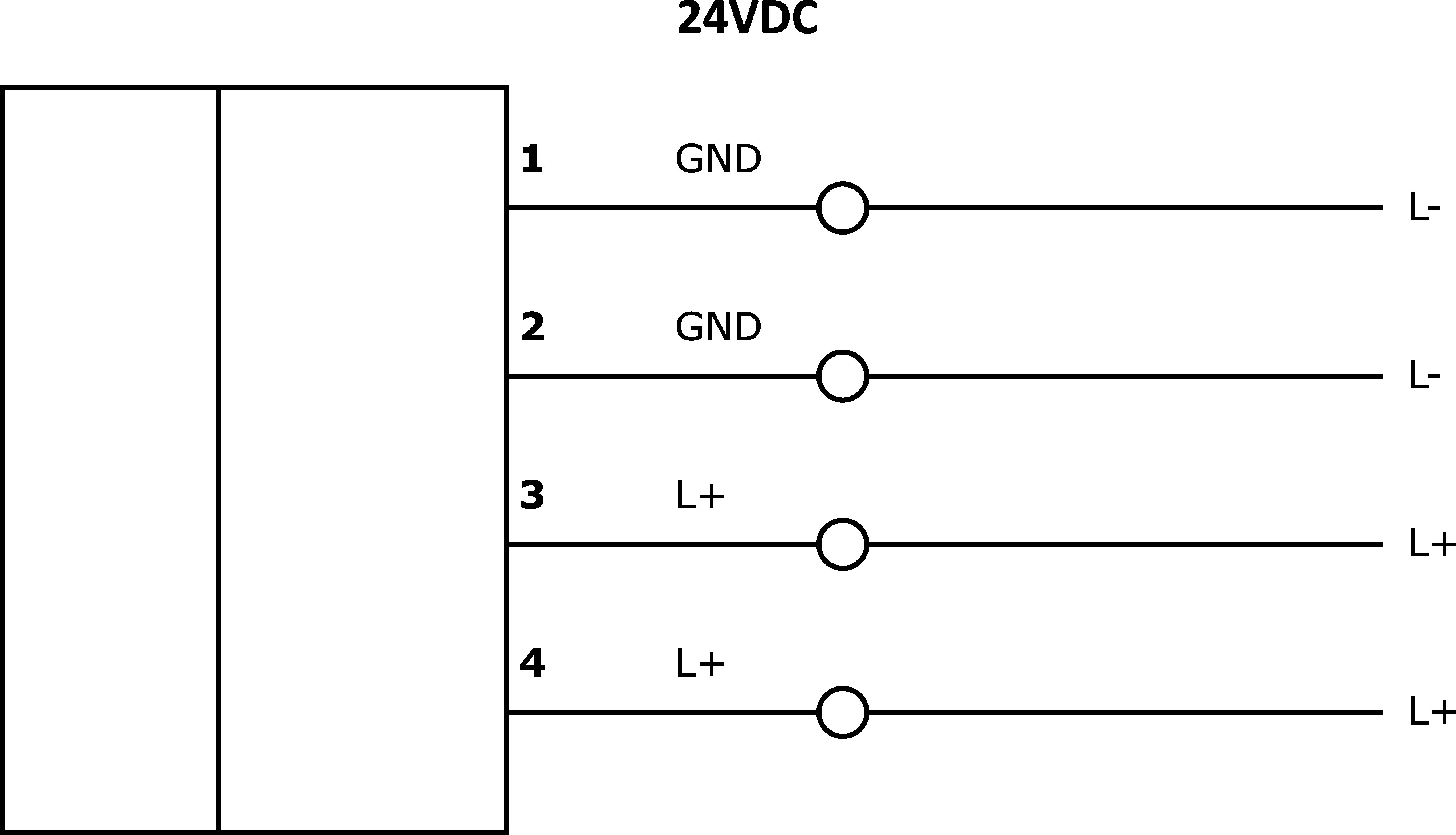

circuit diagram
dimensional drawing
3D model
Compare

Process Data Analysis - Accessories

Active, reactive, and apparent power; energy; root-mean-square (RMS) current and voltage; power factor;

Total Harmonic Distortion (THD)

Electrical properties

Power consumption
5VA
RAM
1GBD DDR3L RAM, 8GB eMMC
Processor
NXP® i.MX 6ULL
Supported communication interface
Modbus TCP, MQTT, OPC UA
Display
LED display
Operating voltage
22-26VDC

Mechanical properties

Height
139mm
Length
109mm
Storage temperature
-40 - 85°C
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Nylon 6 with 30% glass fibers
dimensions
139mm high

Other properties

Relative air humidity (non-condensing)
20 - 90%
Ambient temperature
0 - 50°C
Classification Class
eClass-7.0 27143190
eClass-7.1 27143190
eClass-8.0 27143190
eClass-9.0 27143154
eClass-9.1 27143154
ETIM-6.0 EC001099
ETIM-7.0 EC001099
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 735 Gateway and accessories
packaging dimensions 175 x 45 x 225mm
gross weight 247g
1,66kg CO₂e
Customs tariff number 85437090
WEEE number 40951076
