DISCONTINUED PRODUCT

AO000530

AO000530
Successor model: EE1G0171
Compare

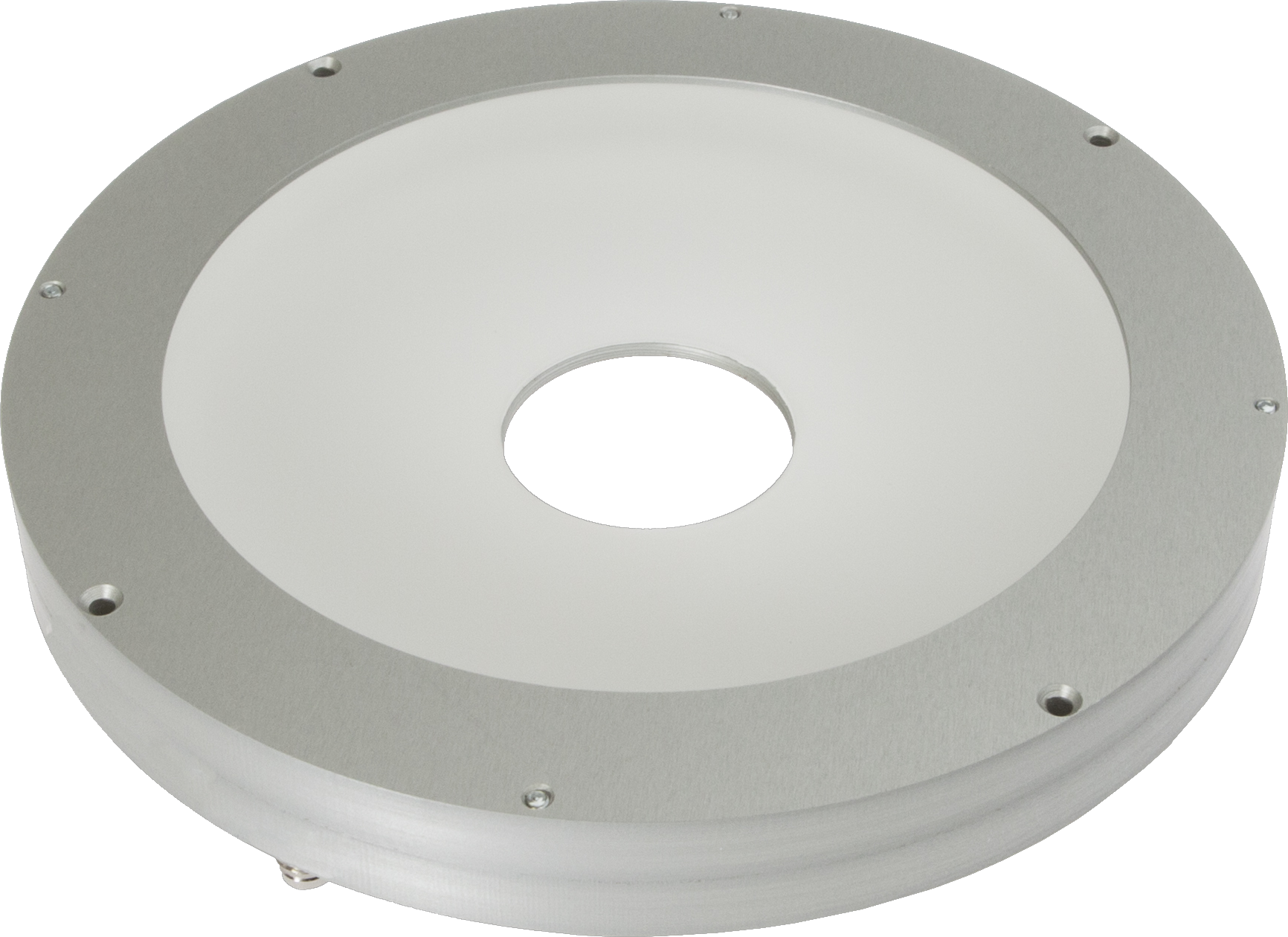

LED dome light, Ø172mm, white light, 12.48W, 6500K, 24V diagnostic coverage, M8 connector 4-pin, IP00, aluminum
circuit diagram

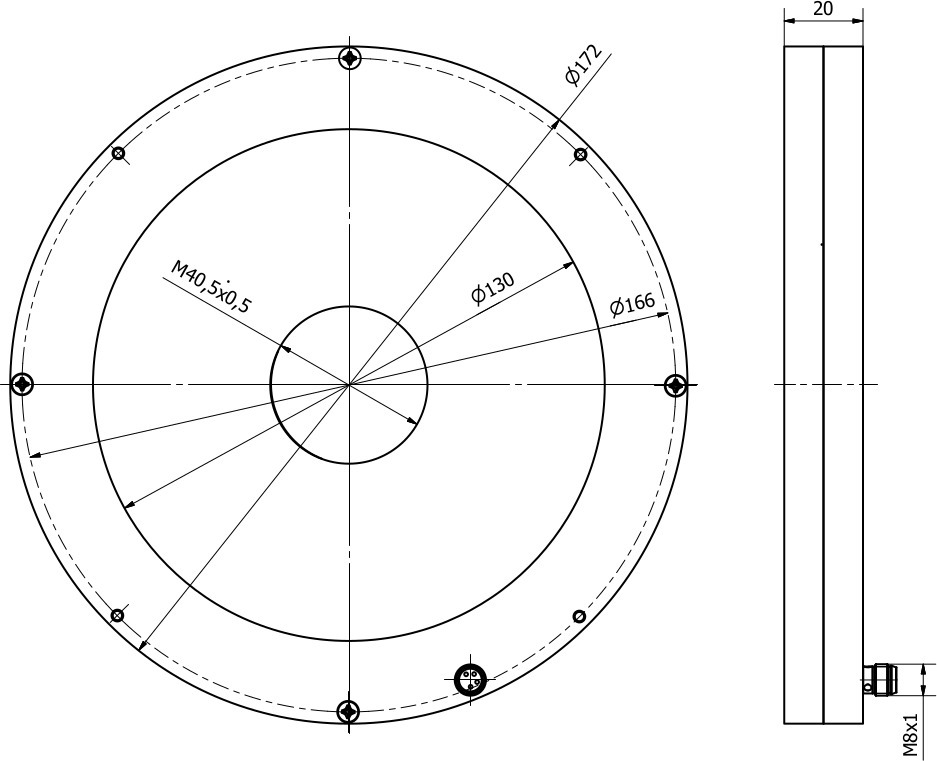

dimensional drawing
3D model
Compare

camera additional lighting - dome lights

For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.

Electrical properties

Type of electrical connection
Connector M8
Rated operating current
520mA
Flash controller
No
Power
12.48W
Max. peak current
4,000mA
Number of pins
4
Protection class
III
Flash duration
1 - 1,000µs
Operating voltage
Electrical connection

Mechanical properties

Design
Round
Light field width
130mm
Height
20mm
Inner diameter
40mm
Degree of protection (IP)
IP00
Front screen scattering behavior
clear
Housing material
Aluminum
Diameter
172mm

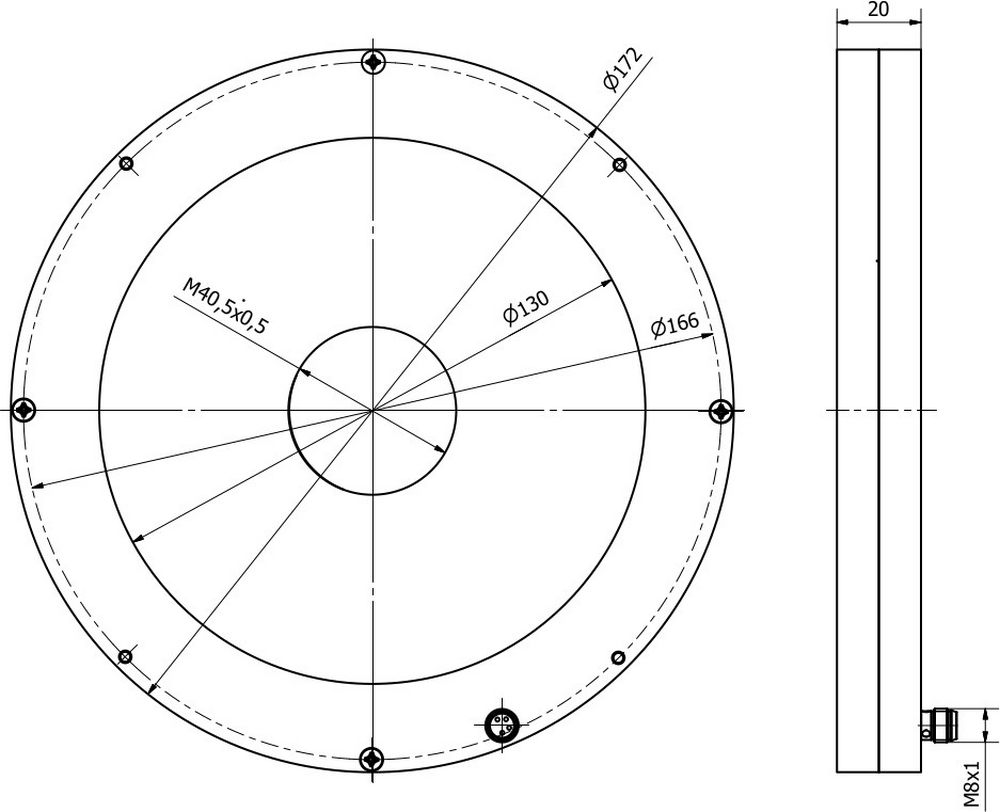

dimensions

Optical properties

Risk group
0
Number of LEDs
128
Color temperature
6,500K
Lamp
LED
Light source
White light
Angle of beam spread
120°

Other properties

Ambient temperature
10 - 50°C
Operational mode
Flash operation, Permanent operation, Switching operation
